Phone Adapter with 2 Ports for Voice-over-IP
4
Chapter 2: Getting to Know the Phone Adapter
The Front Panel
The Front Panel
The Phone Adapter’s LEDs are located on the front panel.
PHONE 1 LED Blue. The PHONE 1 LED is solidly lit when a telephone or fax machine has a registered
connection to Vonage through the PHONE 1 port. (The connection is registered if your
Internet phone service account is active.) It flashes when the phone is being used or an
incoming call has been detected.
PHONE 2 LED Blue. The PHONE 2 LED is solidly lit when a telephone or fax machine has a registered
connection to Vonage through the PHONE 2 port. It flashes when the phone is being used or
an incoming call has been detected.
ETHERNET LED Blue. The ETHERNET LED lights up when the Phone Adapter is connected to your network
through the Ethernet port. It flashes when there is data being sent or received.
Power LED Blue/Red. The Power LED lights up when the Phone Adapter is powered on and ready. It
flashes when the Phone Adapter is booting up, undergoing a self-test, or performing a
firmware upgrade. The LED lights up red when the Phone Adapter has failed its self-test or
is malfunctioning. Refer to “Appendix A: Troubleshooting” for more information.

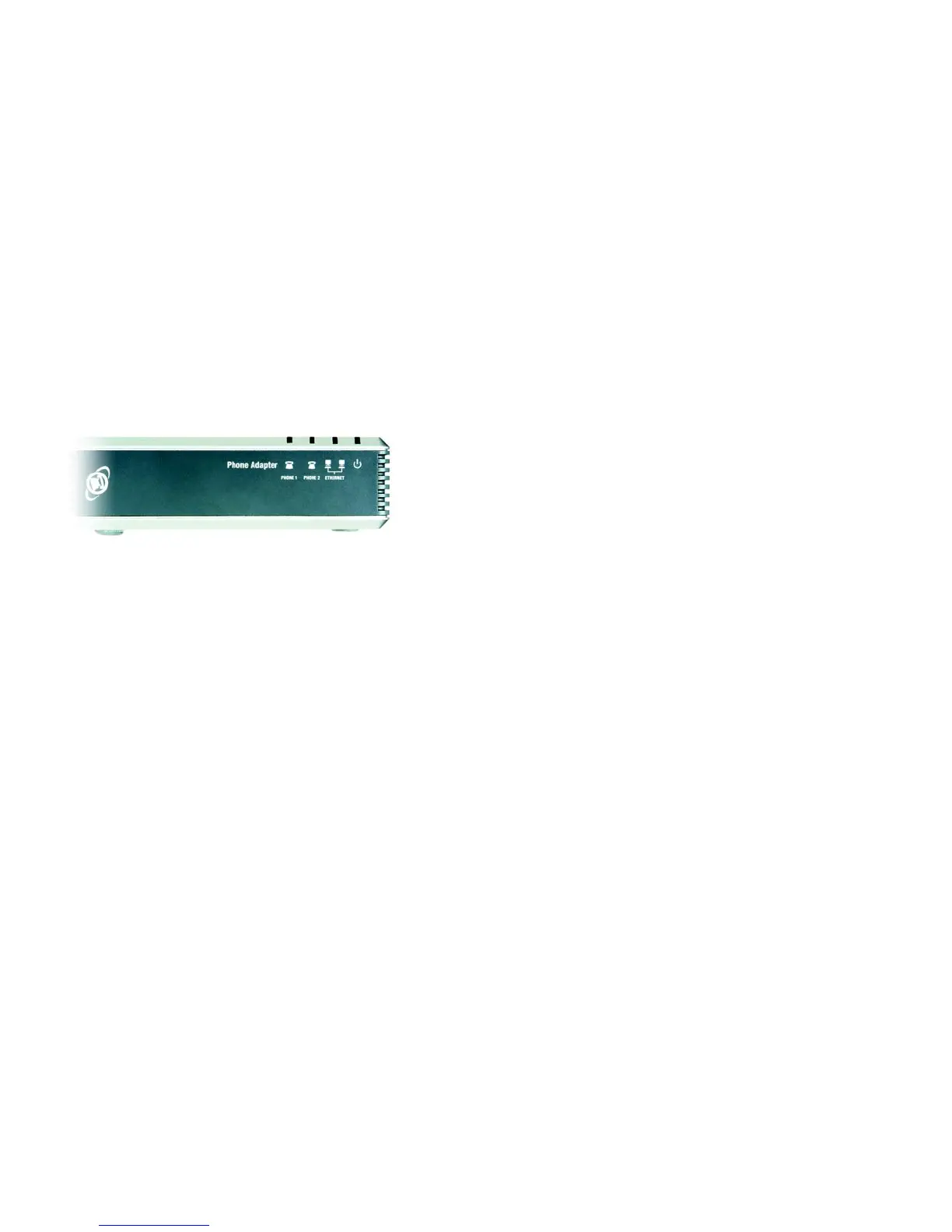

Figure 2-2: Front Panel
