Phone Adapter with 2 Ports for Voice-over-IP
8
Chapter 3: Connecting the Phone Adapter
Placement Options
Wall-Mount Option
The Phone Adapter has two wall-mount slots on its back panel. The distance between the two slots is 58 mm
(2.28 inches).
1. Determine where you want to mount the Phone Adapter.
2. Drill two holes into the wall. Make sure the holes are 58 mm (2.28 inches) apart.
3. Insert a screw into each hole, and leave 5 mm (0.2 inches) of its head exposed.
4. Maneuver the Phone Adapter so the wall-mount slots line up with the two screws.
5. Place the wall-mount slots over the screws and slide the Phone Adapter down until the screws fit snugly into
the wall-mount slots.
Congratulations! The installation of the Phone Adapter is complete.
If you need to change any of the Phone Adapter’s network settings, proceed to “Chapter 4: Using the
Phone Adapter’s Interactive Voice Response Menu.”

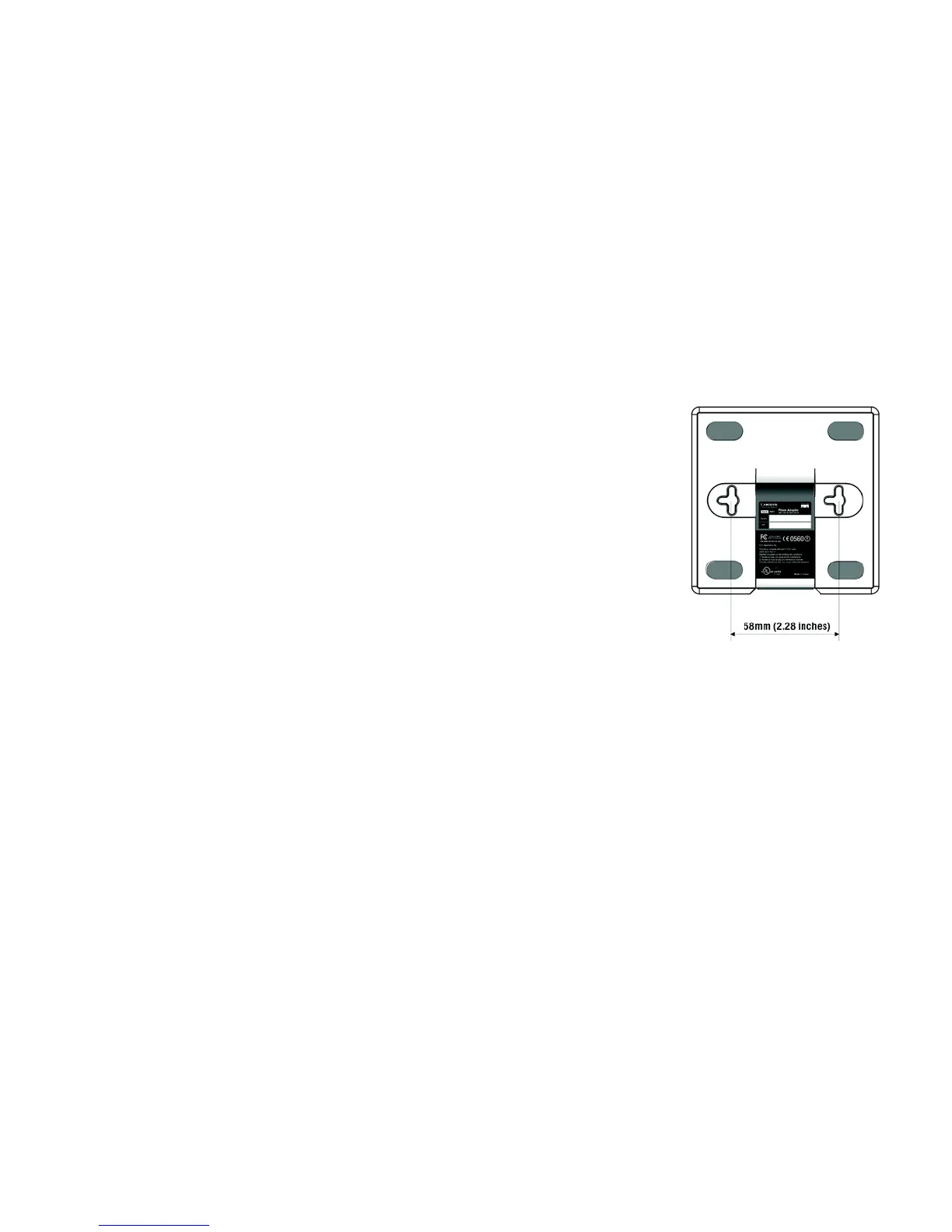

Figure 3-7: Measurement between
Wall-Mount Slots
