Chapter 2: Getting to Know and Connecting the Compact USB 2.0 10/100 Network Adapter
The Ports and LEDs
Compact USB 2.0 10/100 Network Adapter
Chapter 2: Getting to Know and Connecting the Compact
USB 2.0 10/100 Network Adapter
The Ports and LEDs
The Ports
USB Port The USB port is a Type A connector. Connect the USB extension cable from your PC or hub to
this port.
Ethernet Port The Ethernet port connects the Adapter to a Category 5 Ethernet network cable.

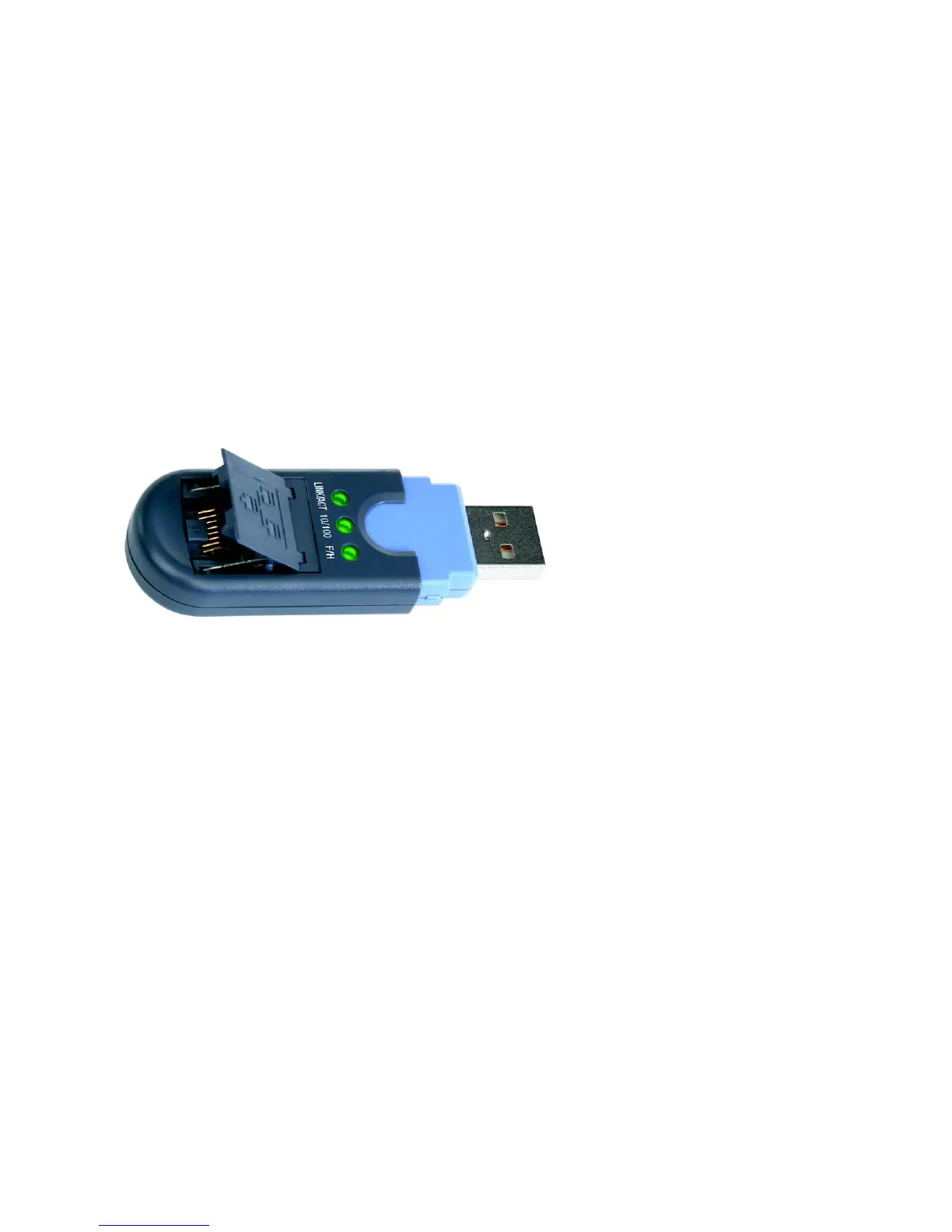

Figure 2-1: Ports and LEDs
