Chapter 5: Configuring the Wireless-N Gigabit Router with Storage Link
The Status Tab - Local Network
Dual-Band Wireless-N Gigabit Router with Storage Link
For PPoE, PPTP, L2TP, and Telstra Cable Internet Connection types, a connect and disconnect button will be
available to establish a connection to your ISP.
Click the Refresh button to update the on-screen information. For more information, click Help.
The Status Tab - Local Network
The Local Network screen displays information about the local network.
Local Network
MAC Address. The MAC Address of the Router’s local interface is displayed here.
Router IP Address. This shows the Router’s IP address, as it appears on your local network.
Subnet Mask. The Router’s Subnet Mask is shown here.
DHCP Server. The status of the Router’s DHCP server function is displayed here.
Start IP Address. For the range of IP addresses used by devices on your local network, the beginning IP address
is shown here.
End IP Address. For the range of IP addresses used by devices on your local network, the ending IP address is
shown here.
DHCP Client Table. Click the DHCP Clients Table button to view the DHCP Client Table. It lists computers and
other devices that have been assigned IP addresses by the Router. The list can be sorted by Client Name,
Interface, IP Address, MAC Address, and Expired Time (how much time is left for the current IP address). To
remove a DHCP client, click the Delete button. To retrieve the most up-to-date information, click the Refresh
button. To exit this screen and return to the Local Network screen, click the Close button.
For more information, click Help.

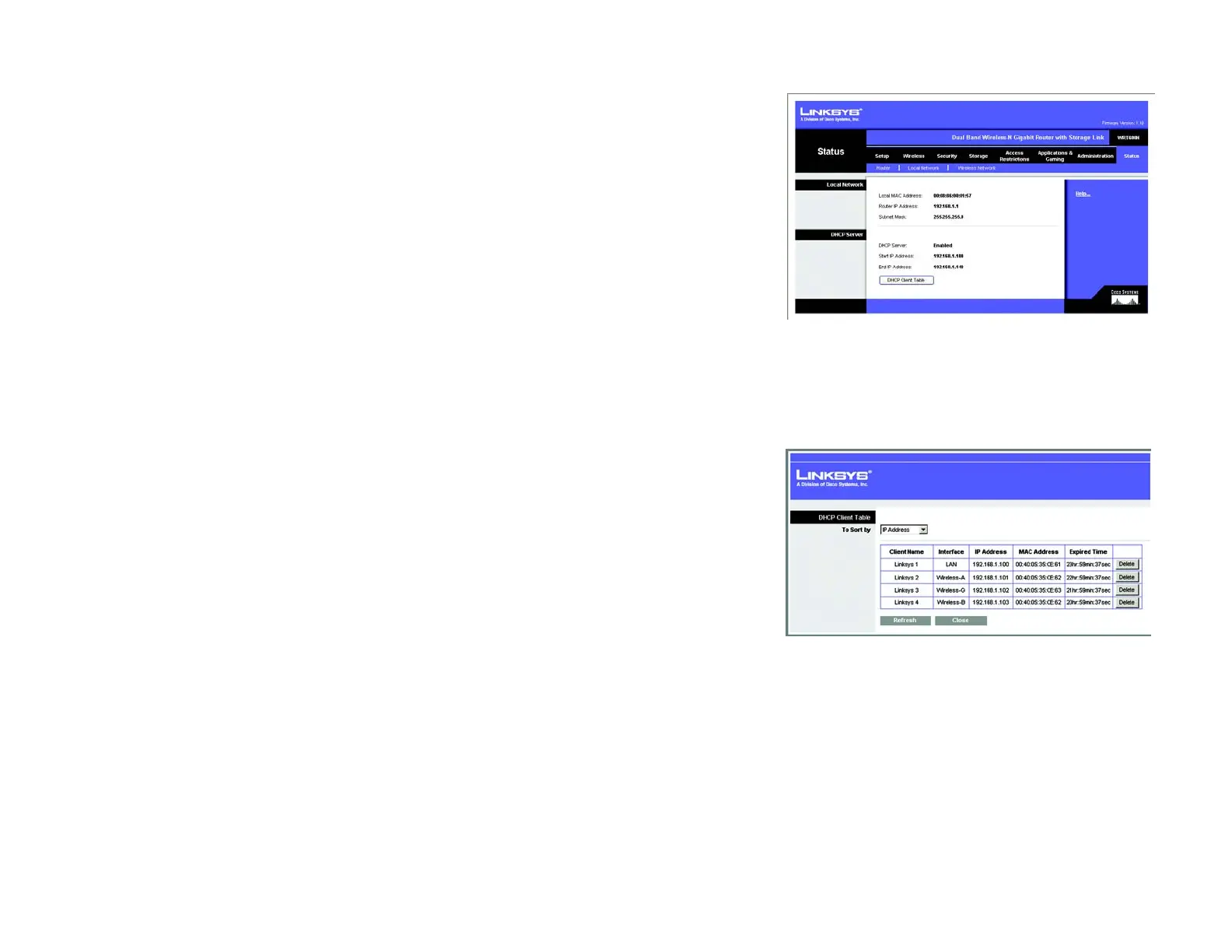

Figure 5-58: Status Tab - Local Network
Figure 5-59: DHCP Client Table
