Capítulo 3: Conhecendo
o Adaptador de rede USB Wireless-N
Base de extensão USB
Adaptador de rede USB Wir
eless-N
Base de extensão USB
É fornecida uma Base de extensão USB para proporcionar um acesso fácil à porta USB
. A Base de extensão USB
é conectada à porta USB do PC, e o Adaptador é conectado à Base
.

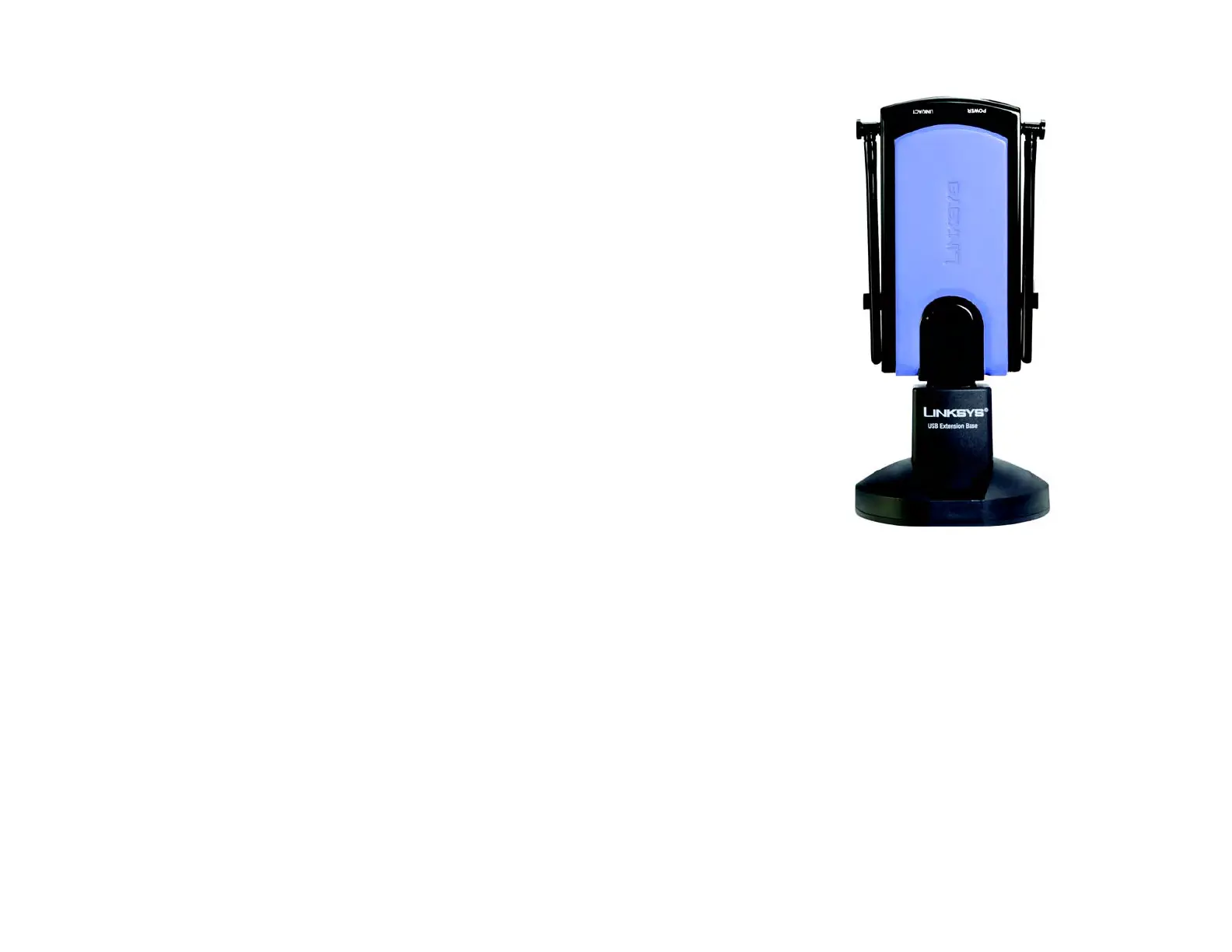

Figura 3-2: Base de extensão USB
