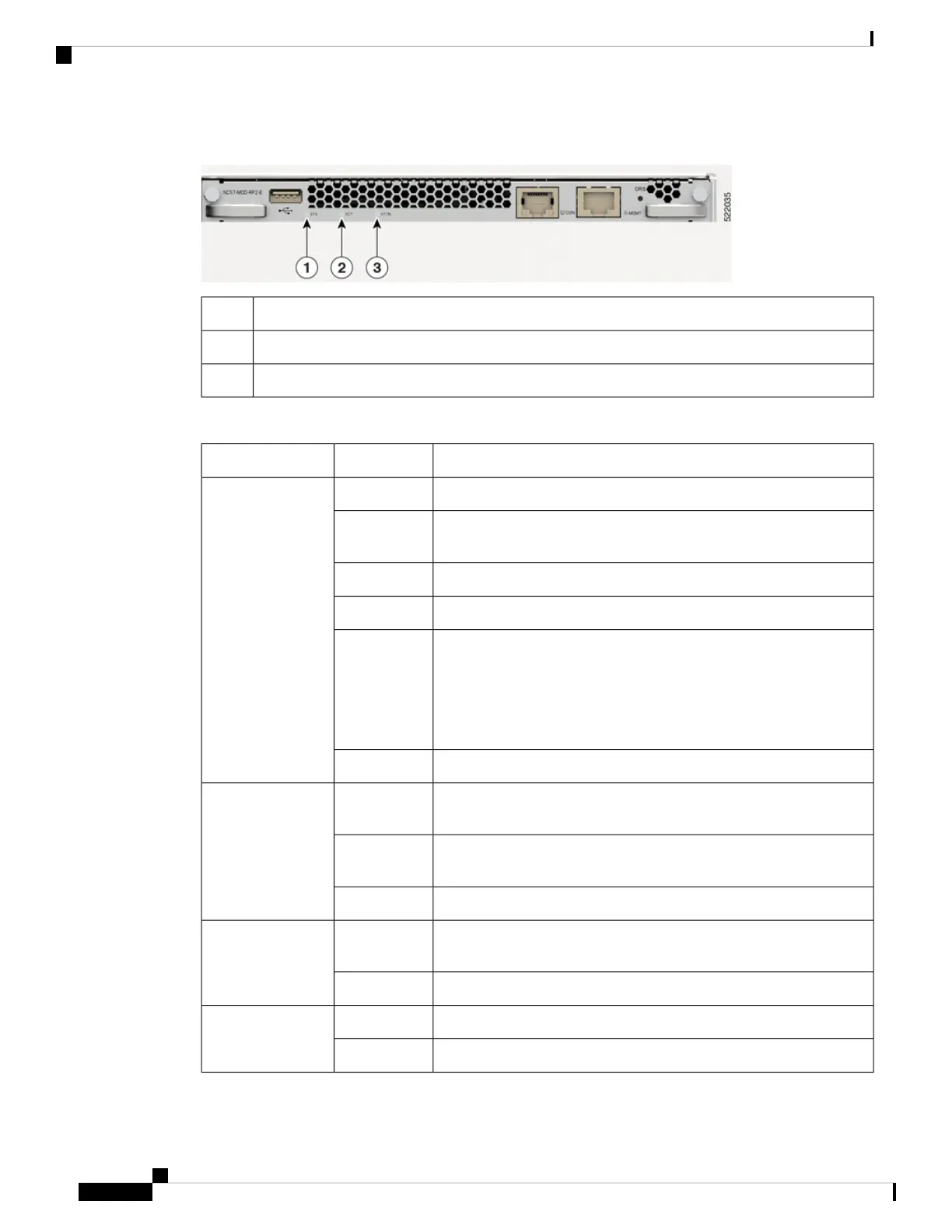

Figure 79: NC57-MOD-RP2-E LEDs
STS (Status) LED1
ACT (Active) LED2
Attention (ATTN) LED3
Table 15: Route Processor Card LED Descriptions
StatusColorLED
This module is operational.GreenSTS (Status)
The module is booting up or shutting down.Flashing
amber
The module has active major or critical alarms.Flashing red
Host kernel booted and is ready to start System Administrator VM.Amber
Either of the following conditions:
• The module has detected a slot ID parity error and will not power
on or boot up.
• The module is not fully inserted.
Red
The module is not receiving power.Off
XR VM is operational and is in the active redundancy role on this
module.
GreenACT (Active)
XR VM is operational and is in the standby redundancy role on this
module.
Amber
XR VM is not operational on this module.Off
The operator has activated this LED to identify this module in the
chassis.
Flashing blueATTN (Attention)
This module is not being identified.Off
The management port is linked up.
GreenManagement port
LINK
The management port is not linked up.Off
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
104
LEDs
Route Processor Card LEDs
