1-45
Cisco Nexus 5000 Series Hardware Installation Guide
Chapter 1 Overview
Cisco Nexus 5000 Platform Switches
See Figure 1-38 for an illustration of how ports are grouped and numbered on the Ethernet expansion
module.
N5K-M1008 Generic Expansion Module
The N5K-M1008 GEM supports eight 4-, 2-, or 1-Gbps Fibre Channel, SFP-based uplink connections.
Figure 1-48 shows the features used to install this module and Figure 1-49 shows how the ports are
numbered.

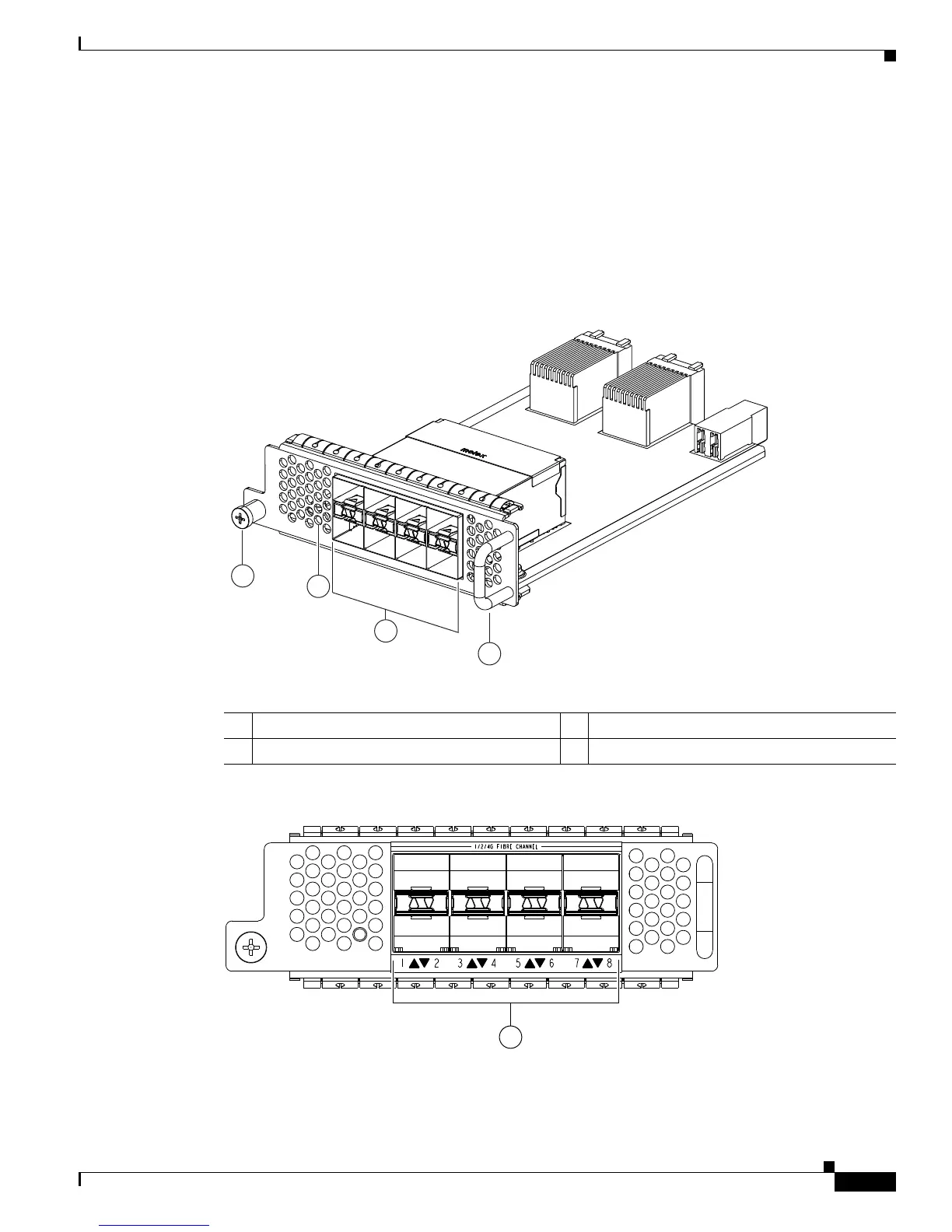

Figure 1-48 N5K-M1008 GEM
Figure 1-49 Front View of the N5K-M1008 GEM
239171
1
2
3
4
1 Captive screw 3 Eight 4-, 2-, or 1-Gbps Fibre Channel ports
2 Status LED 4 Handle
239172
1
2
3
4
5
6
7
8
1
