Cisco Nexus 5000 Platform Switches
N5K-M1060 Generic Expansion Module
The N5K-M1060 expansion module provides six 8-, 4-, 2-, or 1-Gbps line rate Fibre Channel, SFP+

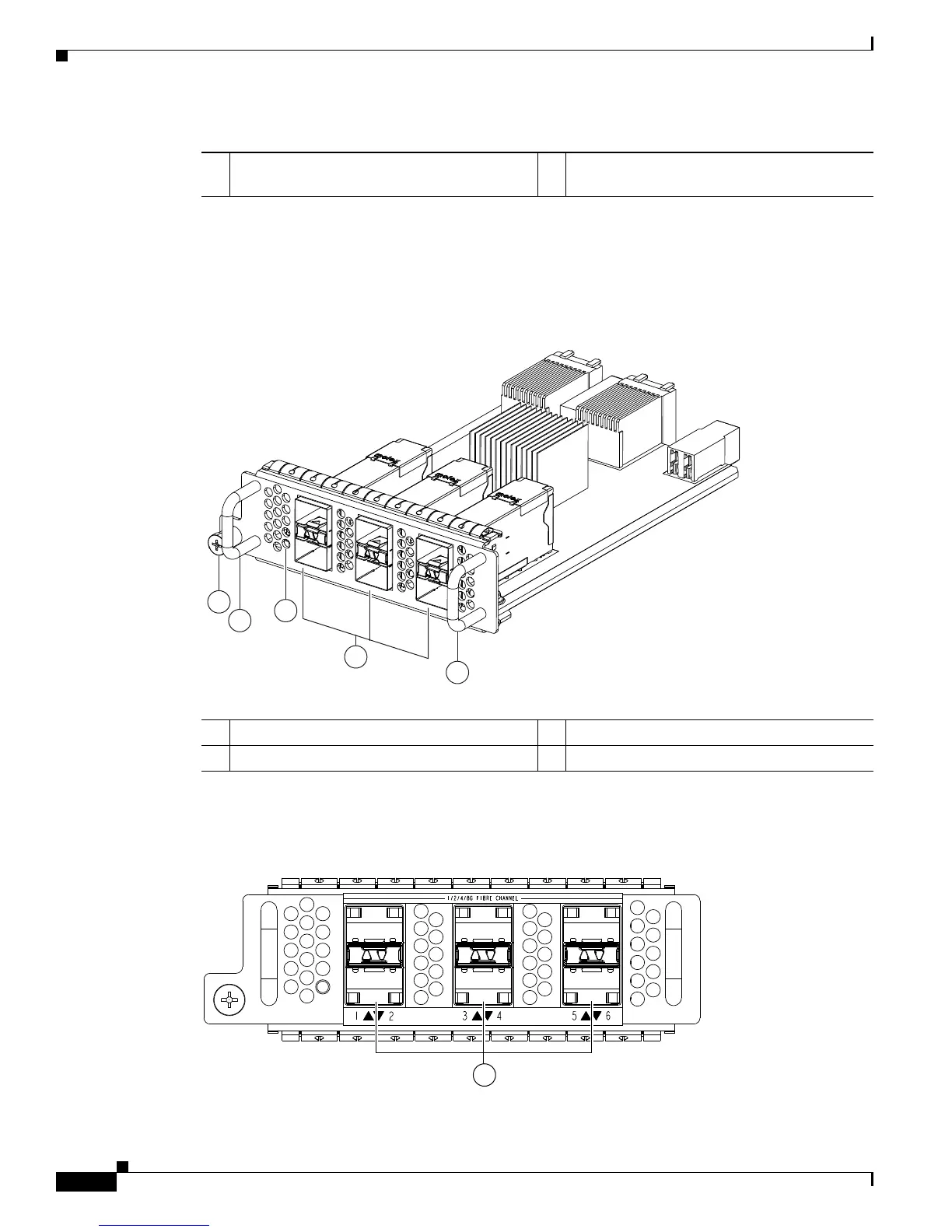

based uplink connections. Figure 1-50 shows this module and the features used to install it.
Figure 1-50 N5K-M1060 GEM
Figure 1-51 shows how the ports are numbered on this module.
Figure 1-51 Front of the N5K-M1060 GEM
1 Port numbering (odd numbered ports on top
and even numbered ports on bottom)
239174
1
2
3
4
4
1 Captive screw 3 Six 8-, 4-, 2-, or 1-Gbps Fibre Channel ports
2 Status LED 4 Handle
239173
1/2/4/8G FIBRE CHANNEL
1
2
3
4
5
6
1
