Cisco Quad Camera User Manual

Cisco Quad Camera, Precision 60, SpeakerTrack 60 and PTZ-12 Camera
D15296.10 Cisco Quad Camera, Precision 60, SpeakerTrack 60, and PTZ-12 Camera SEPTEMBER 2019.
Copyright © 2019 Cisco Systems, Inc. All rights reserved.
14
Camera guide

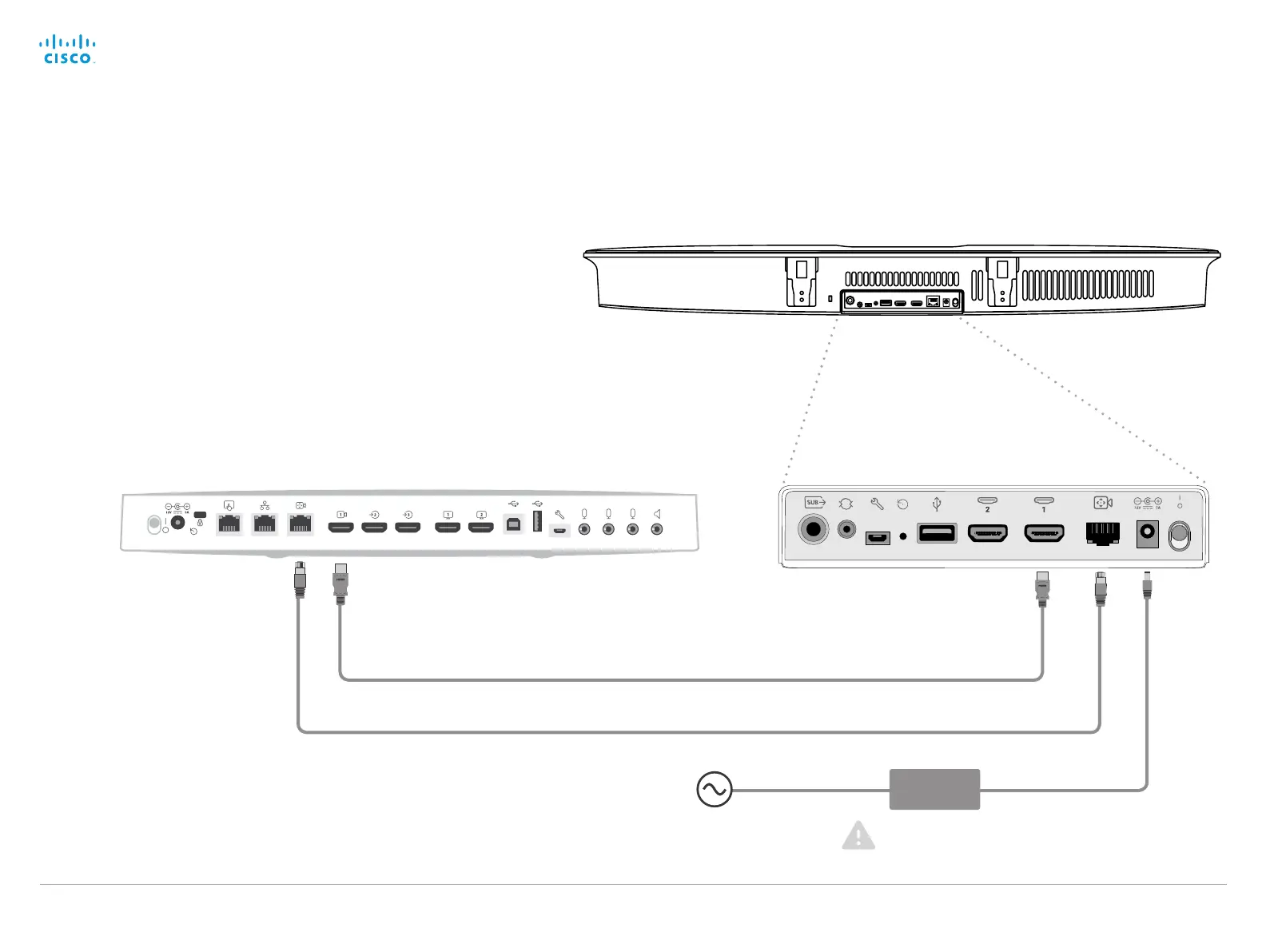

Connect Quad Camera to Codec Plus
• Connect the HDMI cable between the camera and the codec. The
cable transmits video from the camera to the codec, and audio
from the codec to the loudspeakers in the camera (Audio Return
Channel - ARC).
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to connector 1 (HDMI output).
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec. The connectors are
marked with the camera control symbol.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco Webex
Room Kit Plus installation guide.
RJ45 HDMI
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
Always use the provided power cable
and adapter.
Contents
Introduction
Physical interface
Connecting to a codec
Appendix
Factory reset
Connecting to a codec
