Cisco Quad Camera User Manual

Cisco Quad Camera, Precision 60, SpeakerTrack 60 and PTZ-12 Camera
D15296.10 Cisco Quad Camera, Precision 60, SpeakerTrack 60, and PTZ-12 Camera SEPTEMBER 2019.
Copyright © 2019 Cisco Systems, Inc. All rights reserved.
18
Camera guide

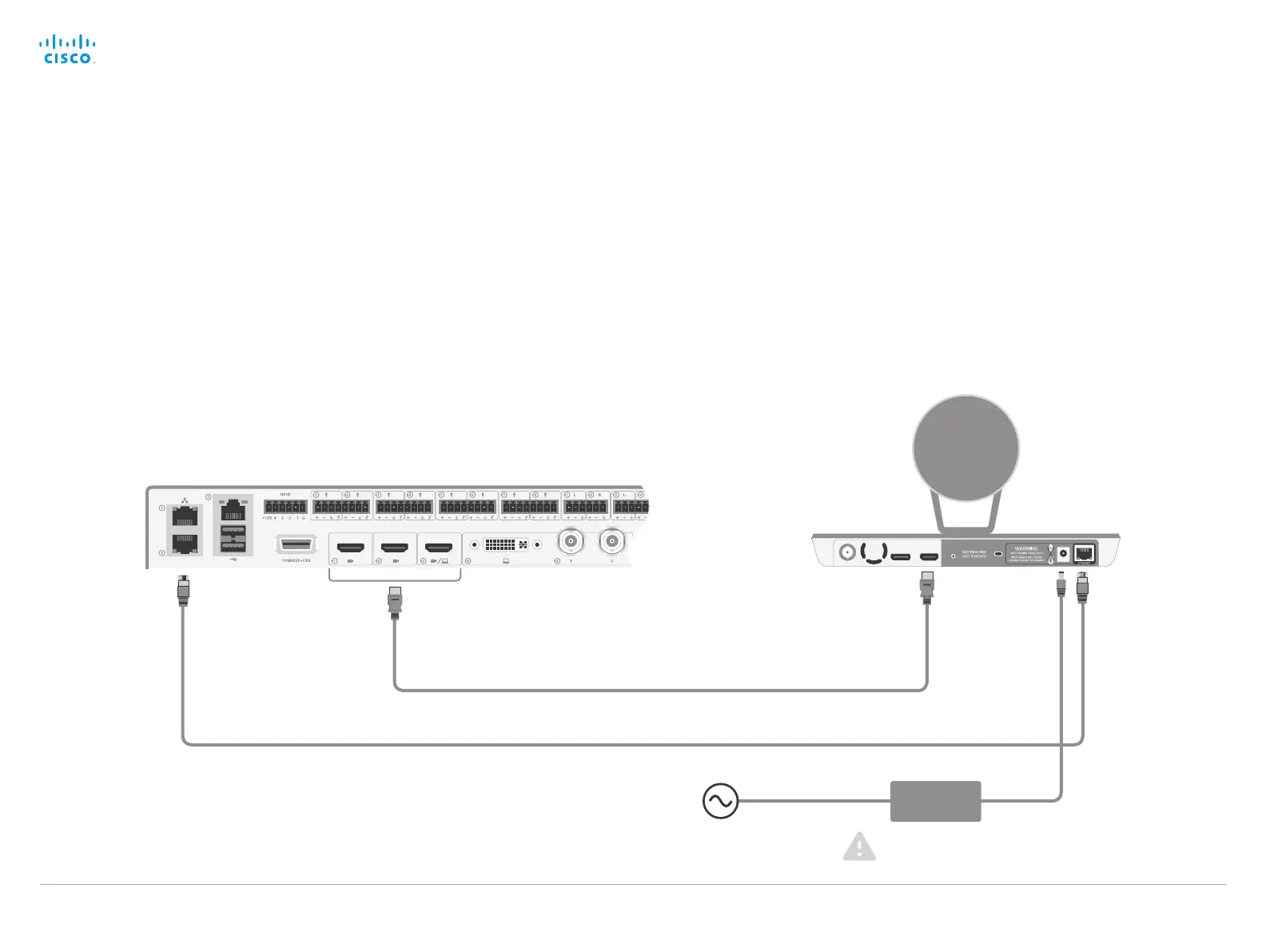

Connect Precision 60 to SX80 Codec
• Connect the video cable (HDMI) between the camera and codec.
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to the HDMI output.
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec.
Codec: The connector is marked with the camera control symbol.
Camera: Connect to the Ethernet port.
• Connect a network switch to the codec’s 2nd or 3rd Ethernet port
if you need more than two ports to support your device.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco
Telepresence SX80 installation guide.
RJ45 HDMI
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
Always use the provided power cable
and adapter.
Contents
Introduction
Physical interface
Connecting to a codec
Appendix
Factory reset
