Cisco Quad Camera User Manual

Cisco Quad Camera, Precision 60, SpeakerTrack 60 and PTZ-12 Camera
D15296.10 Cisco Quad Camera, Precision 60, SpeakerTrack 60, and PTZ-12 Camera SEPTEMBER 2019.
Copyright © 2019 Cisco Systems, Inc. All rights reserved.
16
Camera guide

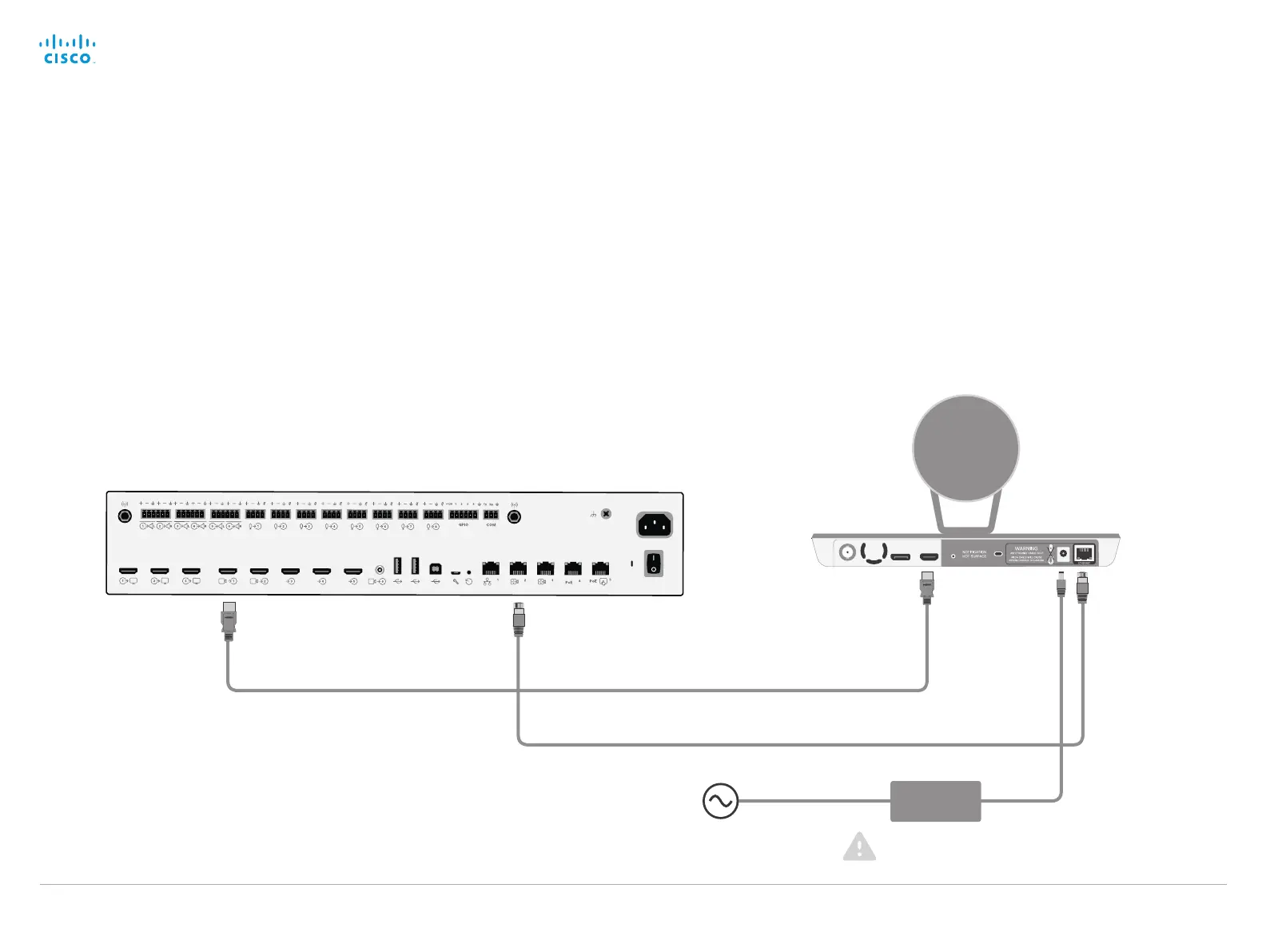

Connect Precision 60 to Codec Pro
• Connect the video cable (HDMI) between the camera and codec.
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to the HDMI output.
• If you use a coaxial cable for video, you will need a BNC to
HD-BNC cable or a BNC to HD-BNC adapter to connect the
Precision 60 (BNC) to the Codec Pro (HD-BNC).
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec.
Codec: The connector is marked with the camera control symbol.
Camera: Connect to the Ethernet port.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco Webex
Room Kit Pro Precision 60 installation guide.
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
Always use the provided power cable
and adapter.
