Camera guide

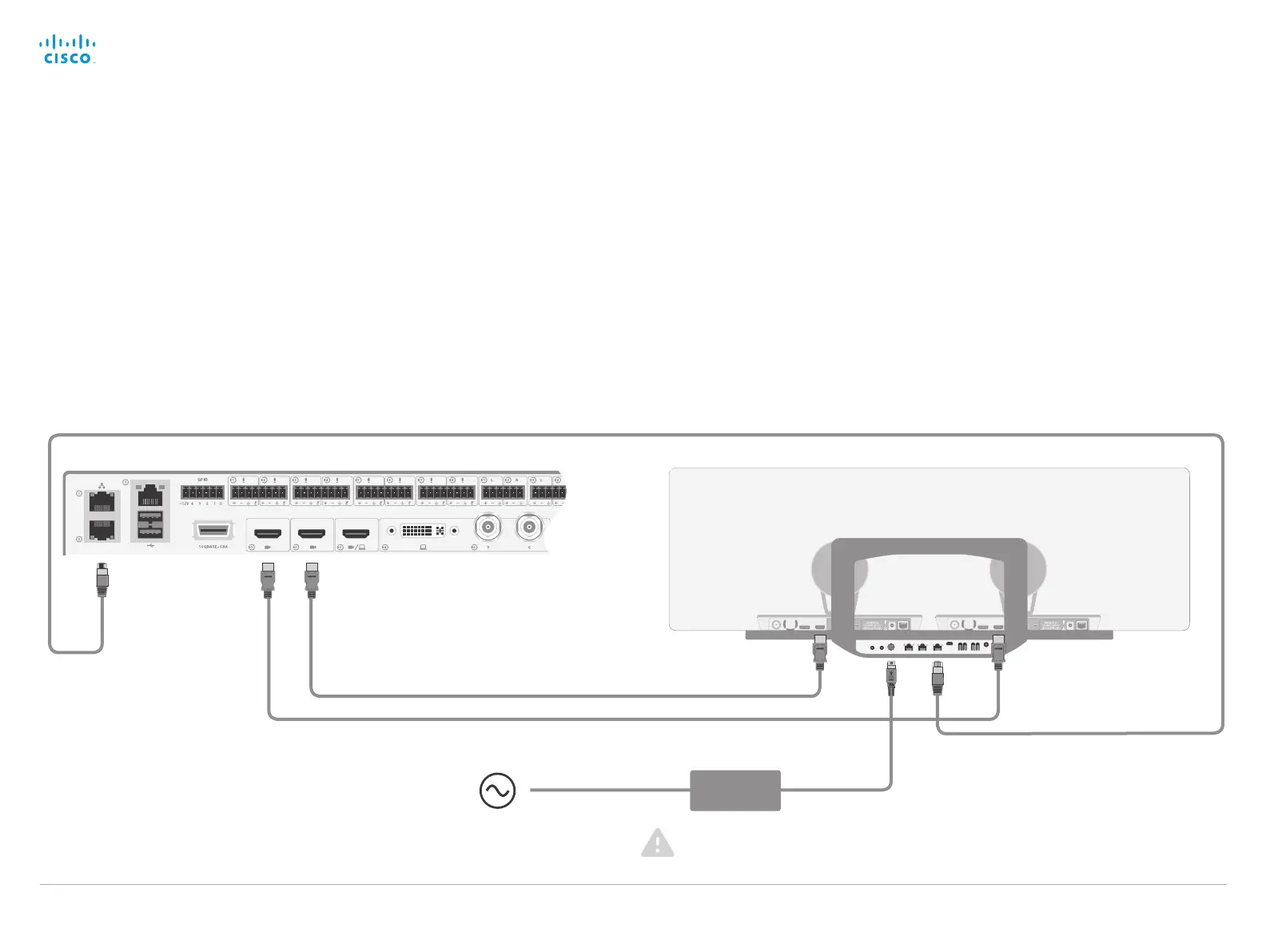

Connect SpeakerTrack 60 to SX80 Codec
Power
(100-240 V
AC
, 50/60 Hz)
Always use the provided power cable
and adapter.
Power
adapter
RJ45
HDMI 1 HDMI 2
• Connect the video cables (HDMI).
Left camera: Connect between Connector 1 (HDMI input) on the
codec to the HDMI input of the left camera.
Right camera: Connect between Connector 2 (HDMI input) on the
codec to the HDMI input of the right camera.
• Connect the camera control cable (Ethernet). Connect between
the codec’s 2nd or 3rd Ethernet port to the Network port
(Ethernet) on the SpeakerTrack 60 connector panel.
• Connect the power adapter to the SpeakerTrack 60 connector
panel and connect to power.
• Connect other codec cables as described in theCisco
Telepresence SX80 installation guide.
Right Left
