Cisco Quad Camera, Precision 60, SpeakerTrack 60 and PTZ-12 Camera
D15296.10 Cisco Quad Camera, Precision 60, SpeakerTrack 60, and PTZ-12 Camera SEPTEMBER 2019.
Copyright © 2019 Cisco Systems, Inc. All rights reserved.
19
Camera guide

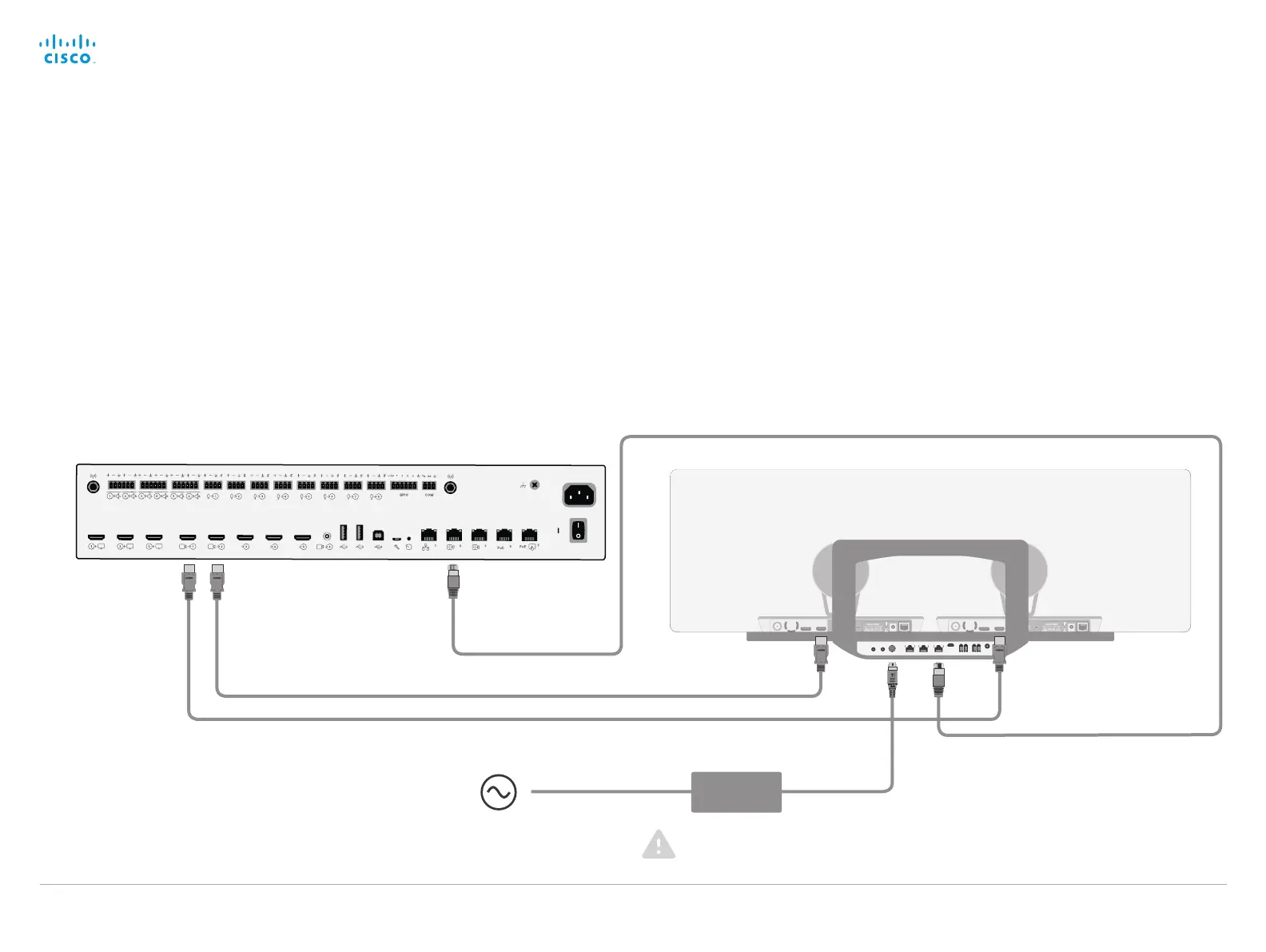

Connect SpeakerTrack 60 to Codec Pro
Power
(100-240 V
AC
, 50/60 Hz)
Always use the provided power cable
and adapter.
Power
adapter
RJ45 HDMI 2
• Connect the video cables (HDMI).
Left camera: Connect between Connector 1 (HDMI input) on the
codec to the HDMI input of the left camera.
Right camera: Connect between Connector 2 (HDMI input) on the
codec to the HDMI input of the right camera.
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec.
Codec: The connector is marked with the camera control symbol.
Camera: Connect to the Ethernet port.
• Connect the power adapter to the SpeakerTrack 60 connector
panel and connect to power.
• Connect other codec cables as described in theCisco Webex
Codec Pro installation guide.
HDMI 1
Right Left
