Camera guide

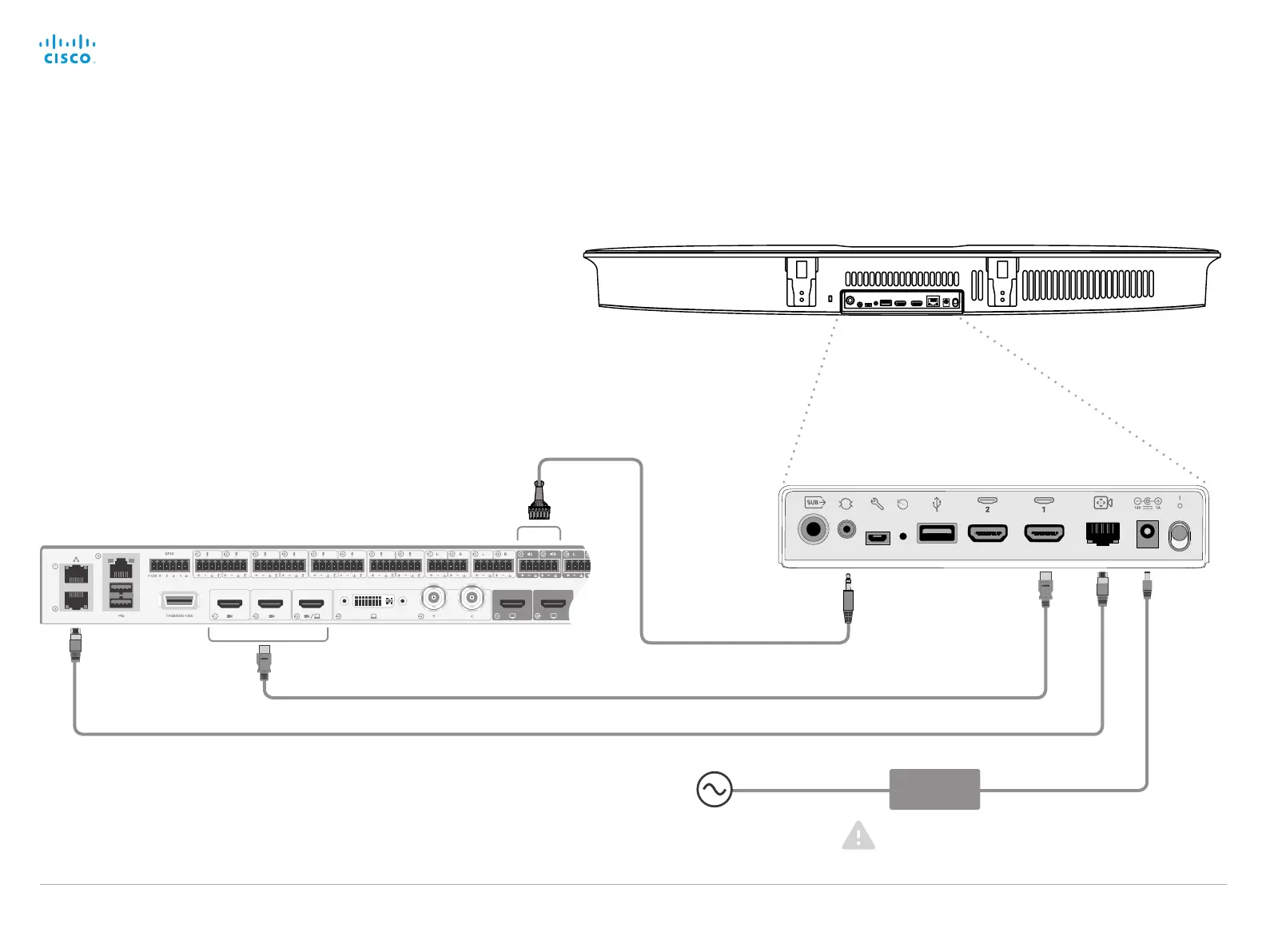

Connect Quad Camera to SX80 Codec
• Connect the HDMI cable between the camera and the codec. The
cable transmits video from the camera to the codec.
Codec: Always use Connector 1 (HDMI input) for the main camera.
Camera: Connect to connector 1 (HDMI output).
• Connect the camera control cable (Ethernet) between the camera
control ports on the camera and codec.
Codec: Connect to the codec’s 2nd or 3rd Ethernet port.
Camera: The connector is marked with the camera control symbol.
Connect a network switch to the codec’s 2nd or 3rd Ethernet port
if you need more than two ports to support your device.
• Connect the audio cable between the loudspeaker output on the
codec and the line input on the Quad Camera. The cable trans-
mits audio from the codec to the loudspeakers in the camera.
• Connect the power adapter to the camera and connect to power.
• Connect other codec cables as described in theCisco
TelePresence SX80 Integrator Package with Quad Camera
Installation Guide.
RJ45 HDMI
Power
(100-240 V
AC
, 50/60 Hz)
Power
adapter
Always use the provided power cable
and adapter.
3.5 mm
mini-jack,
3-pin
3.5 mm
Euroblock
