Camera guide
P T Z-12 Ca m e r a
Video
• HDMI is the main video source. The maximum resolution is
1080p60.
Power
• Power rating: 12 V
DC
, 1.4 A.
• Always use the provided cables and power adapter (12V
DC
,
JEITA type4). Do NOT use any other AC power adaptor.
Ethernet
For camera control.
Factory reset
A factory reset should only be performed by a system adminis-
trator or in contact with Cisco technical support.
For more information about the PTZ-12 setup, refer to the
 Cisco Webex Room Kit Plus PTZ-12 installation guide
Not in use
HDMI video
connector
Ethernet
Camera
control
Power input
Factory reset

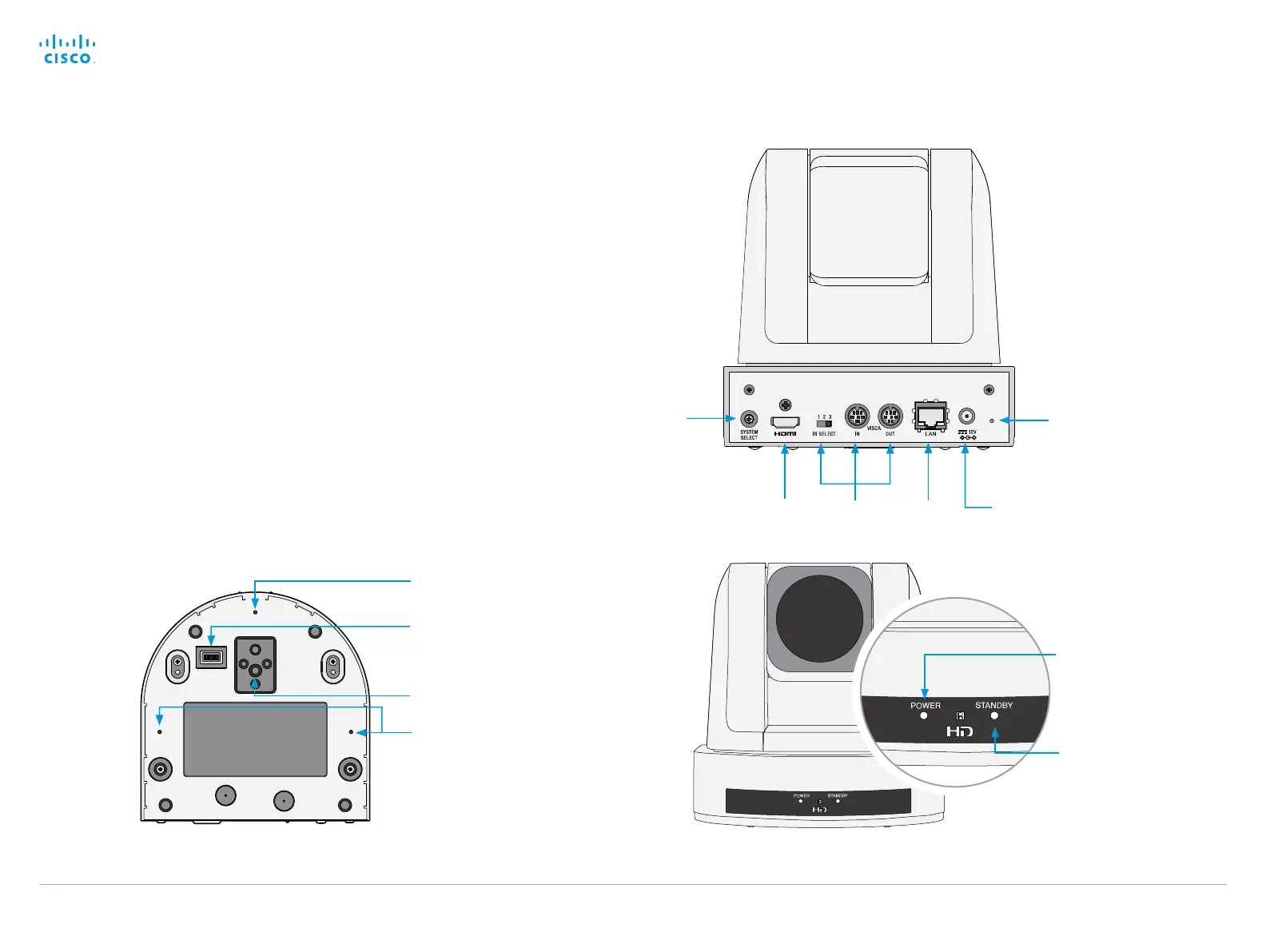

Screw holes (for
camera mounting)
Screw holes (for
camera mounting)
VISCA/LAN switch
(Switch 1: on; Switch
2-8: OFF)
Tripod (for camera
mounting)
The LED is green when the
power is On. The LED is
off when the system is on
standby mode.
The LED is amber
when the camera is on
standby mode.
Bottom view
Not in use
