4 Cisco RV130/RV130W Mutlifunction VPN Router

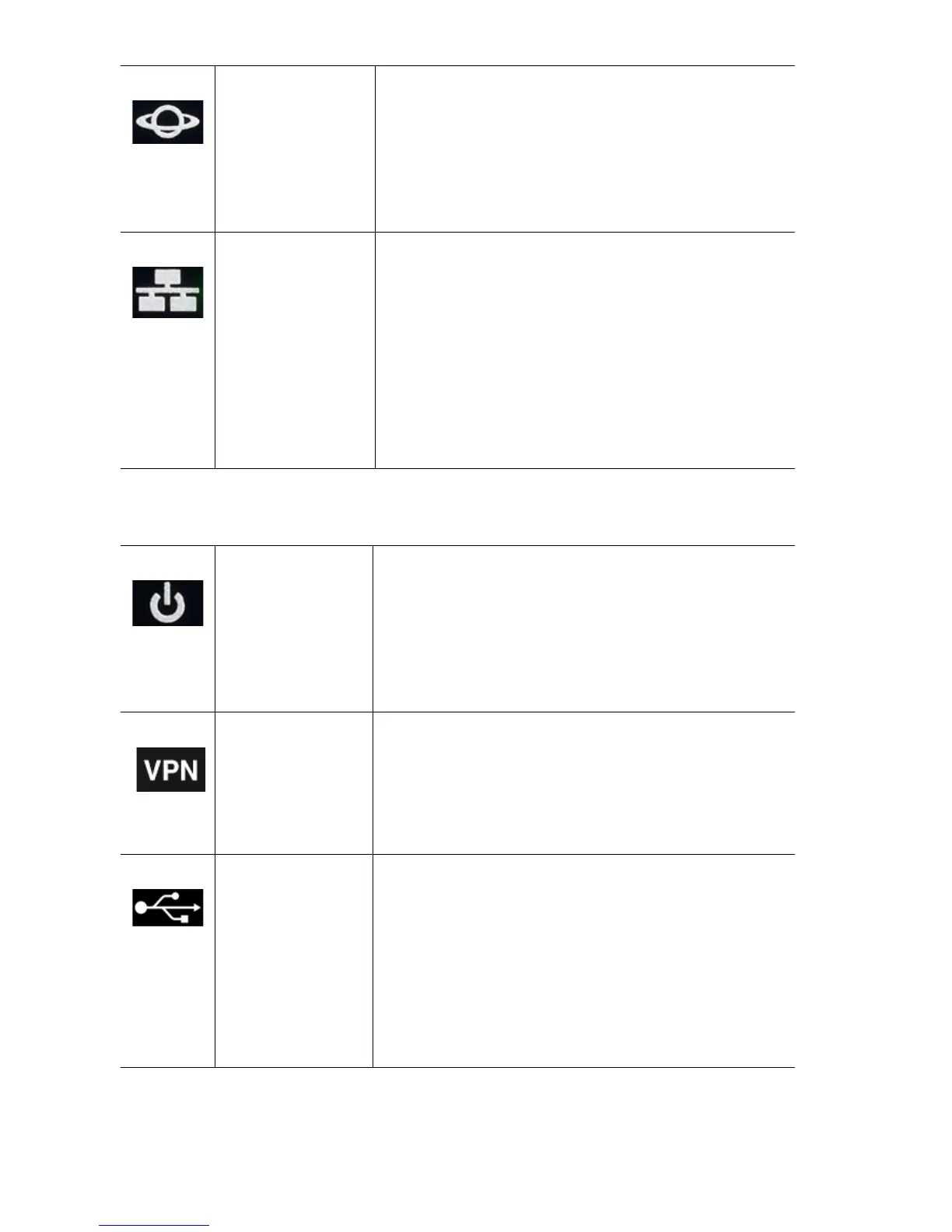

RV130W Front Panel
WAN Solid green when the device is connected to
the Internet using a wired connection.
Off when the device is not connected to the
Internet or is connected using a USB dongle.
Flashes green when sending or receiving
data over the wired connection.
LAN (1-4) RJ-45 connectors that link local area network
devices, such as PCs, print servers, or
switches, to the device. The numbered lights
correspond to the LAN ports on the back
panel.
Solid green when the corresponding port is
connected to a device.
Flashes green when the port is sending or
receiving data.
Power Solid green when the device is powered on
and booted.
Flashes green when the device is booting or
upgrading the firmware.
Flashes rapidly if the device is running
corrupt firmware.
VPN
(for site-to-site
IPsec VPN only)
Solid green when at least one VPN tunnel is
active.
Flashes green when receiving or transmitting
data through a VPN tunnel.
Amber when no enabled VPN tunnel is active.
USB Solid green when the USB dongle is
successfully connected to an Internet
Service Provider (ISP) and an IP address has
been assigned.
Flashes green when the port is sending or
receiving data.
Amber when the USB dongle is recognized
but failed to connect to an ISP.
