Step 3 Install a new intrusion switch:
a) Slide the switch mechanism down into the clips on the chassis wall so that the screwhole lines up.
b) Use a #1 Phillips-head screwdriver to install the single screw that secures the switch mechanism to the chassis wall.
c) Connect the switch cable to the socket on the motherboard.
Step 4 Replace the cover to the server.
Step 5 Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

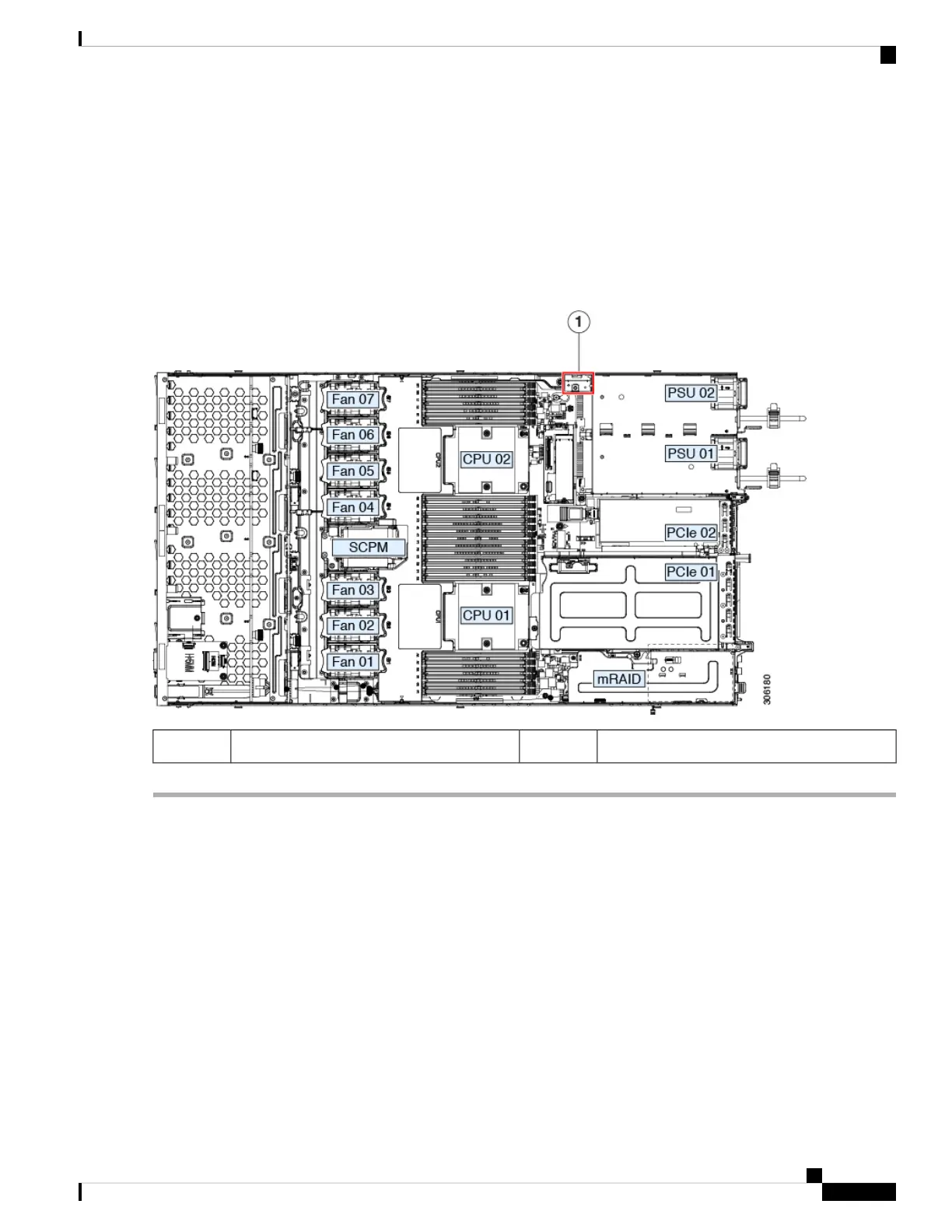

Figure 44: Replacing a Chassis Intrusion Switch
-Intrusion switch location1
Installing a Trusted Platform Module (TPM)
The trusted platform module (TPM) is a small circuit board that plugs into a motherboard socket and is then
permanently secured with a one-way screw. The socket location is on the motherboard below PCIe riser 2.
TPM Considerations
• This server supports TPM version 2.0.
• Field replacement of a TPM is not supported.
Cisco Application Services Engine Hardware Installation Guide
77
Maintaining the Server
Installing a Trusted Platform Module (TPM)
