VLAN Management

226 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4

The following describes server/router traffic (reply to host).

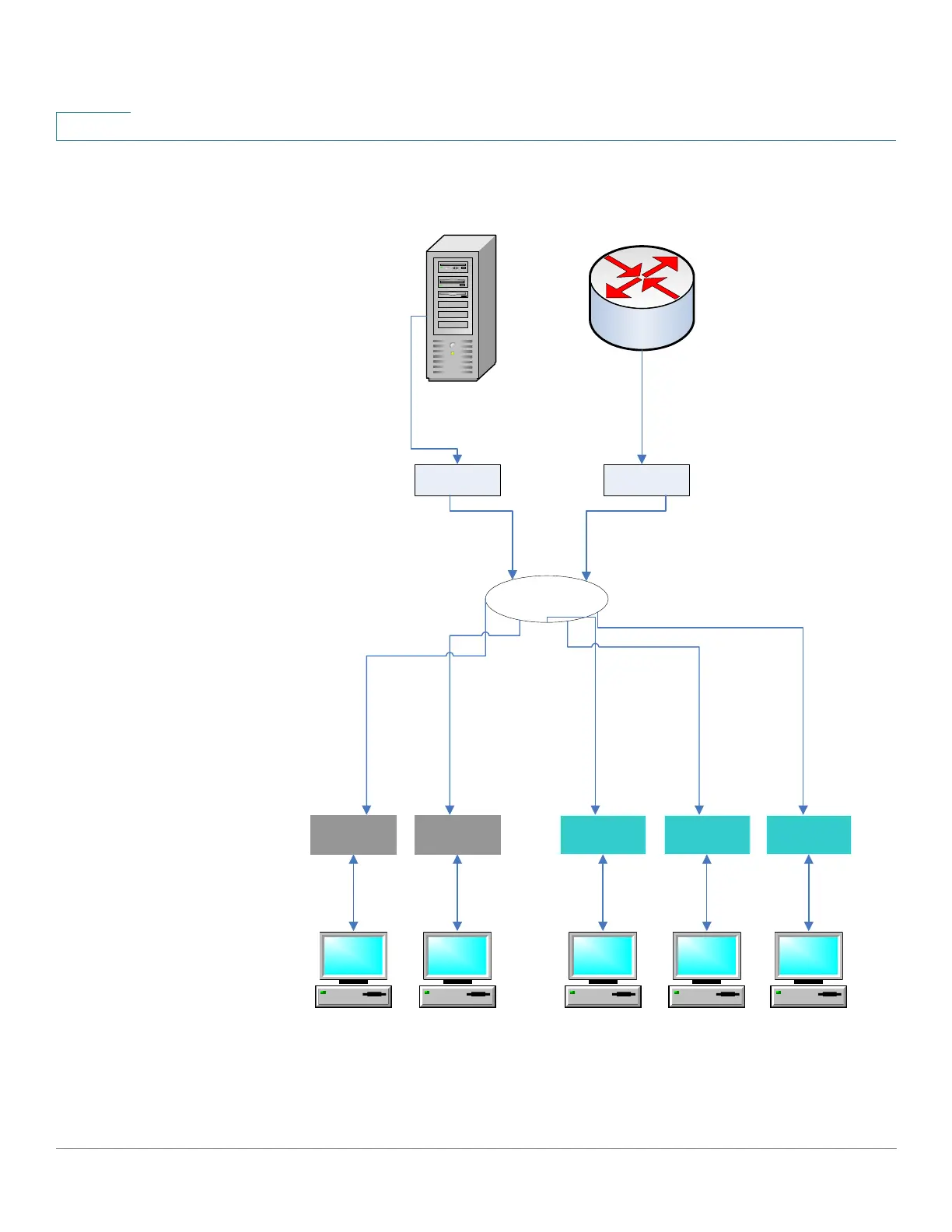

Figure 2 Server/Router Traffic to Hosts

Isolated 1 Isolated 2

Server

Community 1 Community 1

Promiscous Promiscous

Isolated Isolated Community Community Community

Community 1

Primary VLAN

Default Chapter2
