Administration: Stack Management

Unit ID Assignment

Cisco 500 Series Stackable Managed Switch Administration Guide Release 1.3 64

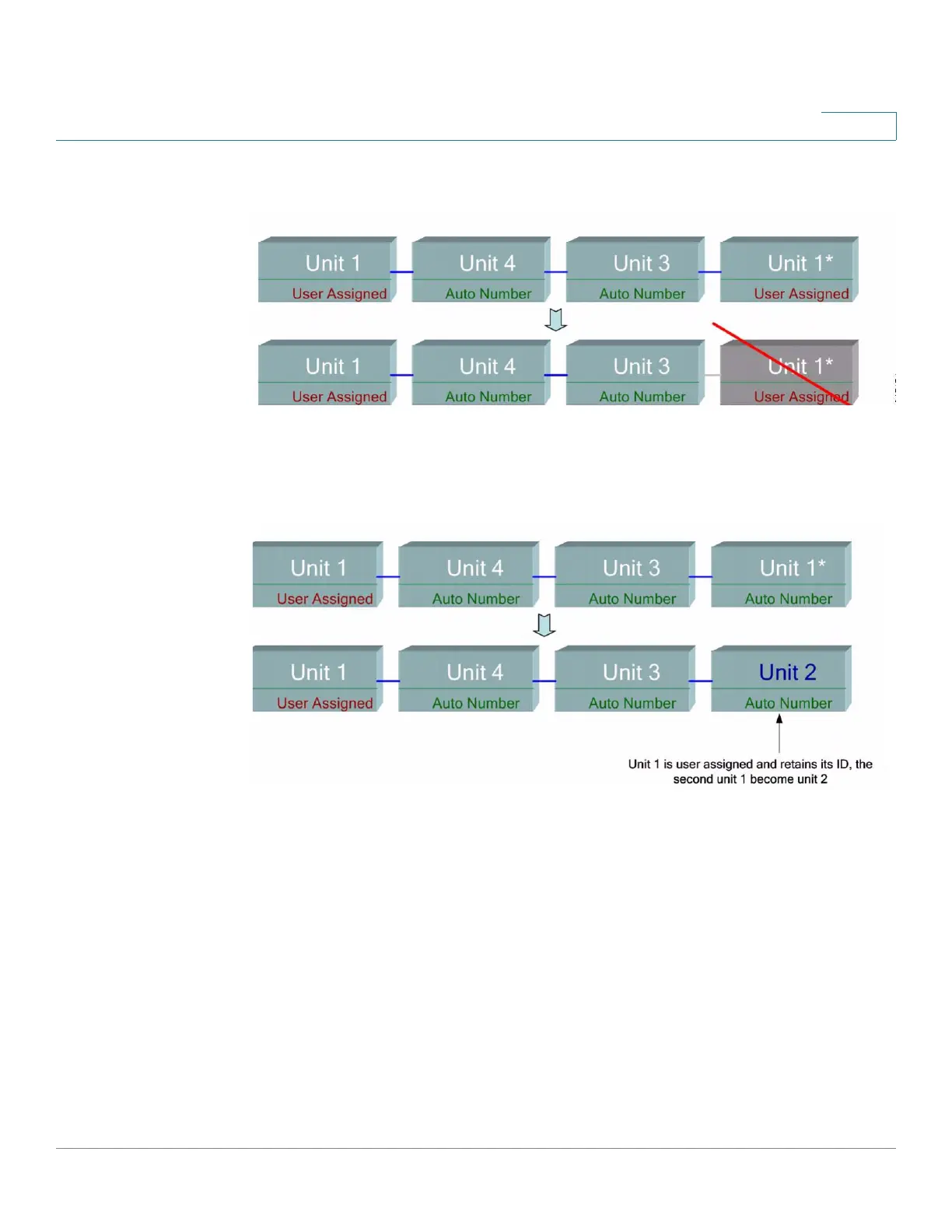

Duplicate Unit Shut Down

The following shows a case where one of the duplicate units (auto-numbered) is

renumbered.

Duplicate Unit Renumbered
