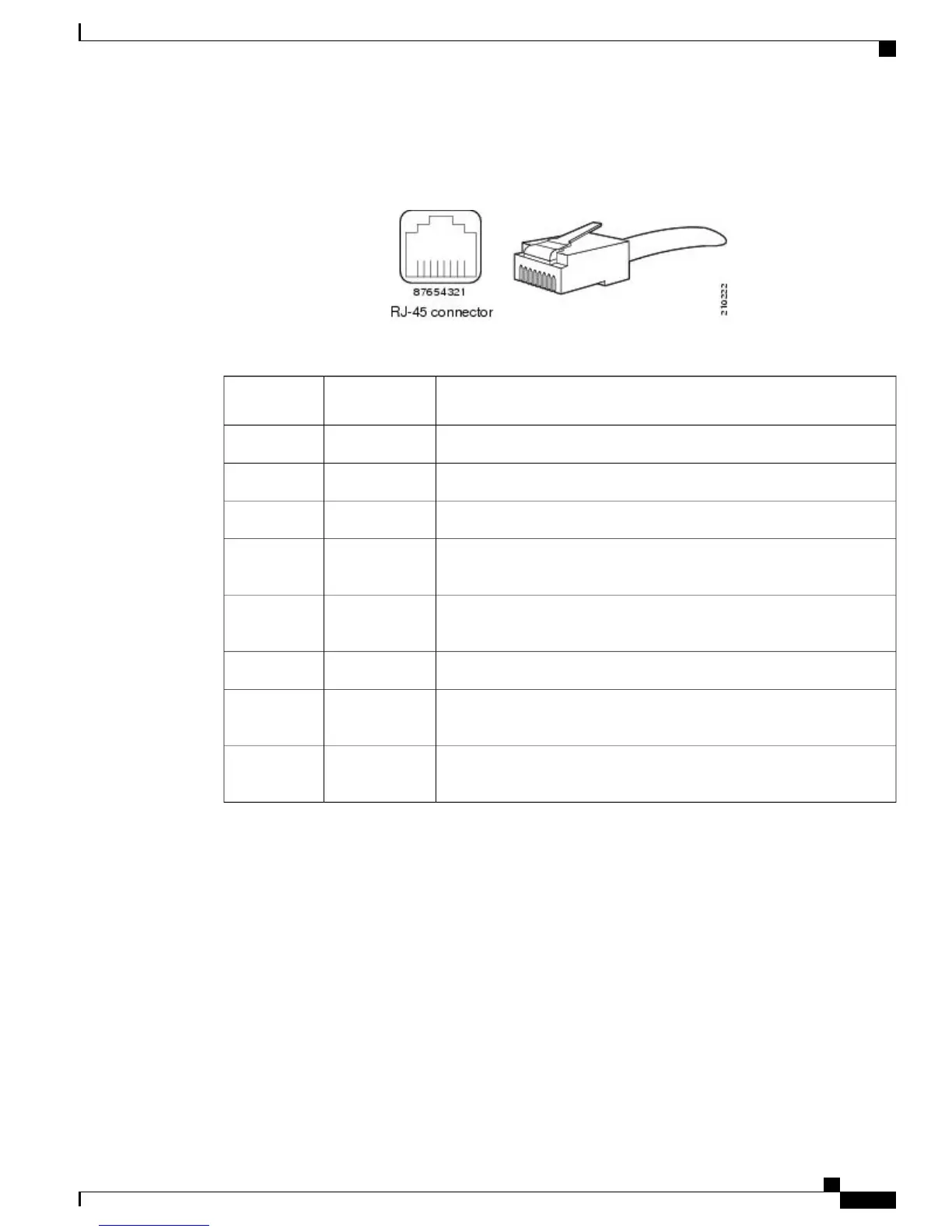

The following figure shows the RJ-45 port and plug.
Figure 10: RJ-45 Port and Plug
Ethernet Port Pin-out
DescriptionSignalEthernet Port
Pin
Transmit data +TxD+1
Transmit data -TxD-2
Receive data +RxD+3
No connectionTermination
network
4
No connectionTermination
network
5
Receive data-RxD-6
No connectionTermination
network
7
No connectionTermination
network
8
Connect the Console
Warning: Do not work on the system or connect or disconnect cables during periods of lightning activity.
Statement 1001
Your Cisco SNS-3515 or Cisco SNS-3595 appliance has a DCE-mode console port for connecting a console
terminal to your appliance. The appliance uses a DB-9 serial connector for the console port.
The console port on the Cisco SNS-3515 or Cisco SNS-3595 appliance includes an EIA/TIA-232 asynchronous
serial (DB-9) connector. This serial console connector (port) allows you to access the appliance locally by
connecting a terminal—either a PC running terminal-emulation software or an ASCII terminal—to the console
port.
Cisco Identity Services Engine Hardware Installation Guide, Release 2.0.1
23
Install Cisco ISE Software on the SNS 3515 and SNS 3595 Appliances
Connect Cables
