Reverse the Cable Management Arm (Optional)
Step 1
Rotate the entire CMA assembly 180 degrees. The plastic cable guides must remain pointing upward.
Step 2
Flip the tabs at the end of each CMA arm so that they point toward the rear of the server.
Step 3
Pivot the tab that is at the end of the width-adjustment slider. Depress and hold the metal button on the outside of the
tab and pivot the tab 180 degrees so that it points toward the rear of the

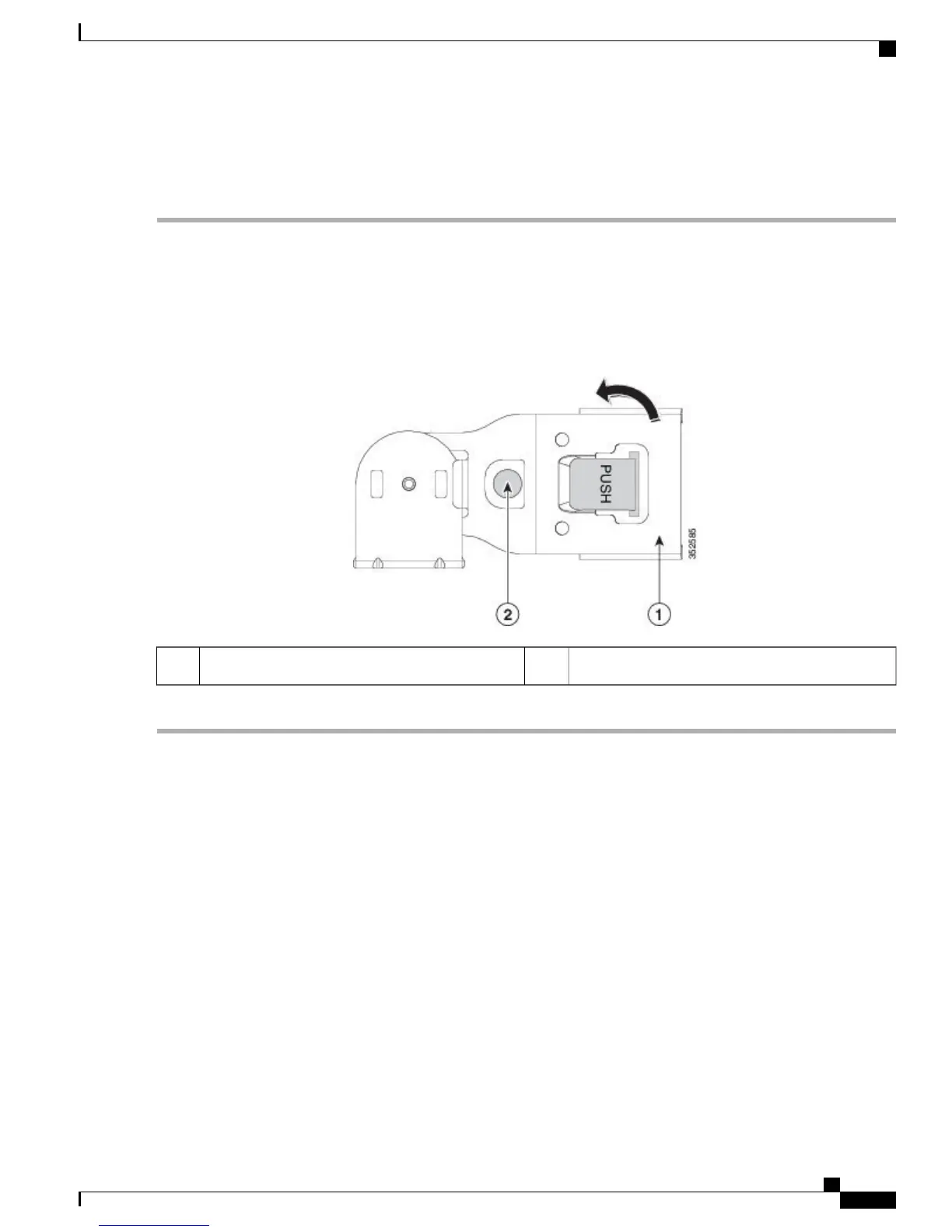

Figure 9: Reverse the CMA
Metal button for rotating2CMA tab on end of width-adjustment slider1
Connect Cables
This section describes how to connect your Cisco SNS-3515 or Cisco SNS-3595 appliance to the network
and the appliance console.
•
Connect the Network Interface, on page 22
•
Connect the Console, on page 23
•
Connect the Keyboard and Video Monitor, on page 24
•
Cable Management, on page 24
Attach cables (such as keyboard, monitor cables, if required) to the rear of the server. Route the cables properly
and use the cable straps to secure the cables to the slide rails. See the Cisco SNS 3515 or SNS 3595 Appliance
Back Panel View, on page 6 for reference on the rear view of the appliance.
Cisco Identity Services Engine Hardware Installation Guide, Release 2.0.1
21
Install Cisco ISE Software on the SNS 3515 and SNS 3595 Appliances
Connect Cables
