Front Panel LEDs
• Green—All power supplies are operating
normally.
• Amber, steady—One or more power supplies
are in a degraded operational state.
• Amber, blinking—One or more power supplies
are in a critical fault state.
Power supply status
• Off—The Ethernet link is idle.
• Green—One or more Ethernet LOM ports are
link-active, but there is no activity.
• Green, blinking—One or more Ethernet LOM
ports are link-active, with activity.
Network link activity
Cisco SNS 3515 or SNS 3595 Appliance Back Panel View
The following figure shows the components of the Cisco SNS-3515 and Cisco 3595 appliance back panel
view.

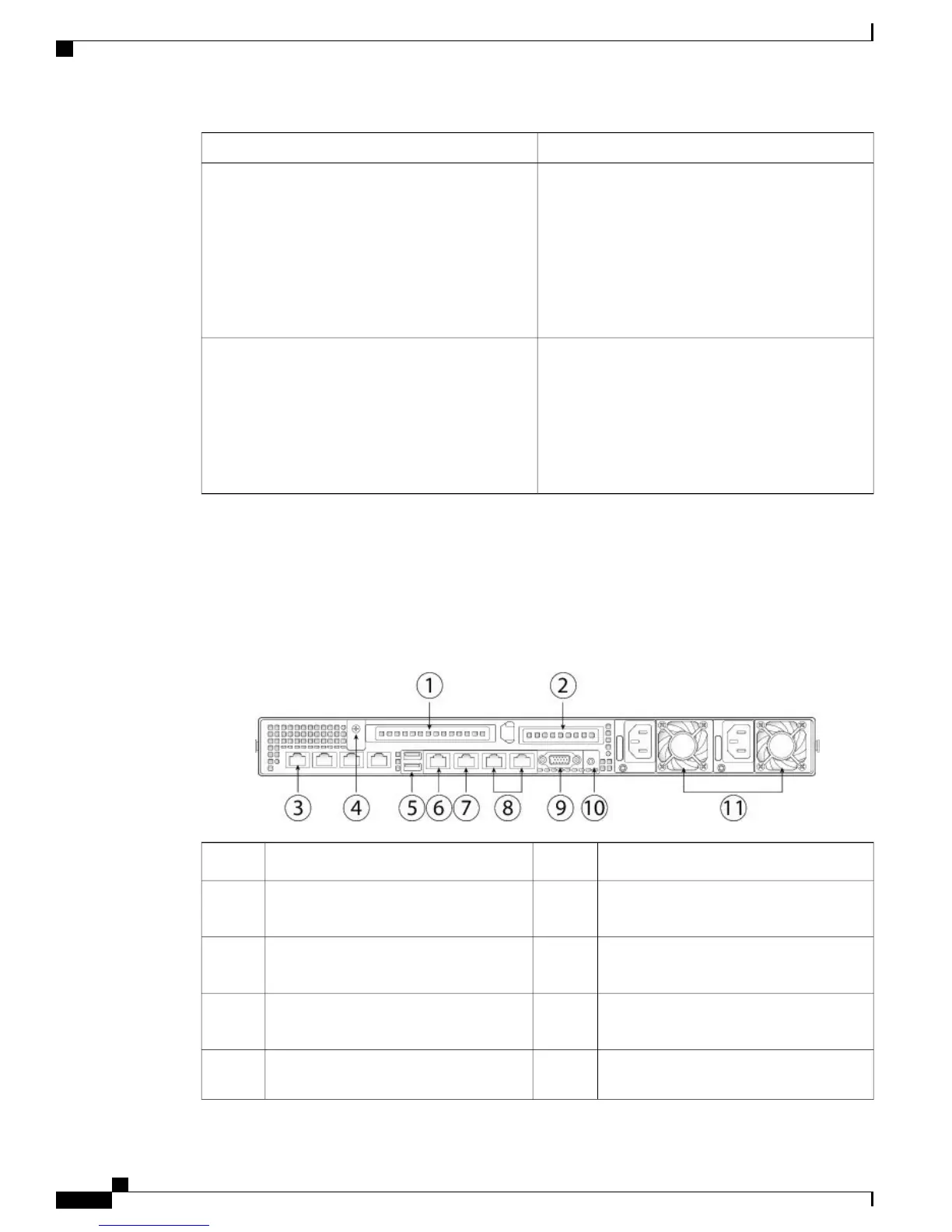

Figure 2: Back Panel LEDs
Serial port (RJ-45 connector)7PCIe riser 1/slot 11
Dual 1-GbE Ethernet ports (LAN1 and
LAN2)
8PCIe riser 2/slot 22
VGA video port (DB-15)9Modular LAN-on-motherboard (mLOM)
card slot
3
Rear unit identification button/LED10Grounding-lug hole (for DC power
supplies)
4
Power supplies (up to two, redundant as
1+1)
11USB 3.0 ports (two)5
Cisco Identity Services Engine Hardware Installation Guide, Release 2.0.1
6
Install Cisco ISE Software on the SNS 3515 and SNS 3595 Appliances
Cisco SNS 3500 Series Appliances

Cisco SNS 3515 Specifications

General

Brand	Cisco
Model	SNS 3515
Category	Server
Language	English
