6 Cisco Unified Communications 500 Series Model UC 540 Quick Start Guide

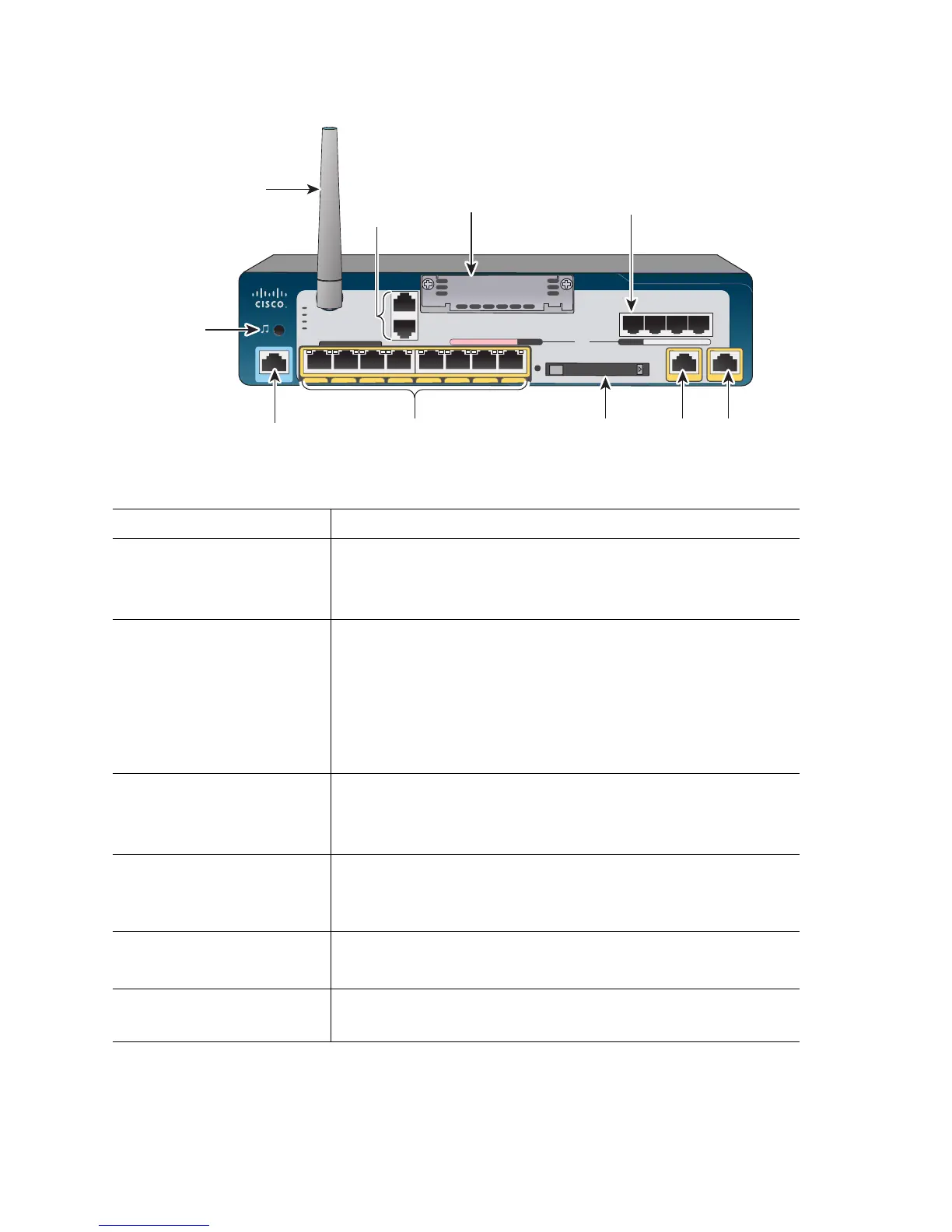

Cisco UC 540 with Line (BRI) ports
Feature Description
Music-on-Hold (MoH)
audio port
Connects to an audio device (such as an MP3
player or radio) to provide streaming audio for
music on hold.
Console port Connects the UC 540 to a console PC to provide
access to the CLI. This port can also be used for
connecting to the CLI through a modem.
Recommended for advanced users or for device
access recovery purposes.
Wi-Fi Wireless access point that provides
connectivity for wireless computers, phones, and
other devices.
Basic Rate Interface
(BRI) ports
Connects the UC 540 to an Integrated Services
Digital Network (ISDN). Only applies to model
UC540W-BRI-K9.
Power Over Ethernet
(PoE) ports
Provides network connectivity and power for
devices that can draw power from PoE ports.
Phone (FXS) ports Connects directly to an analog telephone, fax
machine, or similar device.
275677
Cisco Small Business Pro
CONSOLE
POWER ETHERNET
PWR LNK PWR LNK PWR LNK PWR LNK PWR LNK PWR LNK PWR LNK PWR LNK
COMPACT FLASH
CF
SYS
POE
VM
WLAN
Unified Communications 500 Series
UC540 with BRI
Console
PoE Ports
(8)
Music on
Hold
Wi-Fi
antenna
VIC Slot
Line
(BRI)
Ports
WAN
Port
Compact
Flash
EXP
Port
Phone (FXS) Ports
PFO
