Cisco UCS 2208XP Spec Sheet

Cisco UCS 5108 Blade Server Chassis
40
SUPPLEMENTAL MATERIAL
Connectivity Between Fabric Extender and Fabric Interconnect

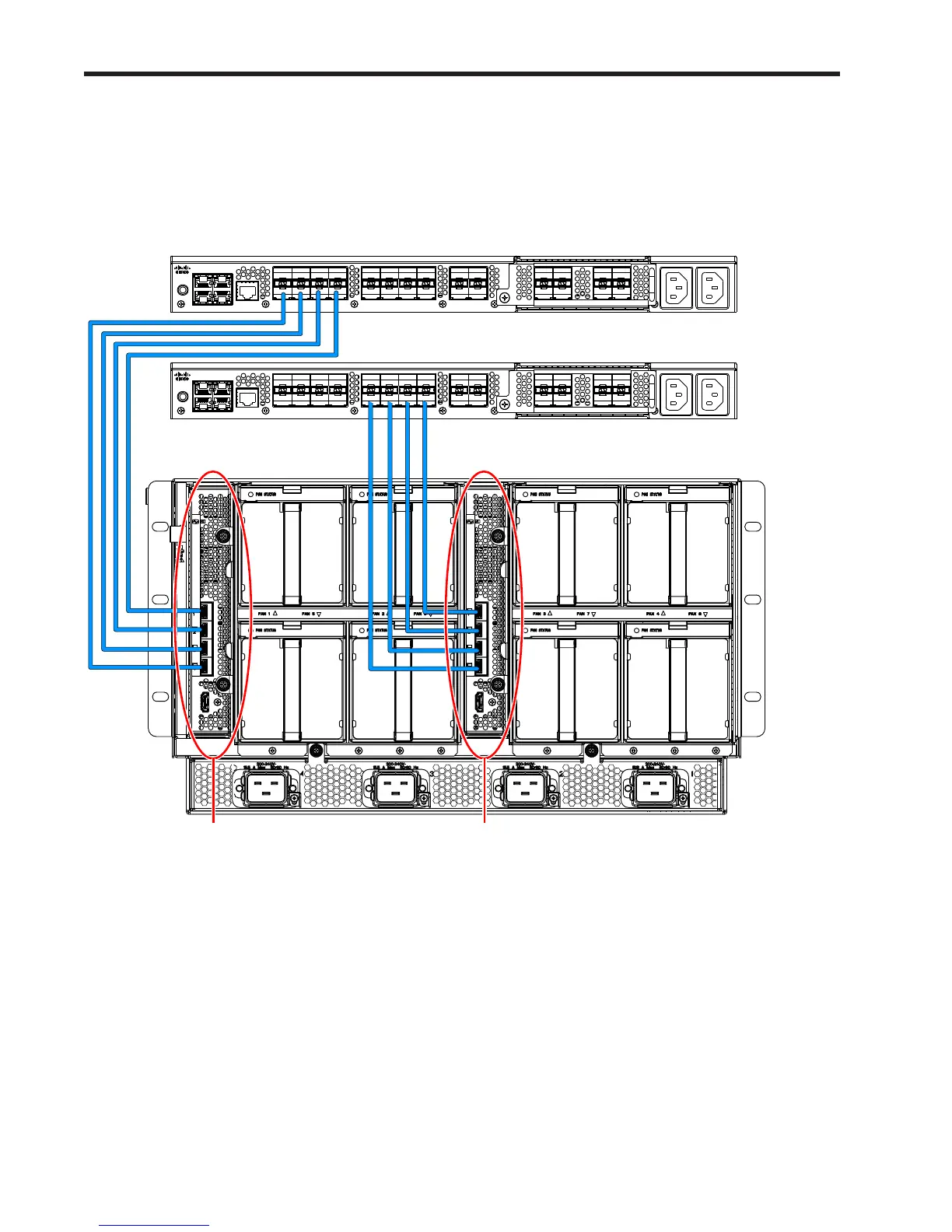

Figure 24 shows the correct method to connect the Fabric Interconnect modules to two separate port
fabric interconnects. You must connect each port fabric interconnect to the chassis through its own Fabric
Extender.
Figure 24 Connecting Blade Chassis Fabric Extenders to Fabric Interconnect Chassis
192749
Fabric Interconnect A
Fabric Interconnect B
Fabric Extender 1
Fabric Extender 2
