Cisco UCS 5108 Blade Server Chassis
SUPPLEMENTAL MATERIAL
41
SFP+ Transceivers
Each Cisco Fabric Extender within the chassis supports Small Form-Factor Pluggable (SFP+) copper or
optical transceivers. Each transceiver runs at 10 Gbs.
Copper SFP+ Twinax Transceivers
The Cisco Fabric Extenders support Twinax copper transceivers with twinax cables of various lengths. The
assembly consists of two transceivers connected by a twinax copper cable. The enhanced SFP+ 10-Gb
Ethernet transceiver is a bidirectional device with a transmitter and receiver in the same physical package.
It has a 20-pin connector on the electrical interface.
Figure 25 shows the SFP-H10GB-CU5M transceiver. The rubber loop is used for removing the SFP+ from its
port on the I/O module.

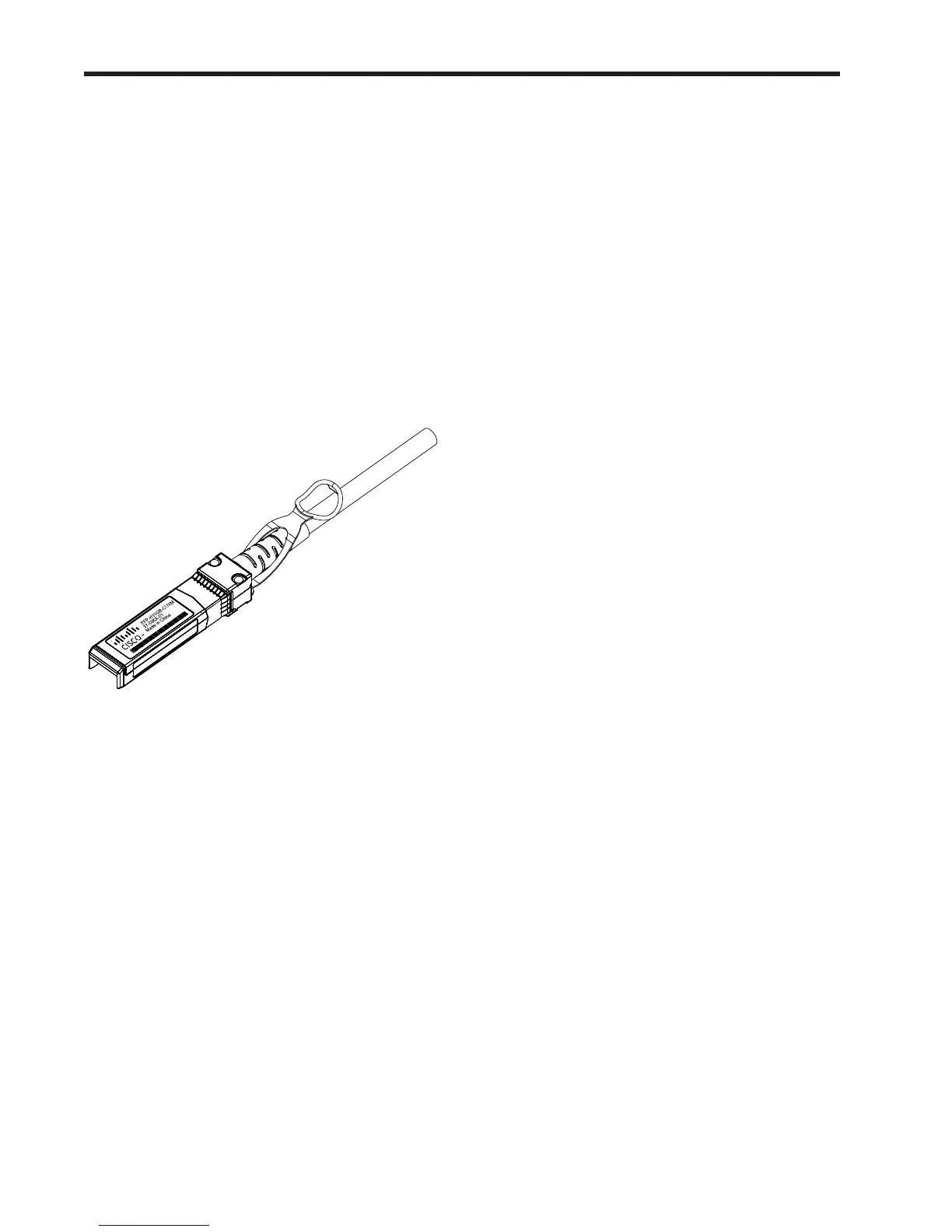

Figure 25 SFP+ 10 Gb Twinax Copper Transceiver
