Cisco UCS 2208XP Spec Sheet

Cisco UCS 5108 Blade Server Chassis
DETAILED VIEWS
7
Fabric Extender Modules
The Fabric Extender modules (up to two) plug into the back of the UCS 5108 series blade server chassis. A
midplane connects the blade servers to the Fabric Extenders. The 5108 chassis accommodates the following
Fabric Extender modules:
■ Cisco UCS 2208XP
■ Cisco UCS 2204XP
■ Cisco UCS 2104XP
Figure 5 shows the Fabric Extenders.

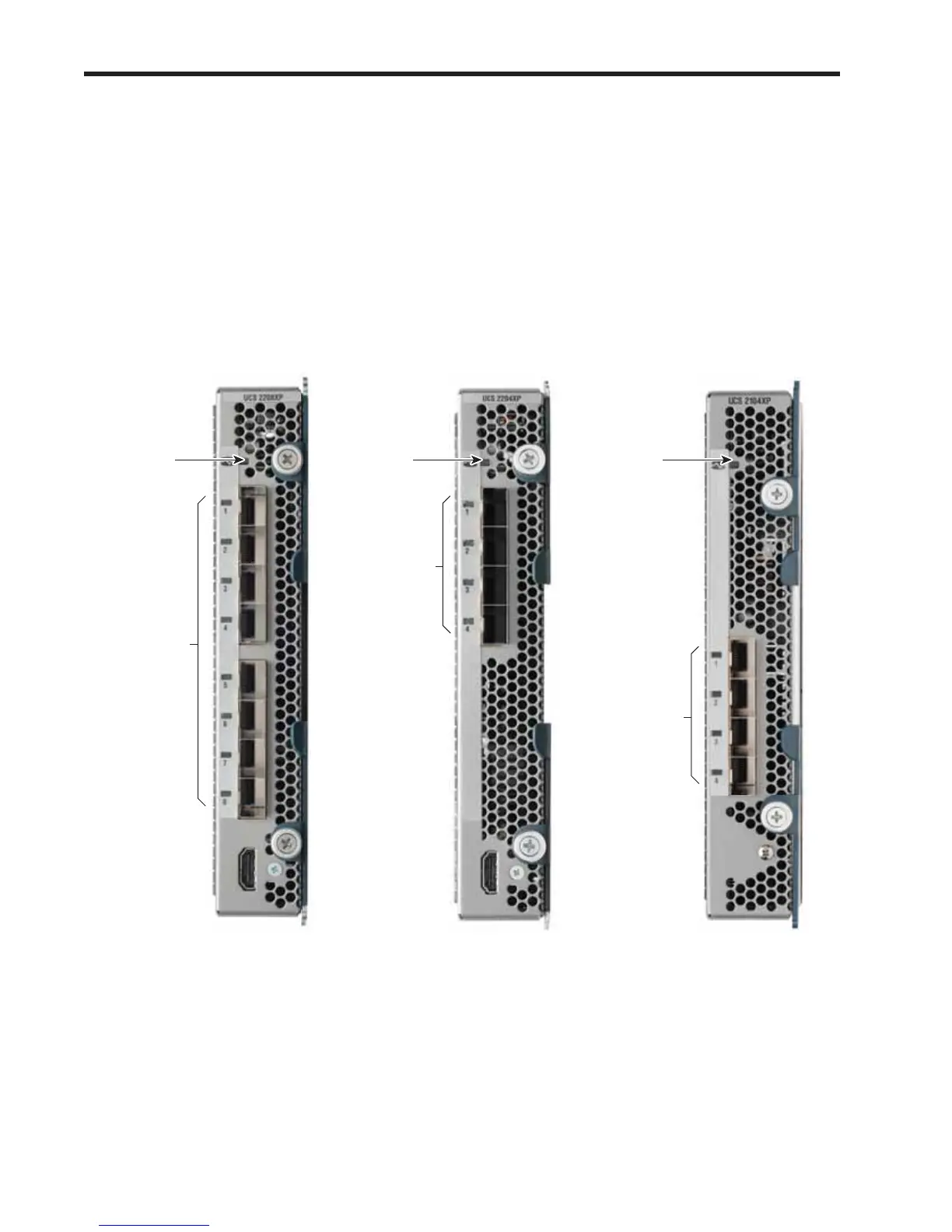

Figure 6 2208XP, 2204XP, and 2104XP Fabric Extenders
Status LED
8 x 10 GbE
Unied Fabric Ports
and LEDs
4 x 10 GbE
Unied Fabric Ports
and LEDs
Status LED
2208XP Fabric Extender 2204XP Fabric Extender 2104XP Fabric Extender
Status LED
4 x 10 GbE
Unied Fabric Ports
and LEDs

Cisco UCS 2208XP Specifications

General

Brand	Cisco
Model	UCS 2208XP
Category	Chassis
Language	English
