Cisco UCS 5108 Blade Server Chassis
DETAILED VIEWS
5

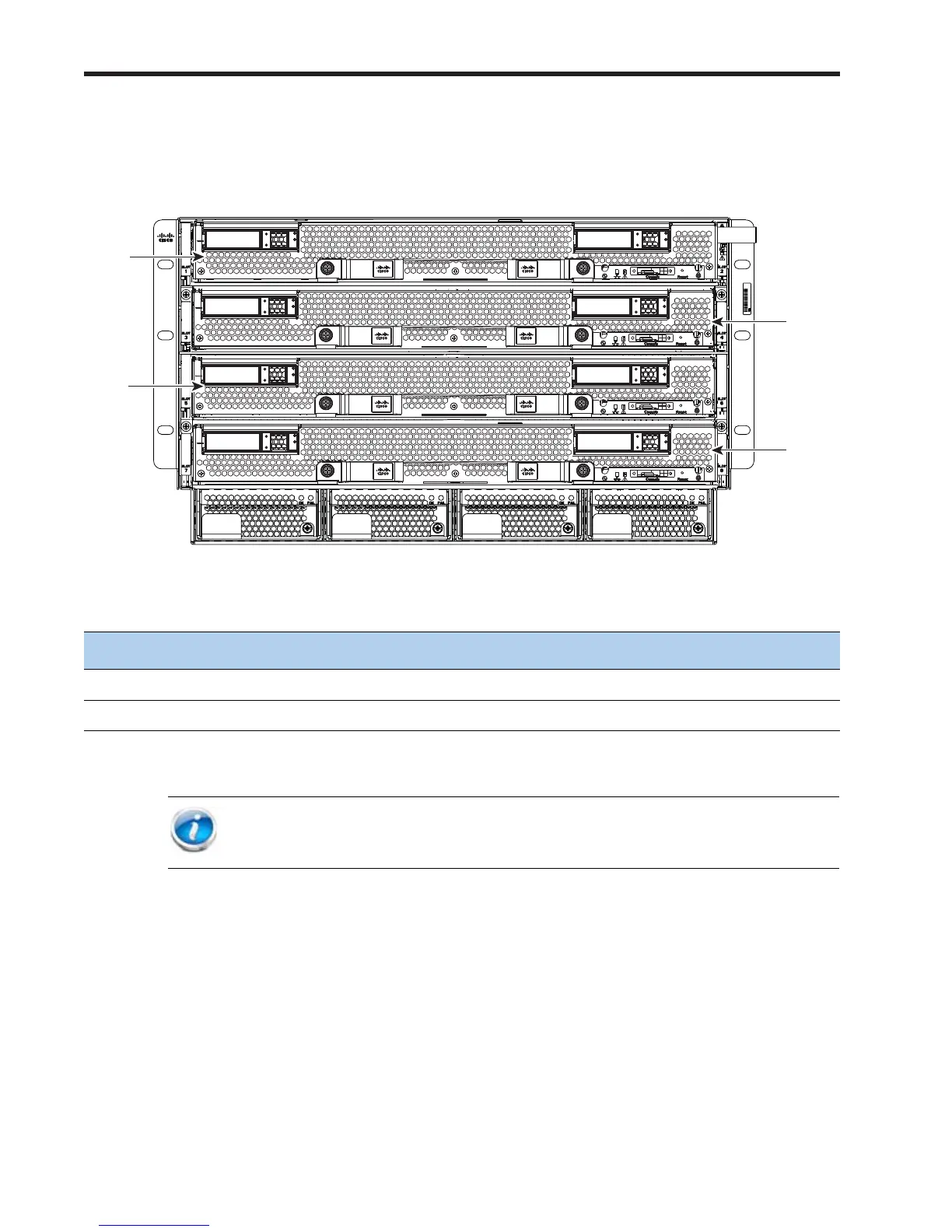

Figure 4 is a detailed front view of the Cisco UCS 5108 Blade Server Chassis with four full-width blade
servers installed.
Figure 4 5108 Chassis Front View With Four Full-Width Blade Servers Installed
Table 2 Front View Callouts
Callout Description
Slot 1 - 4 Slot numbering for full-width blade servers
Power Supply 1 - 4 4 x 2500 W power supplies
NOTE: If a B460 M4 full-width blade server is mixed with other full-width or
half-width blades in the chassis, the B460 M4 must occupy the bottom two full-width
slots in the 5108 chassis.
Slot 1
Slot 3
Power Supply 1 Power Supply 2 Power Supply 3 Power Supply 4
Slot 2
Slot 4

Cisco UCS 2208XP Specifications

General

Brand	Cisco
Model	UCS 2208XP
Category	Chassis
Language	English
