Step 4
Place the CPU and tool on the CPU socket with the registration marks aligned as shown.
Step 5
Press the button/handle on the pick and place tool to release the CPU into the socket.

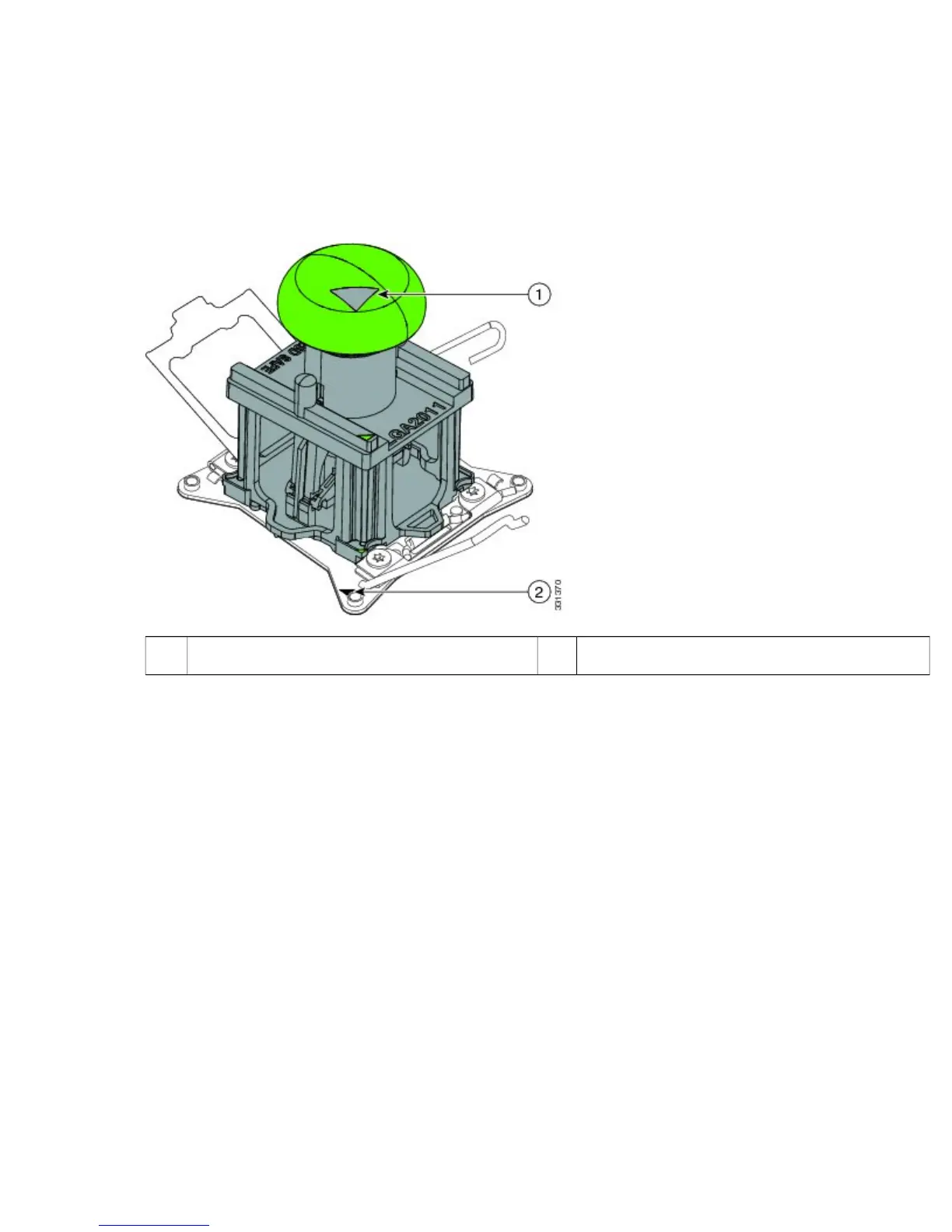

Figure 11: Using the CPU Pick and Place Tool to Insert the CPU
Alignment mark on the CPU socket2Alignment mark on the tool button/handle1
