Cisco UCS B200 M3 Installation And Service Note

Step 6
Close the socket latch. See callout 1 in the following figure.
Step 7
Secure the first hook, which has the following icon: See callout 2 in the following figure.
Step 8
Secure the second hook, which has the following icon: See callout 3 in the following figure.

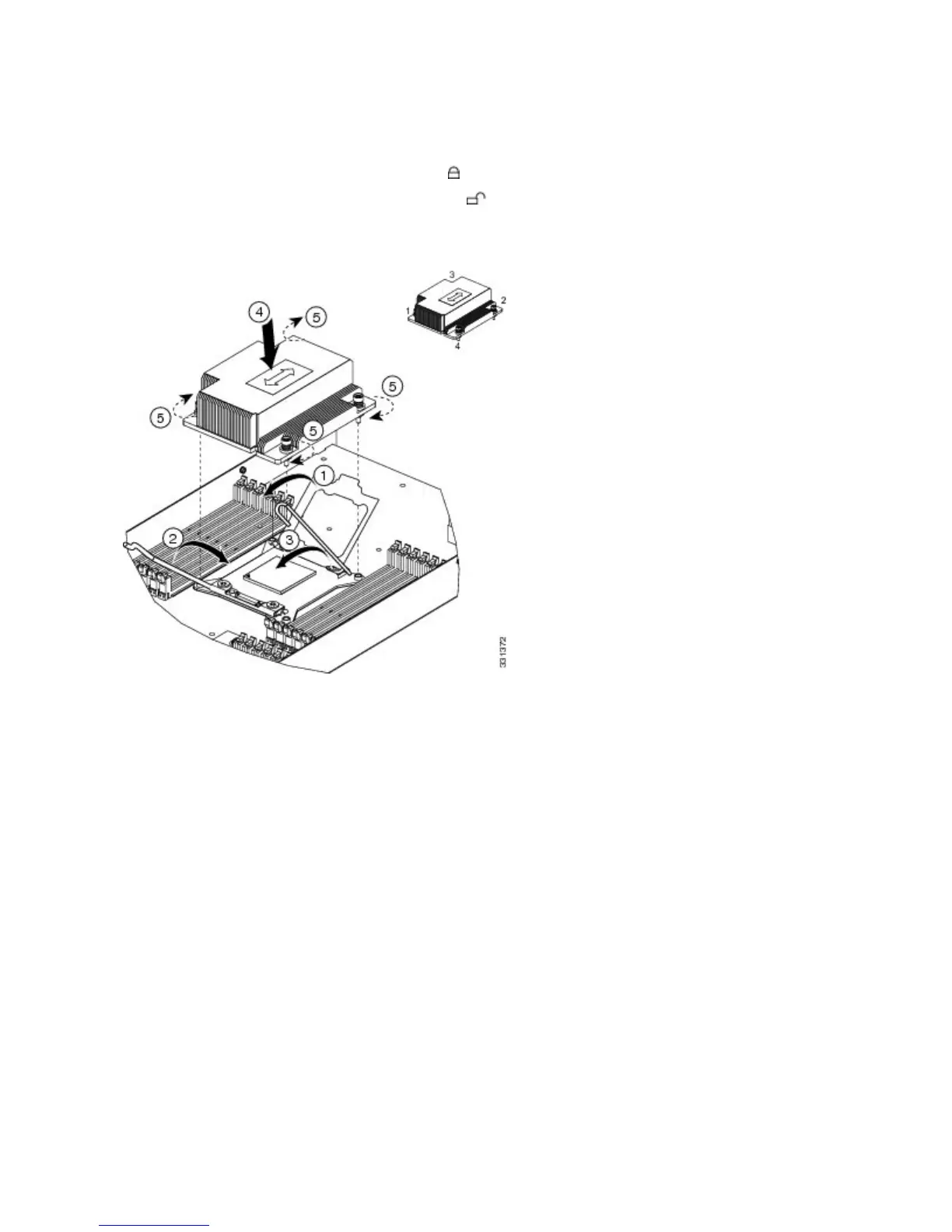

Figure 12: Replacing the Heat Sink (B200 M3 Shown)
Step 9
Using the syringe of thermal grease provided with replacement CPUs and servers (UCS-CPU-GREASE=), add 2 cubic
centimeters of thermal grease to the top of the CPU where it will contact the heat sink. Use the pattern shown. This should
require half the contents of the syringe.
The thermal grease has very specific thermal properties, and thermal grease from other sources should not be
substituted. Using other thermal grease may lead to damage.
Caution
CPU spares come with two syringes of thermal grease; one with a blue cap and one with a red cap. The syringe
with the blue cap is UCS-CPU-GREASE=, which is used with this server
Note
18

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
