Cisco UCS B200 M3 Installation And Service Note

Installing a mLOM Adapter
The Cisco VIC 1240 is a specialized modular Lan on Motherboard (mLOM) adapter that provides dual 2 x 10 Gb of Ethernet/ or
Fiber Channel over Ethernet (FCoE) connectivity to each chassis. It plugs into the dedicated mLOM connector only. It is currently
the only card that can be plugged into the mLOM connector and it will provide connectivity through either a 2100 series or 2200
series IOM.
You must remove the adapter card to service the mLOM.Note
To install an mLOM on the blade server, follow these steps:
Procedure
Step 1
Position the mLOM’s board connector above the motherboard connector and align the captive screw to the standoff post
on the motherboard.
Step 2
Firmly press the mLOM’s board connector into the motherboard connector.
Step 3
Tighten the captive screw.
To remove an mLOM, reverse the above procedure. You might find it helpful when removing the connector from
the motherboard to gently rock the board along the length of the connector until it loosens.
Tip

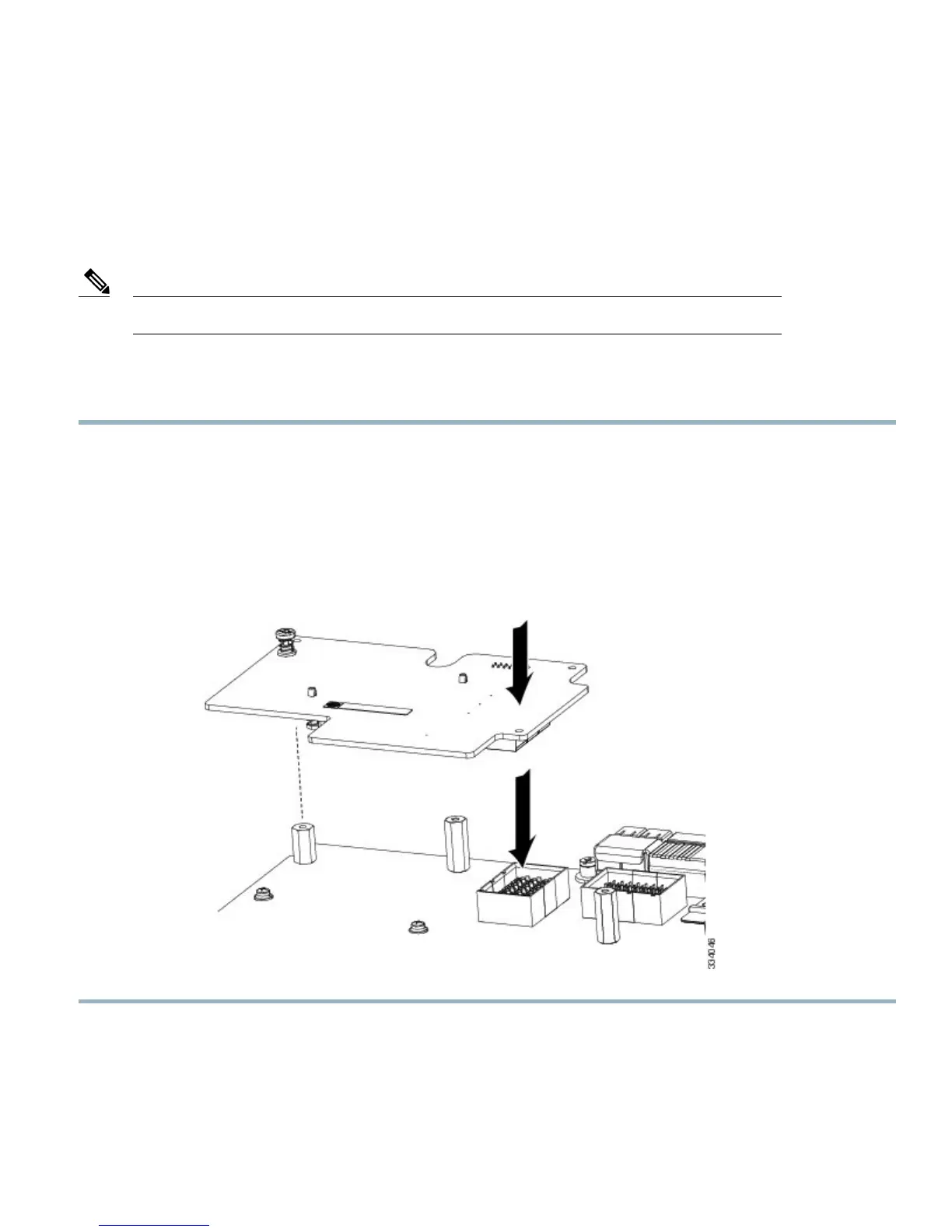

Figure 21: Installing an mLOM
29

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
