Cisco UCS C220 M3 Installation And Service Guide

2-5
Cisco UCS C220 Server Installation and Service Guide
OL-25760-01
Chapter 2 Installing the Server
Installing the Server In a Rack
Installing the Server In a Rack
This section describes how to install the server in a rack.
Warning To prevent bodily injury when mounting or servicing this unit in a rack, you must take special
precautions to ensure that the system remains stable. The following guidelines are provided to ensure
your safety:

This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
When mounting this unit in a
partially filled rack, load the rack from the bottom to the top with the heaviest component
at the bottom of the rack.
If the rack is provided with stabilizing devices,
install the stabilizers before mounting or servicing the unit in the rack.
Statement 1006
To install the slide rails and the server into a rack, follow these steps:
Step 1 Open the front securing latch (see Figure 2-2). The end of the slide-rail assembly marked “FRONT” has
a spring-loaded securing latch that must be open before you can insert the mounting pegs into the
rack-p
ost holes.
a. On the rear side of the securing-latch assembly, hold open the clip marked “PULL.”
b. Slide the spring-loaded securing latch away from the mounting pegs.
c. Release the clip marked “PULL” to lock the securing latch in the open position.

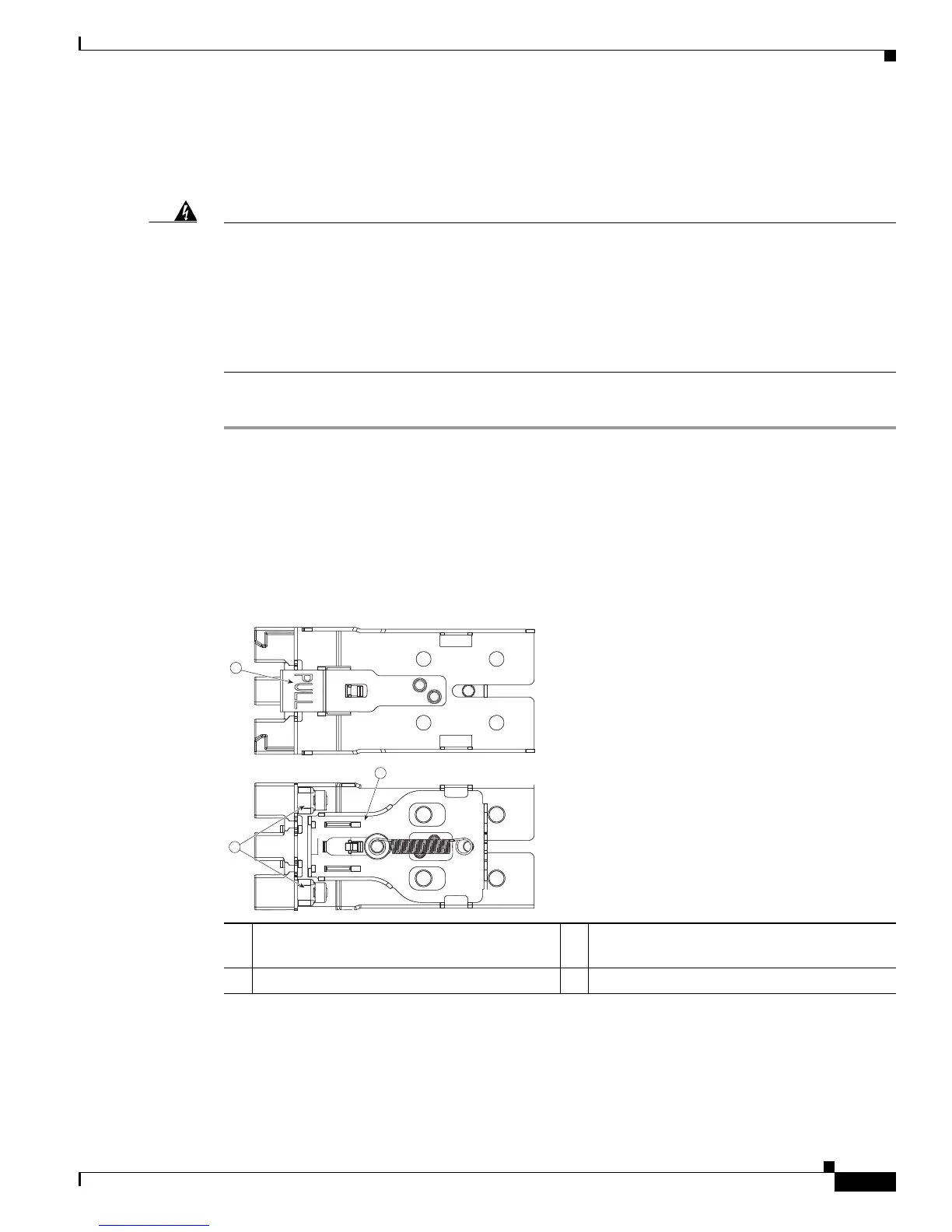

Figure 2-2 Front Securing Latch
1 Clip marked “PULL” on rear of assembly 3 Spring-loaded securing latch on front of
assembly
2 Front mounting pegs
3
1
2
332061

Cisco UCS C220 M3 Specifications

General

Tcase	70 °C
Bus type	QPI
Stepping	M1
FSB Parity	No
Scalability	2S
Processor cache	10 MB
Processor cores	4
System bus rate	6.4 GT/s
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor codename	Sandy Bridge EP
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Processor manufacturer	Intel
Processor package size	52.5 x 45.0 mm
Processor front side bus	- MHz
Processor boost frequency	2.50 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Graphics & IMC lithography	32 nm
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Thermal Design Power (TDP)	80 W
Number of processors installed	2
CPU multiplier (bus/core ratio)	24
Physical Address Extension (PAE)	46 bit
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	800, 1066 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Maximum internal memory supported by processor	750 GB
HDD size	2.5 \
HDD interface	-
Total storage capacity	500 GB
Compatible memory cards	SD
Maximum storage capacity	- TB
Memory slots	16
Internal memory	32 GB
Memory clock speed	1866 MHz
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
Chassis type	Rack (1U)
Power supply	450 W
Safety	UL 60950-1 No. 21CFR1040, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 2001
Certification	47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR2 2, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN24
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
PCI Express slots version	3.0
Processor ARK ID	64588
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	724 mm
Width	430 mm
Height	43.2 mm
