Chapter 3 Maintaining the Server
Installing or Replacing Server Components

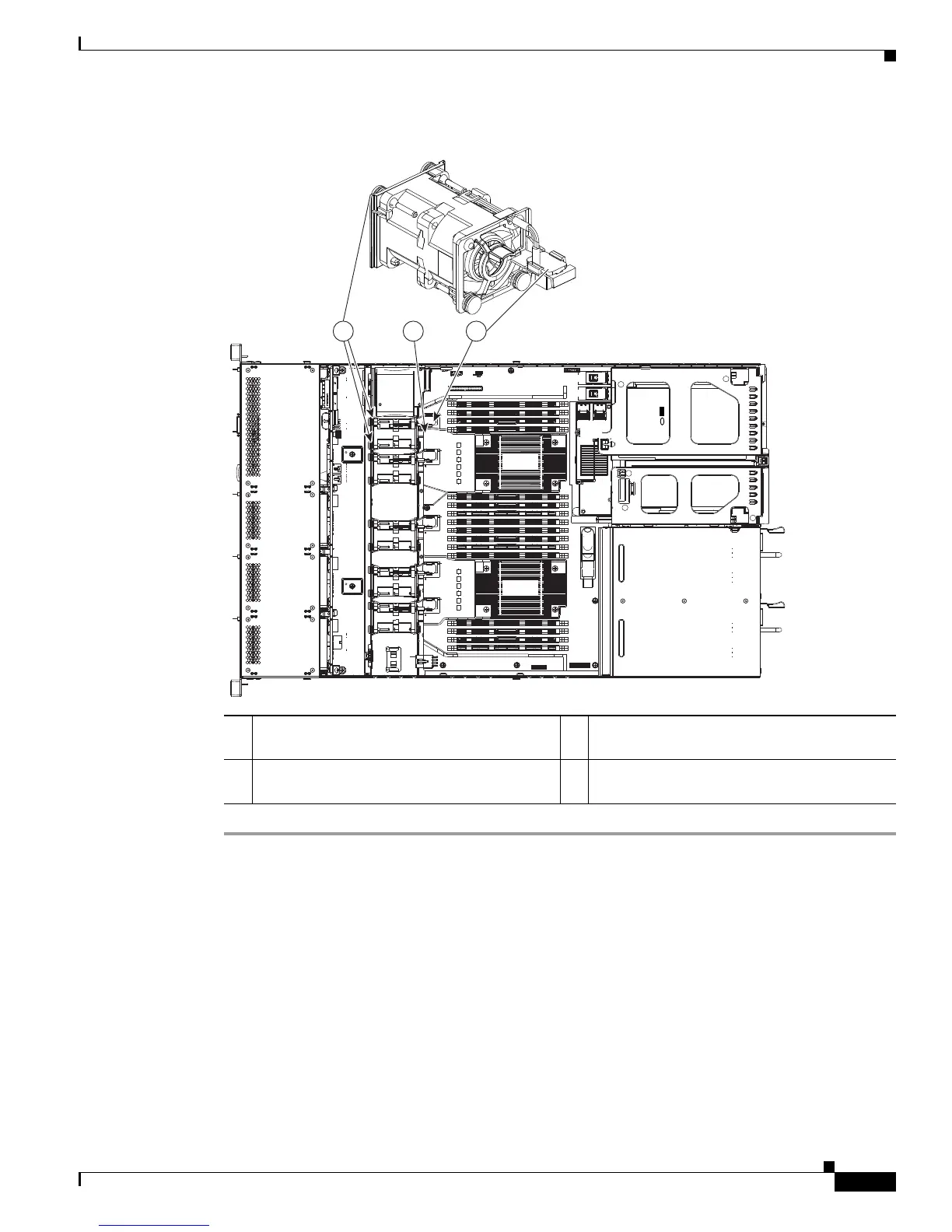

Figure 3-11 Replacing Fan Modules
1 Rubber dampening gaskets (two on each fan
module)
3 Fan connector to motherboard
2 Fan module fault LED on motherboard
(one for each fan module)
FAN1FAN1FAN1
FAN2FAN2FAN2
FAN3FAN3FAN3
FAN4FAN4FAN4FAN4
FAN5FAN5FAN5
PSU2
PCIe1
PCIe2
PSU1
CPU1
CPU2
SAS1
SAS2
SAS1 SAS2
1 2 3
331724
