Cisco XR 12000 Series Installation Guide

32
Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Removing and Installing SFP Modules
Actuator Button SFP Module
The actuator button SFP module includes a button that you push in order to remove the SFP module from
a port. (See Figure 23.)

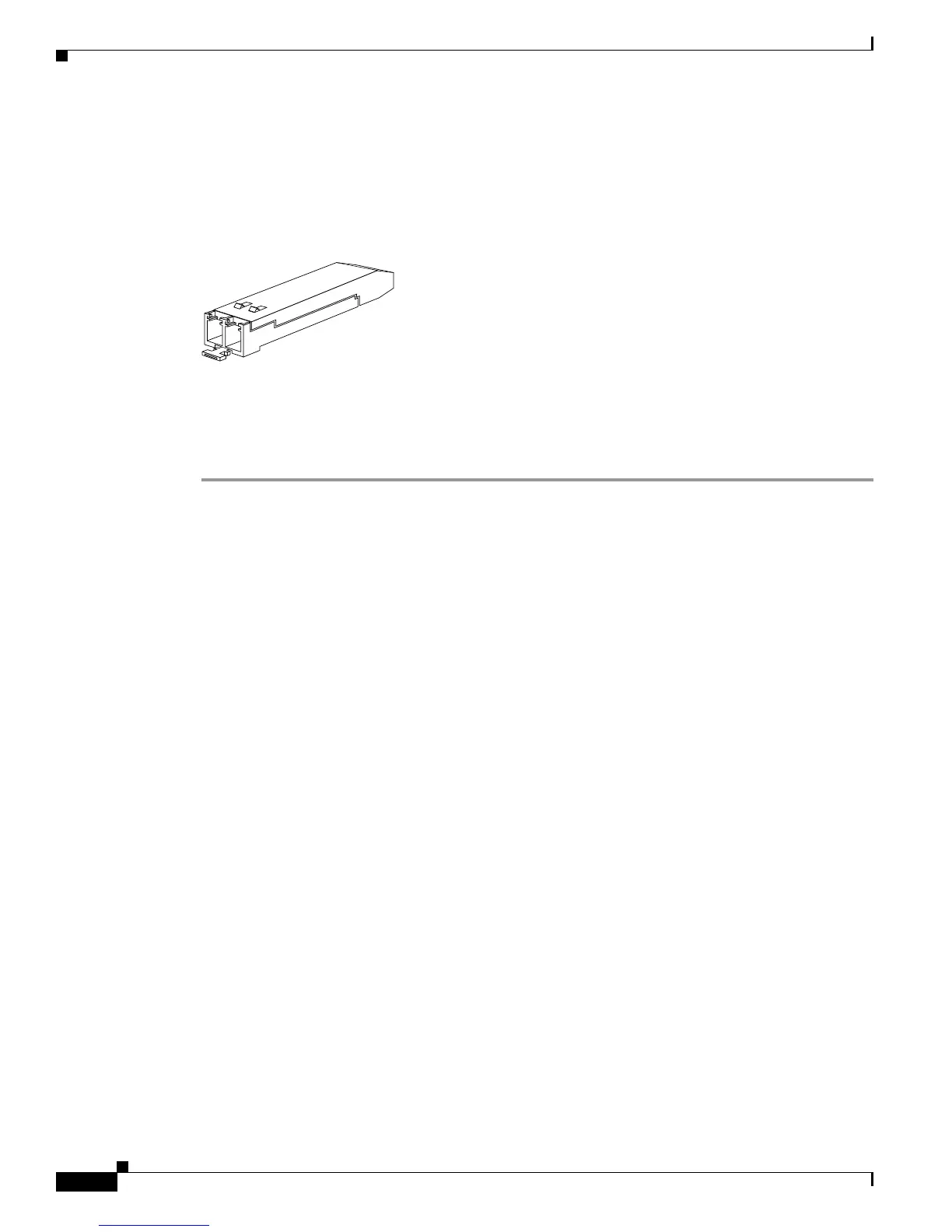

Figure 23 Actuator Button SFP Module
Removing an Actuator Button SFP Module
To remove this type of SFP module, follow these steps:
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Disconnect and remove all interface cables from the ports; note the current connections of the cables to
the ports on the line card.
Step 3 Gently press the actuator button on the front of the SFP module until it clicks and the latch mechanism
activates, releasing the SFP module from the port. (See Figure 24.)
63066
