Cisco XR 12000 Series Router Ethernet Line Card Installation
OL-7861-01
Line Card Memory
Caution Excessive pressure can damage a SODIMM socket.
Step 10 Verify that the release levers are flush against the side of the socket. If they are not, the SODIMM might
not be seated properly.
Step 11 If the module appears misaligned, carefully remove it and reseat it, ensuring that the release lever is flush
against the side of the SODIMM socket.
Step 12 If there is a retaining clip, insert it by sliding the clip between the metal strain relief and the plastic latch.
(See Figure 57.)

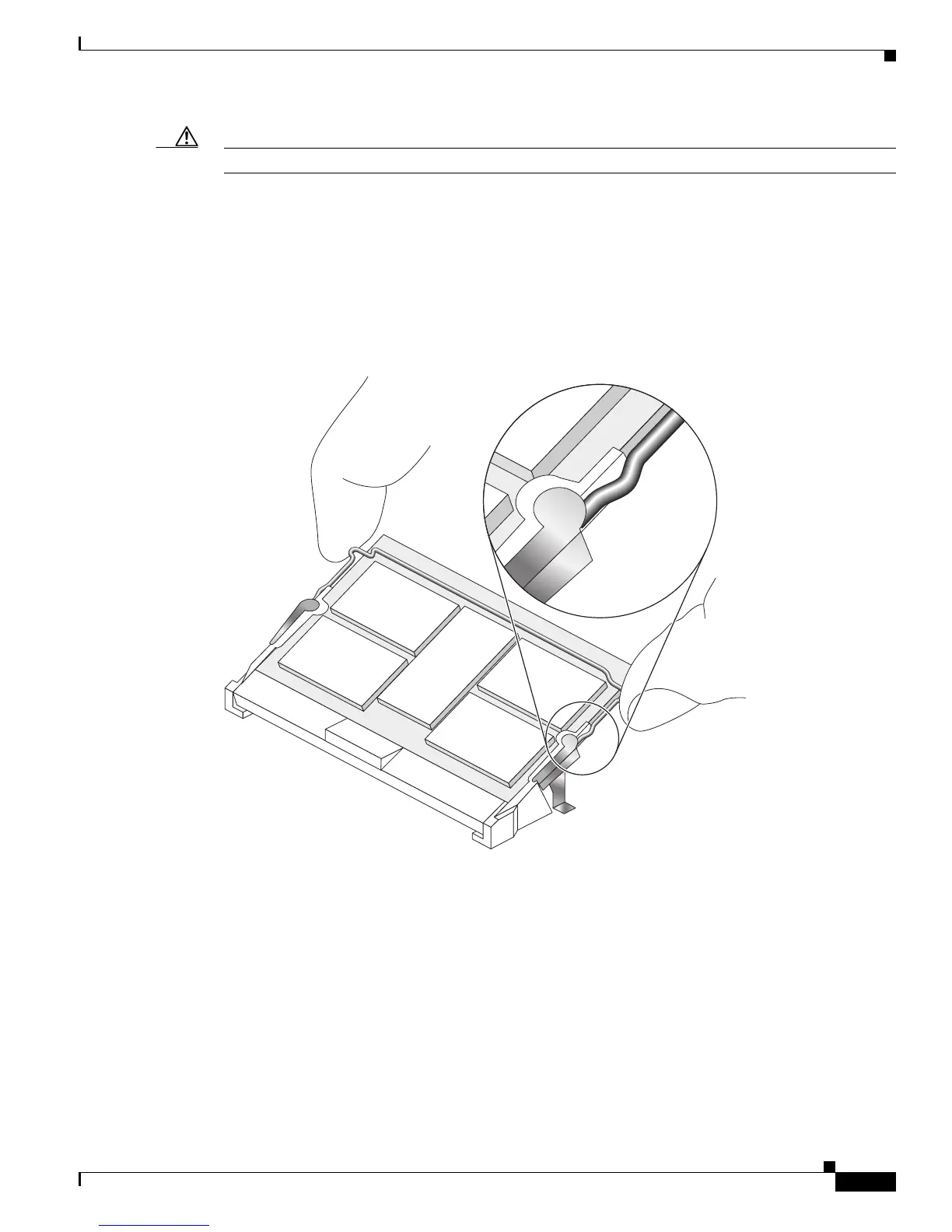

Figure 57 Inserting the Retaining Clip
The clip is properly installed when the clip detente protrudes below the strain relief and plastic latch.
(See Figure 58.)
75758
