CL-S321 Series Service Manual
- 12 -

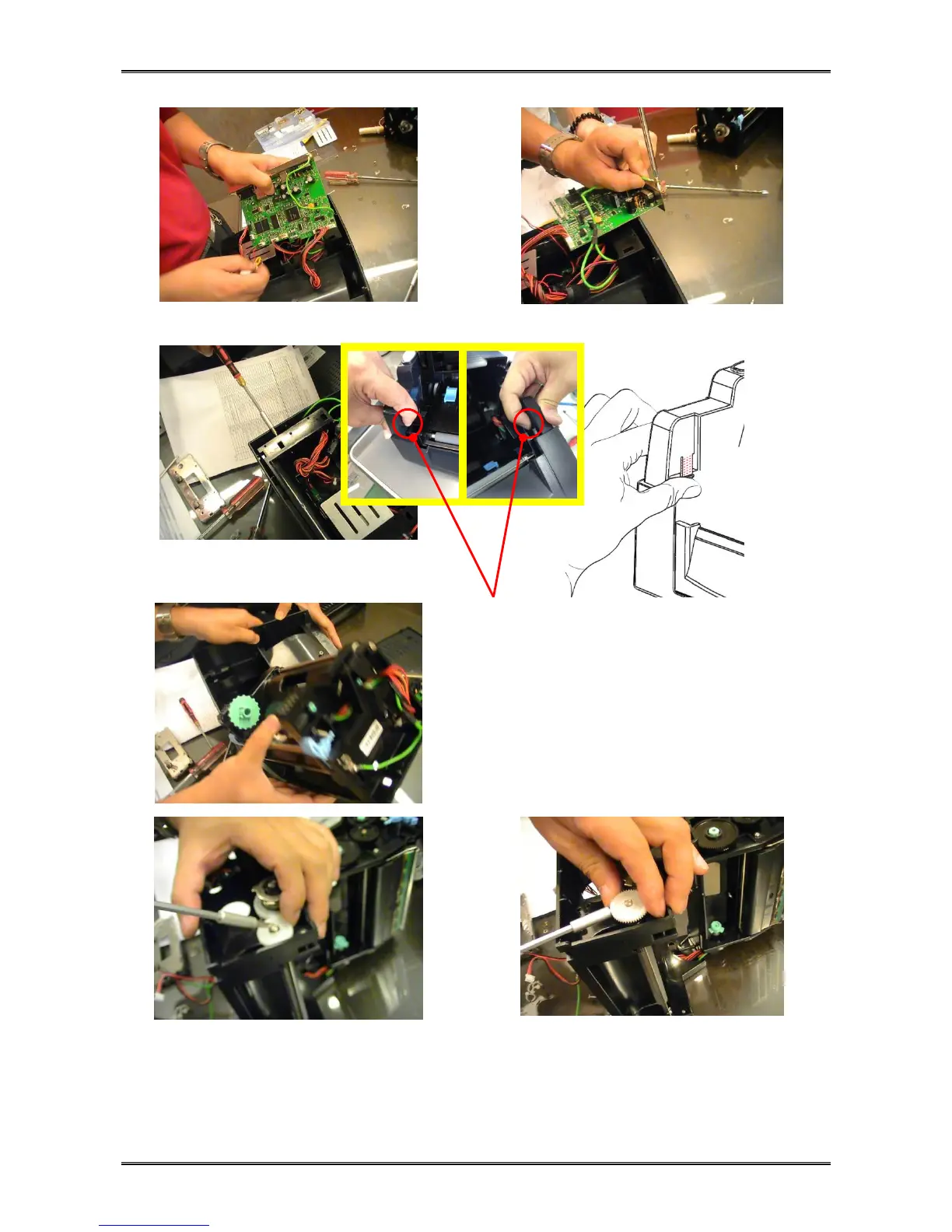

Unplug cables.
Unscrew and take off the ESD cable.
Lift up the mechanism*. A flat-head screw driver
may help to lever up.
Take out the e-ring by using a flat-head screw
driver.
Take out the gear.
*The mechanism is held by two hooks on the other side.
Press to release when lifting up the mechanism.
