15
Setup
1 Rewinder cover
When using the rewinder function, open the door by pulling the opening
handle on the front.
2 Media entry slit cover
When rewinding the printed batches of media, remove the Media Entry
Slit Cover and insert the media from the head unit through the slit. It
should then be rewound around the Rewinder Flange.
3 Rewinder paper guide (available as an option from your supplier)
When the printer is being used in Peel mode, this curved guide is not
needed. In batch mode, when rewinding printed media, this curved guide
must be installed to guide the media through the media slit.
4 Peeler rollers
The peeler rollers provide the pressure on the liner to cause the printer
to peel off labels one-by-one.
5 Rewinder flange
The liner or batches of printed media are wrapped around the central
core of the rewinder flange.

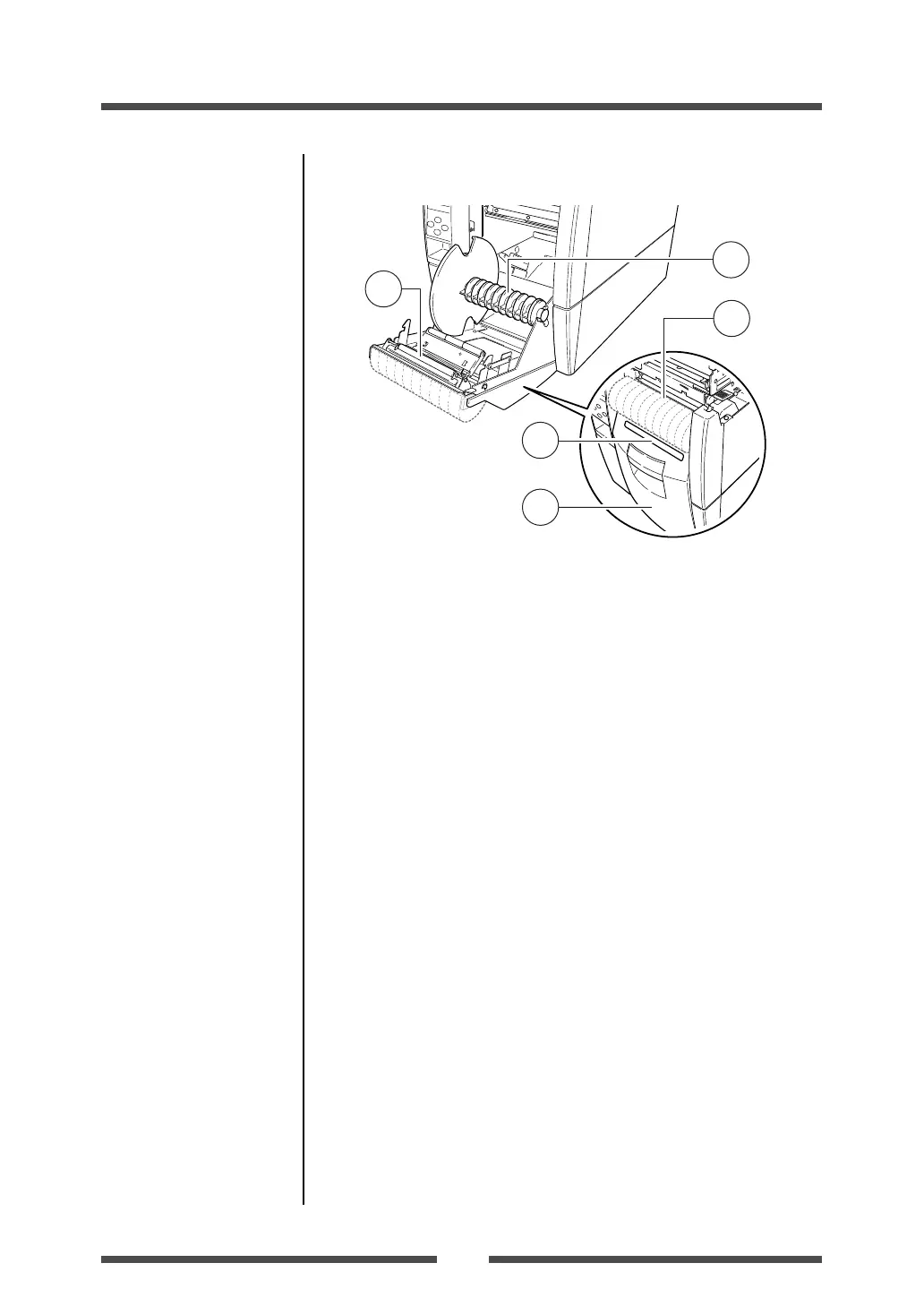

Part Names and Functions
[Model CL-S700R]
1
4
2
3
5
To Next Page
