11
Setup

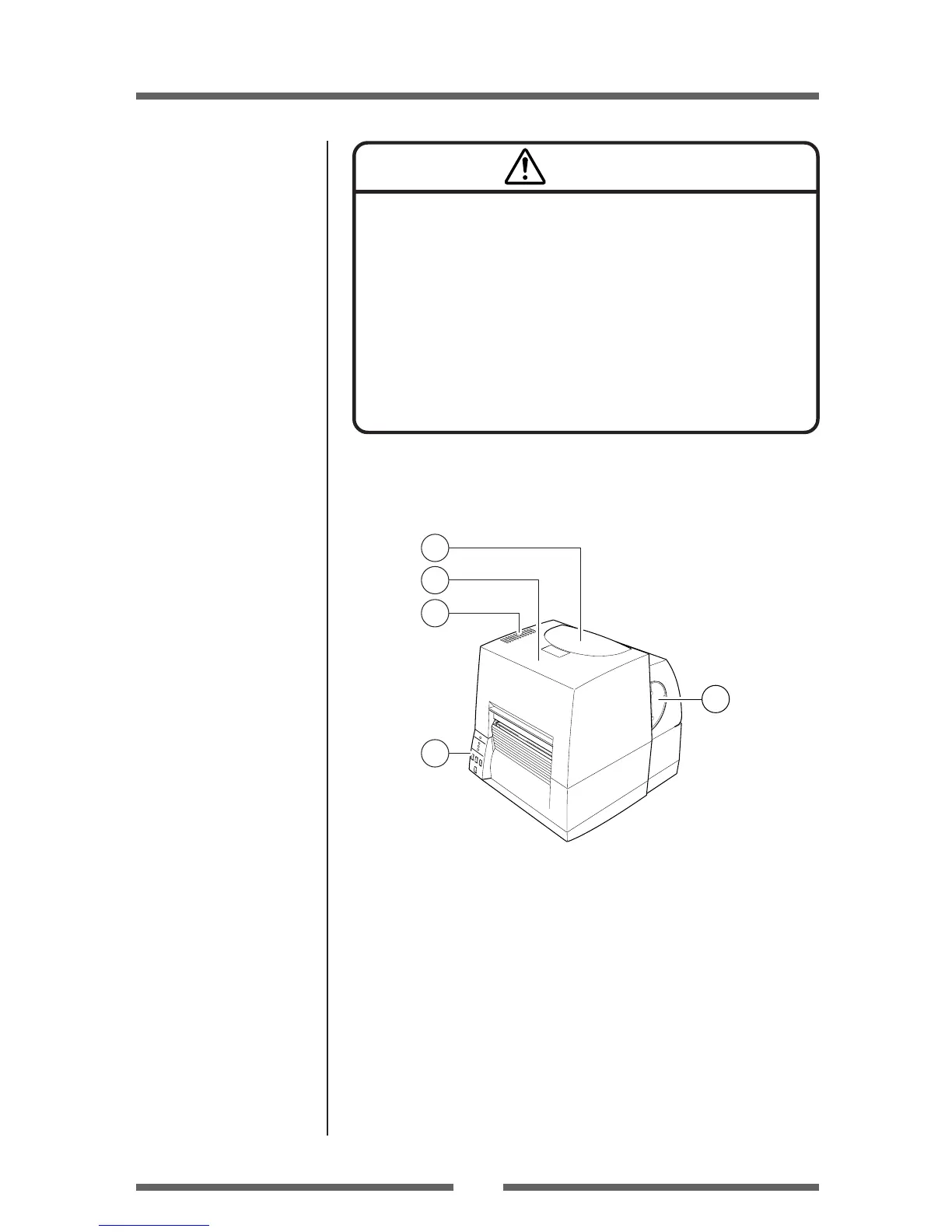

Part Names and Functions
Front View
3
1
2
4
5
Operation Panel (p.15)
1 Top cover
Is opened vertically to set media or ribbon.
2 Heat discharge vent
It allows warm air to vent from the printer.
Be sure not to block it with media etc.
3 Operation panel
This is used to make changes and adjustments to the printer and its
configuration.
4 Ribbon window
The amount of ribbon remaining can be checked through this window.
5 Media window
The amount of media remaining can be checked through this window.
• Be careful when moving or carrying the printer and when taking the
printer out of the carton. The printer may cause injury or property
damage if dropped. Be sure to grip the printer housing firmly when
taking it out of the carton. Do not grip the printer by the foam packing
material which may break, causing the printer to drop.
• When opening the cover, open it all the way. If only part way open,
the cover could slam shut, possibly causing injury.
• Be careful of the edge of the cover when the cover is opened. It may
cause injury or property damage.
• Be careful of the edges of the metal plates so injury or property
damage is possible.
Caution
To Next Page
