Chapter 3 Media and Ribbon
39
2 Configuration of Approved Media
(When Using Front Sensors)
The front sensors consist of the transparent and reflective type photosensors that detect the position of
the labels or tags:
Transparent type photosensor: Detects gaps between labels and notches of tags.
Reflective type photosensor: Detects black marks.
Note: Make sure that the adjustable sensor is set to 'AJSensOF.' (See Chapter 2.)

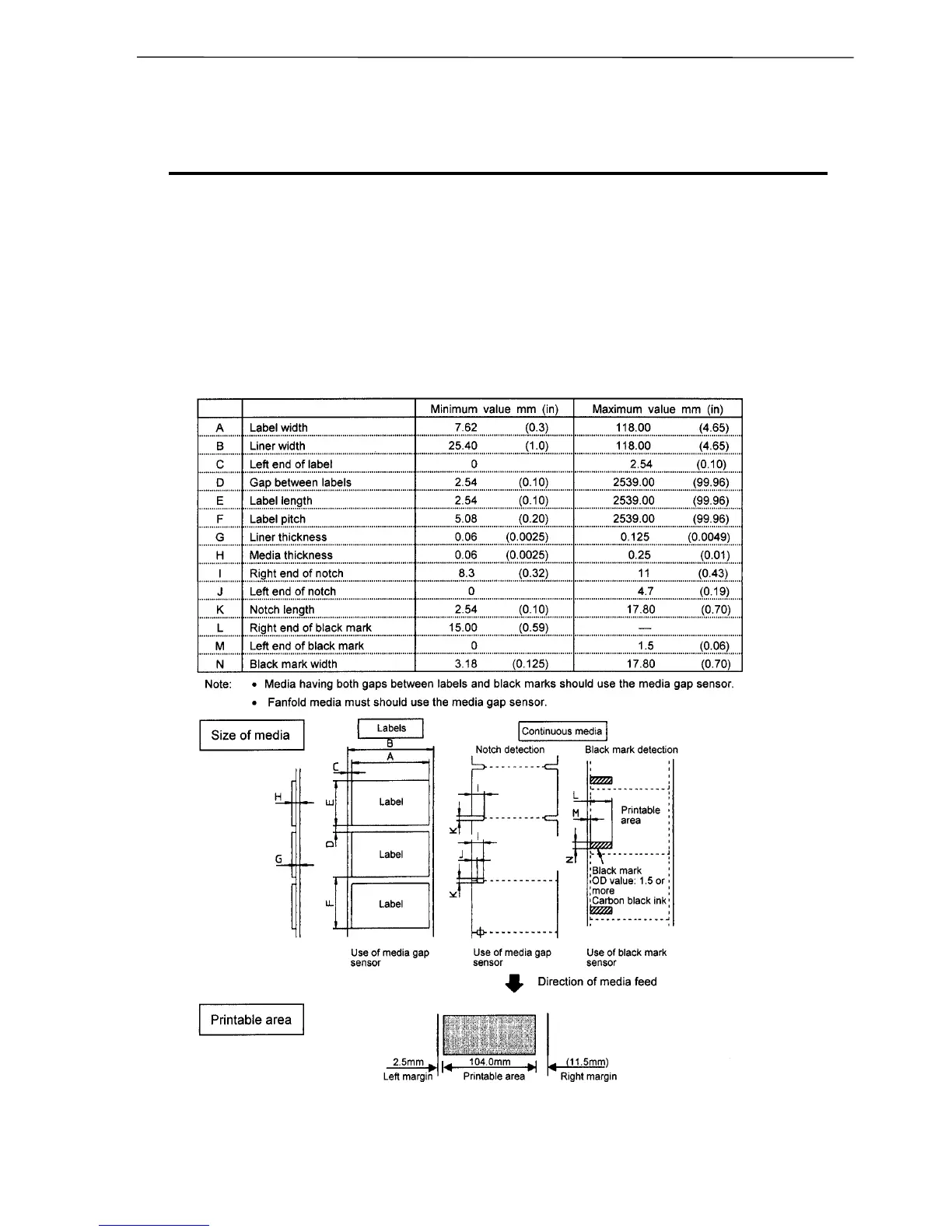

• Dimensions of media
For gaps between labels, notches of tags (labels) and black marks, see the size of media below.
2 Configuration of Approved Media (When Using Front Sensors)
