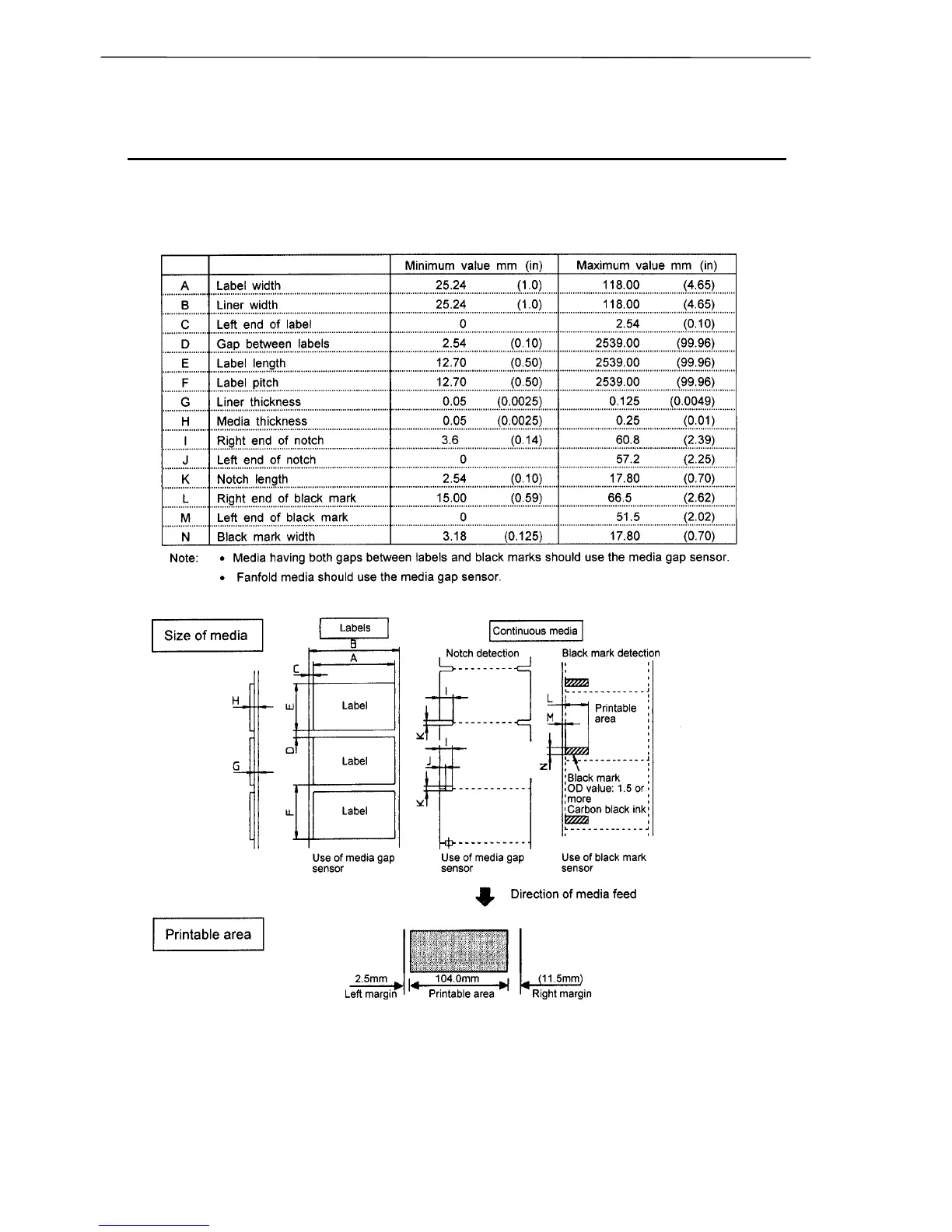

Chapter 3
Media and Ribbon
40
3
Configuration of
Approved Media
(When Using
Adjustable Sensor)
The adjustable sensor is the st
andard for CL
P-7201e but it is the optional for CLP-7202e.
Make sure that the adjustable sensor
is set to 'AJSensON.' (See Chapter 2.)
3 Configuration
of
Approved
M
edia (When Using Adjust
able Sensor)
40
