Citizen CMP-20 Installation Instructions Manual

3
PRINTER OVERVIEW
The Audit Printer can be used in any machine equipped with an EF Module or EF+ Module. This option
allows the variety of Audits and in some machine models, can print the Event or Error logs. Review the
machines owner manual for your changer to determine the audits and logs that are available for your
specific machine model.

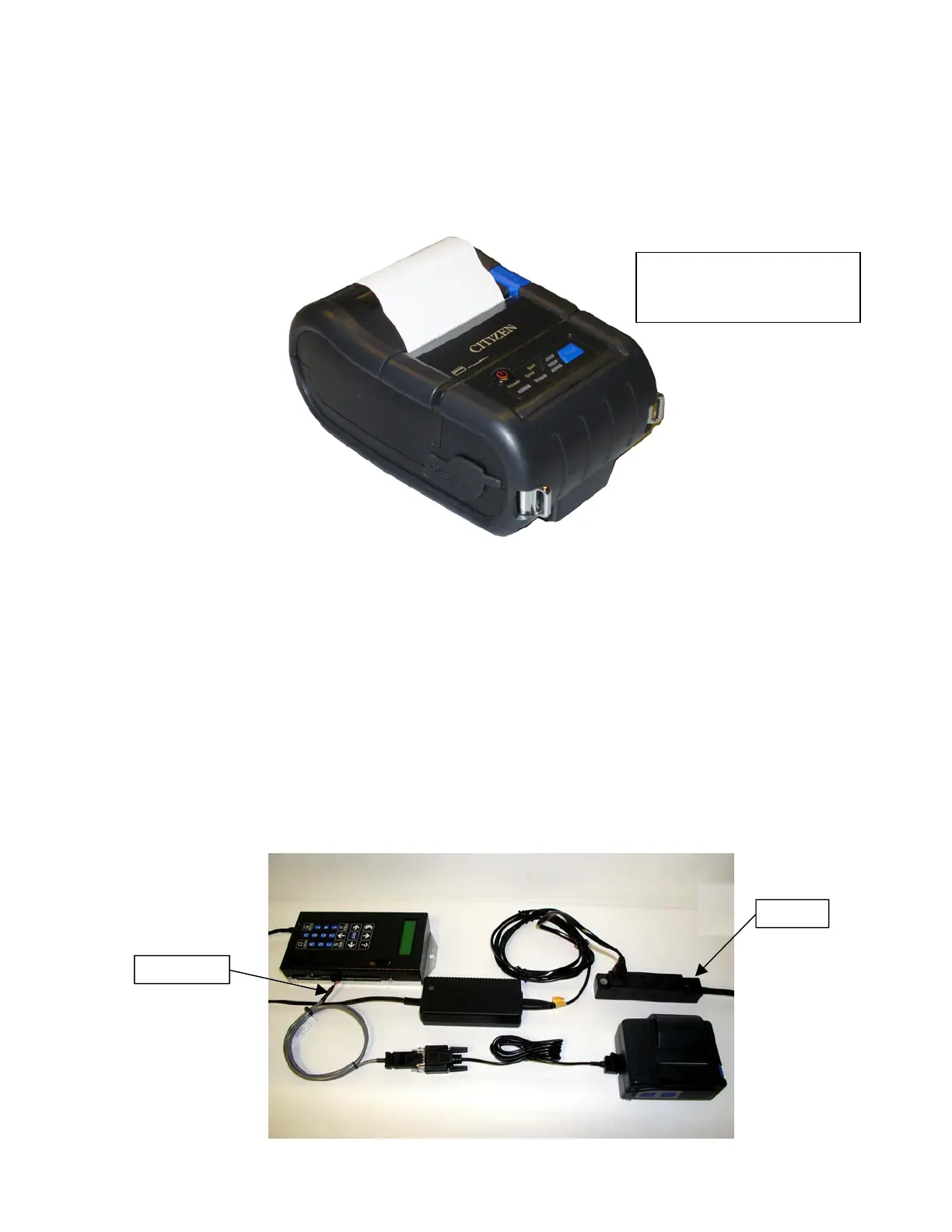

Citizen CMP-20
Portable Audit Printer
Locating The Printer In Your Machine
Find an open spot where you can easily access the printed receipt and where the printer will be stable. The
printer should be positioned to allow easy access to for loading paper. An optional mount is included in the
printer kit. This mount can be used to secure the printer onto existing machine studs (if available) or to
secure the printer connector to the printer. If the printer is moved around frequently we recommend using
the mount as a strain relief to prevent failure of the printer connector.
Connecting The Printer To An EF Module
See the illustration below for power and data cable connections.
MODULAR CHANGER WITH EF MODULE
Powe
r
Data Cable

Citizen CMP-20 Specifications

General

Brand	Citizen
Model	CMP-20
Category	Printer
Language	English
