11
ENGLISH
NOTE: If a VHF or UHF antenna
is used, set the TV/CATV
menu option to the "TV"
mode.
NOTE: If a VHF or UHF antenna
is used, set the TV/CATV
menu option to the "TV"
mode.
NOTE: If a VHF or UHF antenna
is used, set the TV/CATV
menu option to the "TV"
mode.
75 ohm Coaxial Cable (supplied)
Splitter
75 ohm Input
75/300 ohm outputs
(not supplied)
Splitter
75 ohm Input
300 ohm outputs
(not supplied)
TV with single 75 ohm
VHF/UHF antenna input
TV with 300 ohm UHF
and 75 ohm VHF
antenna inputs
TV with 300 ohm UHF
and 300 ohm VHF
antenna inputs

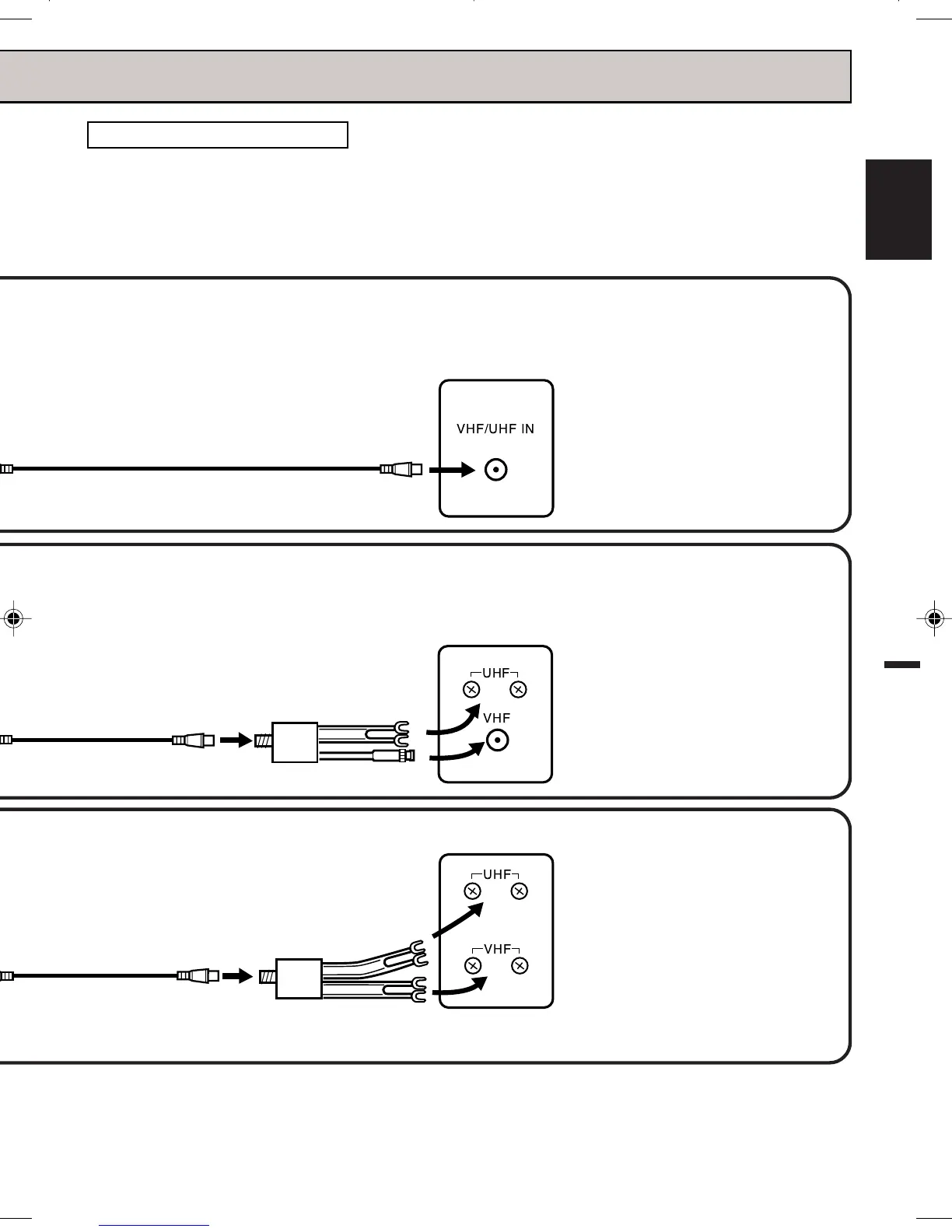

VCR TO TV CONNECTION
After you have connected the antenna to the VCR, you must connect the VCR to the TV.
Below are 3 common methods of connecting your VCR to a TV. Find the type of TV you are using and follow the
connection diagram.
This VCR has a single 75 ohm output for connection to a TV. If your TV has separate VHF and UHF antenna inputs
(numbers 2 and 3 below), use a splitter to connect the VCR to the TV for VHF and UHF reception.
TV
TV
TV
75 ohm Coaxial Cable
(supplied)
75 ohm Coaxial Cable
(supplied)
UHF
VHF
T
UHF
VHF
UT
N
4F70301A E P08-13 22/12/04, 15:4111
