FRONT

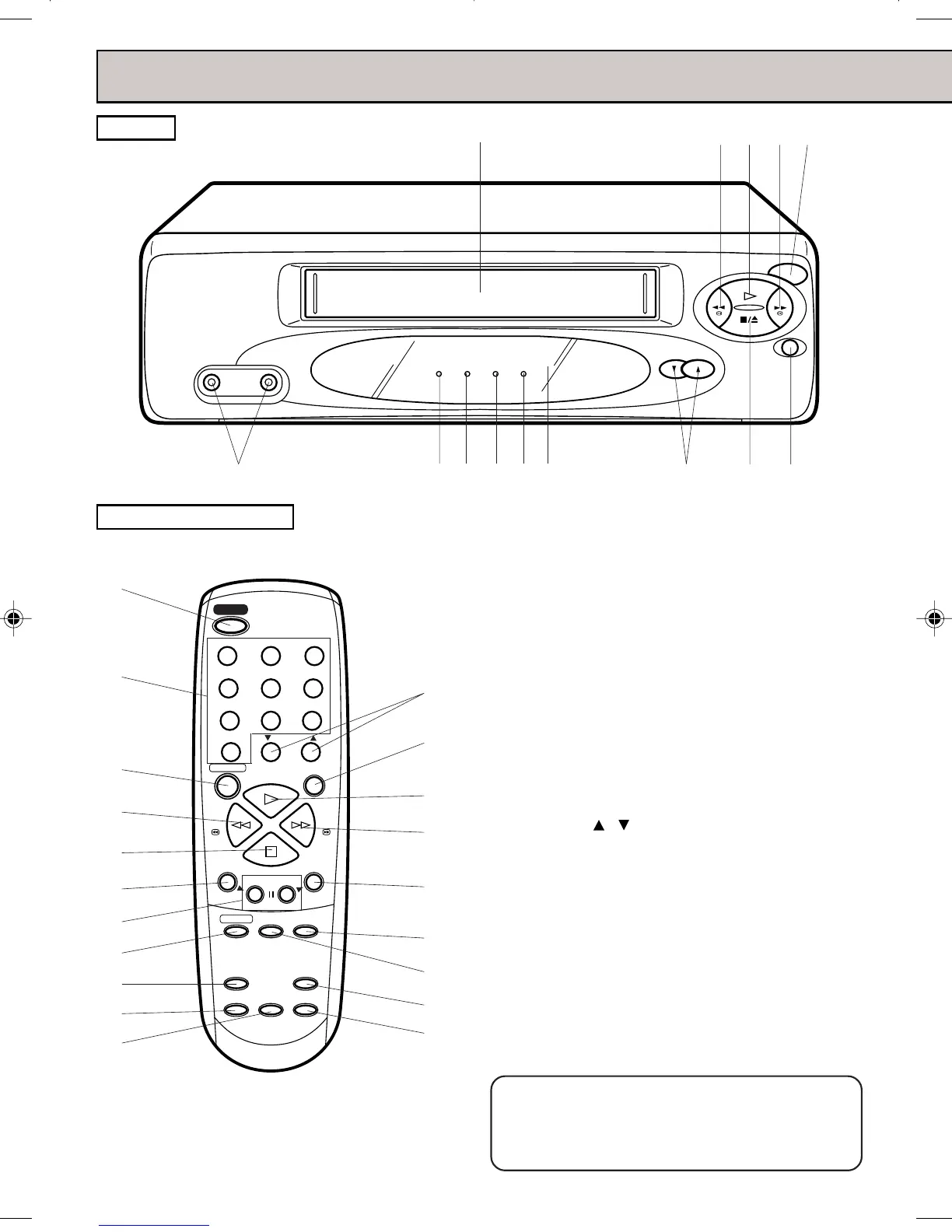

LOCATION OF CONTROLS
REMOTE CONTROL
1. Cassette Loading Slot - To insert or remove a
video tape.
2. REW button - In the STOP mode, this button
rapidly winds the tape backwards. In the PLAY
mode, this button activates Reverse Search.
3. PLAY button - Press to play a prerecorded tape.
4. F. FWD button - In the STOP mode, this button rap-
idly winds the tape forward. In the PLAY mode, this
button activates Forward Search.
5. POWER button - Turns the VCR power on and off.
6. REC/OTR button - Press once to start normal
recording. Additional presses activate One-touch
Timer Recording.
7. STOP/EJECT button - Press once to stop the tape
in any mode. Press again to eject the tape.
8. CHANNEL
/ buttons - Used to select a
channel for viewing or recording.
9. Remote Sensor - Signals from the Remote Control
are received here.
10. POWER indicator - Lights up when the power is
turned on.
11. REC indicator - Lights up during recording.
12. T. REC indicator - Lights when the unit is in the
Timer Record mode.
13. TV/VCR indicator - Lights up when the TV/VCR
selector button is selected to the VCR mode.
14.
AUDIO/VIDEO IN Jacks - Audio and video signal
cables from an external source can be connected here.
TV/VCR SPEED
MENU
REW
REC/OTR
PAUSE/STILL
CHANNEL
F.FWD
SET
ENTER
STOP
PLAY
123
456
7
0
89
–
TRACKING
+
CALL
CANCEL
COUNTER
RESET
AUTO
TRACKING
TIMER REC
INPUT
SELECT
POWER
5
15
6
2
16
17
18
19
20
21
22
8
23
3
4
24
25
26
27
28
POWER
REC/OTR
CHANNEL
POWERTV/VCR
AUDIO IN
VIDEO IN
RECT.REC
PLAY
REW F.FWD
STOP/EJECT
1
13 12 11 10
9
14
876
2345
If you purchase a universal remote control from your local
retailer, please contact the remote manufacturer for the
required programming code.
ATTENTION:
