15. Direct Channel Selection buttons (0-9) - Allows
direct access to any channel.
16. STOP button - Press to stop the tape.
17. MENU button - Press to display the on-screen menu
function.
18. TRACKING SET + / – buttons - During playback, they
are used to adjust tracking manually. Used to set or
adjust in the menu mode.
19. TIMER REC button - Used to set the VCR to start
recording at a preset time.
20. COUNTER RESET button - Resets the Real Time
Tape Counter to 00:00:00.
21. TV/VCR selector button - Switches between TV
and VCR.
22. SPEED (SP/SLP) selector button - Sets the tape
speed for recording.
23. PAUSE/STILL button - During recording, this
button temporarily stops the tape. The "
" will
appear on the screen. During playback, it stops the
tape and displays a still image on the TV screen.
24. ENTER button - Used to enter the information in the
menu mode.
25. CANCEL button - Used to clear the selected timer
recording program.
26. AUTO TRACKING button - Allows automatic adjust-
ment of tracking to minimize picture noise during play-
back.
27. INPUT SELECT button - Switches the program for
viewing between the VCR and external input sources.
28. CALL button - Displays the present time/day of the
week, channel, counter, speed selection and VCR
mode on the TV screen.

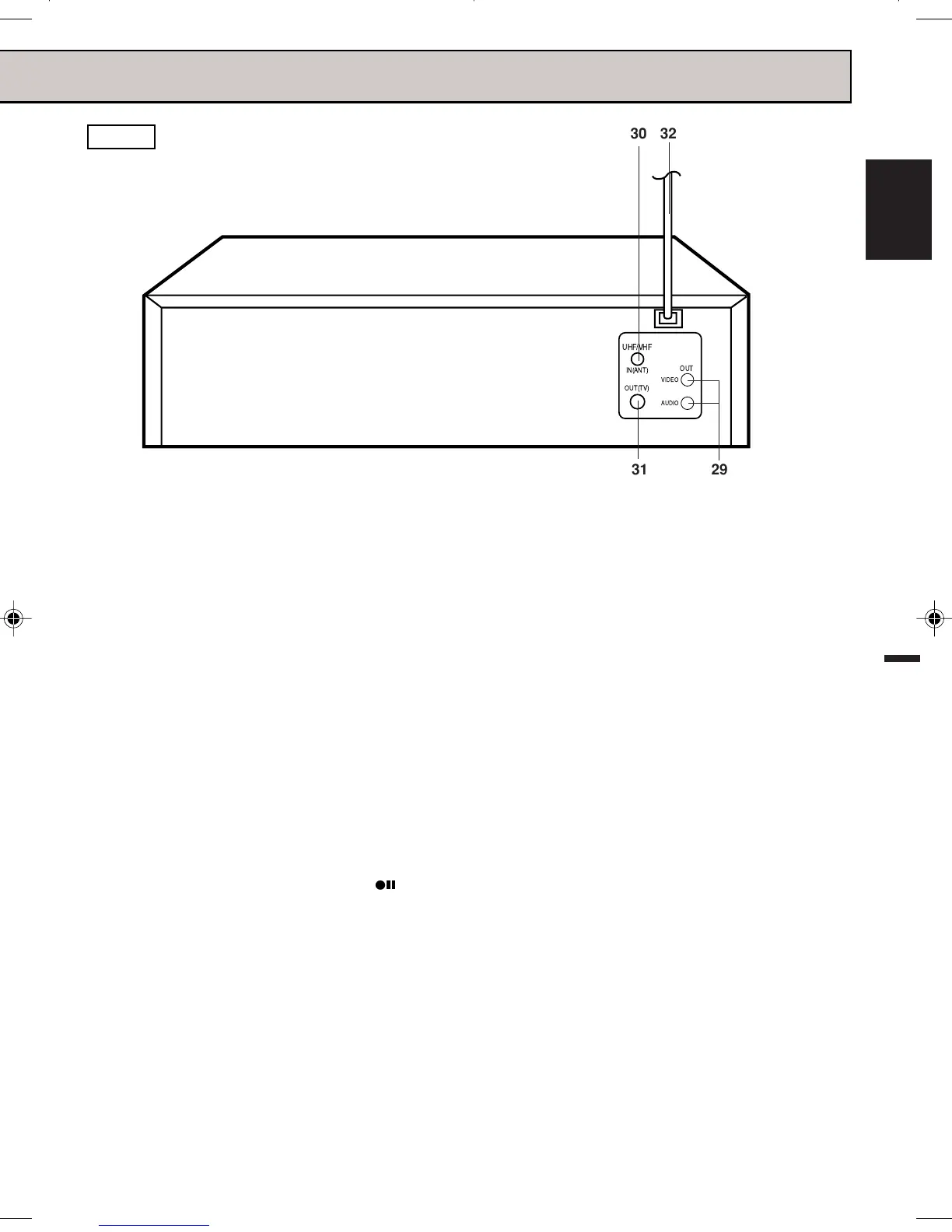

29. AUDIO/VIDEO OUT Jacks - Use to output audio and
video signal to a TV, amplifier or VCR.
30. UHF/VHF IN (ANT) Jack - Connect a UHF/VHF
antenna or CATV cable to this jack.
31. UHF/VHF OUT (TV) Jack - Use to output UHF/VHF
or CATV signal to a TV.
32. AC Power Cord - Connect to a 120V 60Hz outlet.
