14
When you connect your VCR to a Stereo Component System, you can view the picture from the VCR while
enjoying powerful sound from your audio system.
NOTE: Sound will be monaural.
If your TV has AUDIO IN and VIDEO IN jacks, you can connect your VCR to them to receive a higher quality
picture and sound. If you have a stereo, you can connect a stereo amplifier to enjoy powerful sound.

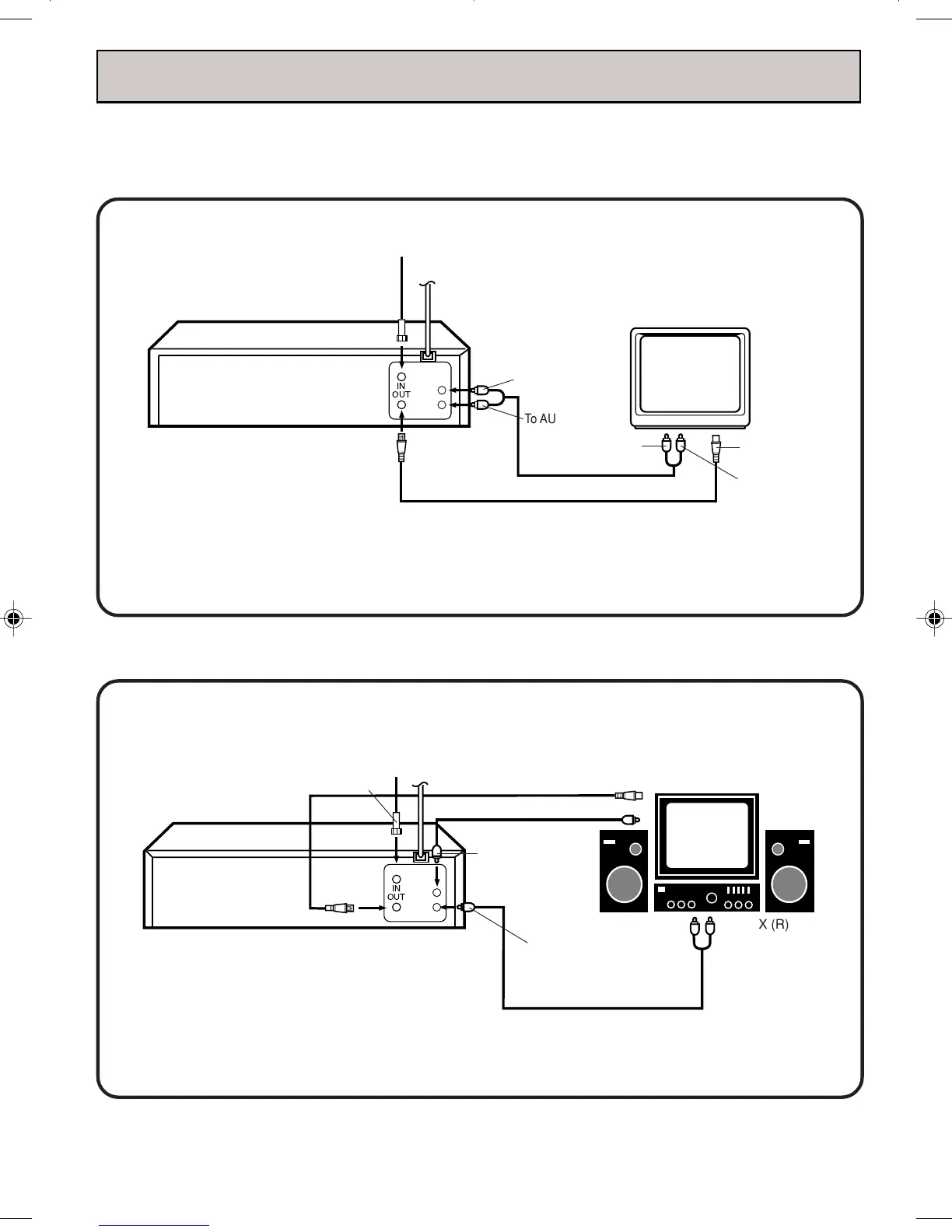

AUDIO/VIDEO CONNECTIONS
AUDIO/VIDEO CONNECTION
1. Connect the VIDEO OUT jack on the VCR to the VIDEO IN jack on the TV.
2. Connect the AUDIO OUT jacks on the VCR to the AUDIO IN jacks on the TV.
3. Set the VIDEO/TV selector of your TV to "VIDEO".
STEREO AMPLIFIER CONNECTIONS
Connect the AUDIO OUT jacks on the VCR to the AUX IN jacks on the stereo amplifier.
OUT
IN
To AUDIO (R) OUT
To VIDEO OUT
AUDIO/VIDEO Cable (not supplied)
To VIDEO IN
To AUDIO IN
To ANT IN
To UHF/VHF OUT
TV
VCR
To UHF/VHF IN
From ANTENNA/CATV system
OUT
IN
To AUX (R) IN
To AUX (L) IN
To AUDIO OUT
To VIDEO OUT
To VIDEO IN
To ANT IN
To UHF/VHF OUT
TV
AUDIO Cable (not supplied)
VCR
To UHF/VHF IN
From ANTENNA/CATV system
VIDEO Cable (not supplied)
