ENGINE
197

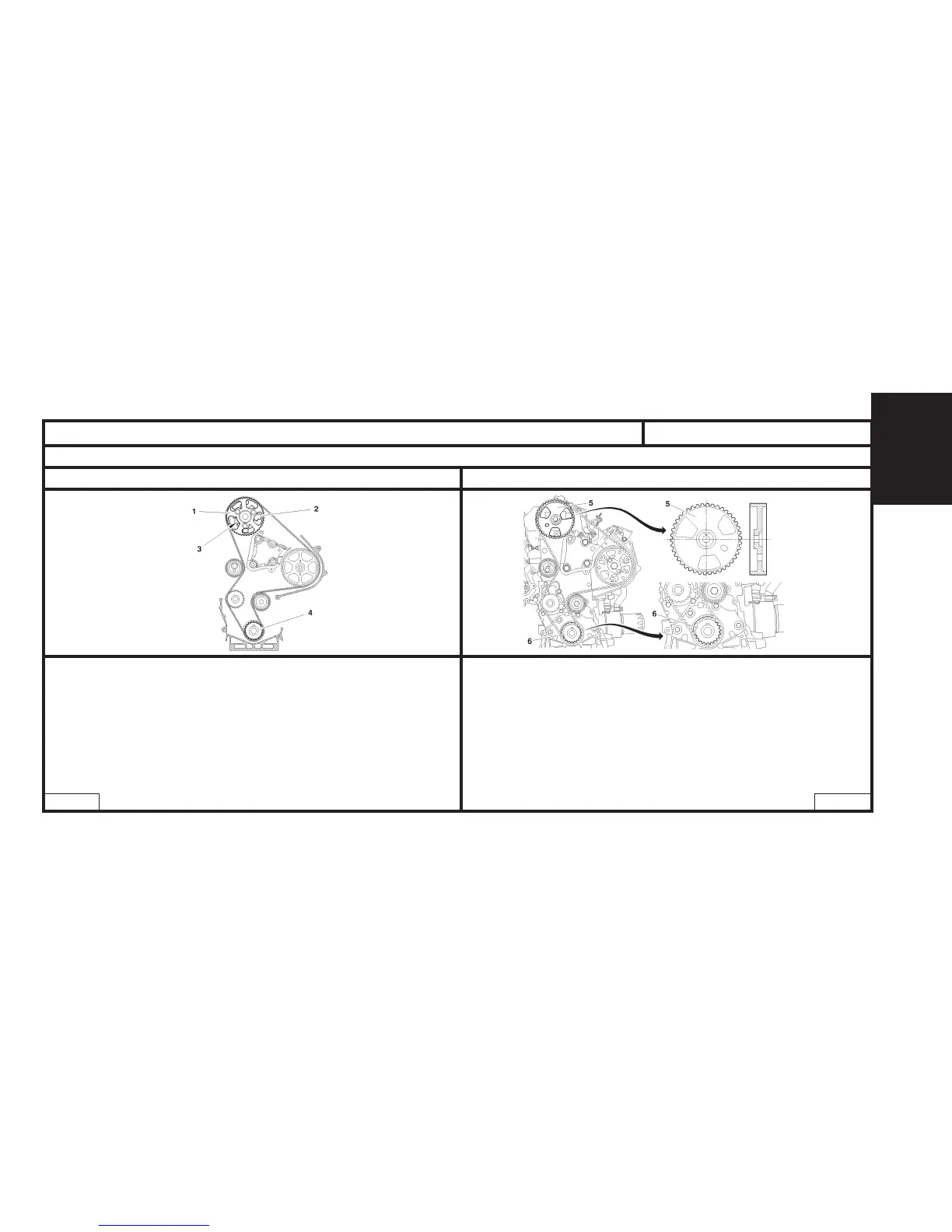

(1) ) «Idler» camshaft pulley
(2) Target for cylinder reference sensor.
(3) Camshaft hub.
(4) «Fixed» crankshaft pinion.
The determining of the tension of the timing belt is done on the cam-
shaft pulley (1).
The new timing on 8 valve engines DW10TD (RHY) and DW10 ATED
(RHS-RHZ) requires the following components :
«Idler» crankshaft pinion
«Fixed» camshaft pulley.
(5) «Fixed» camshaft pulley (pulley with integral cylinder reference
sensor target).
(6) «Idler» crankshaft pinion (with increased width keyway groove).
The determining of the tension of the timing belt is done on the crank-
shaft pinion (6).
SPECIAL FEATURES: CHECKING AND SETTING THE VALVE TIMING
Engines : RHY - RHZ N° RPO 9128 #
OLD FITTING # N° RPO 9127 NEW FITTING N° RPO 9128 #
B1EP176D B1EP177D
XSARA - XSARA PICASSO
