87

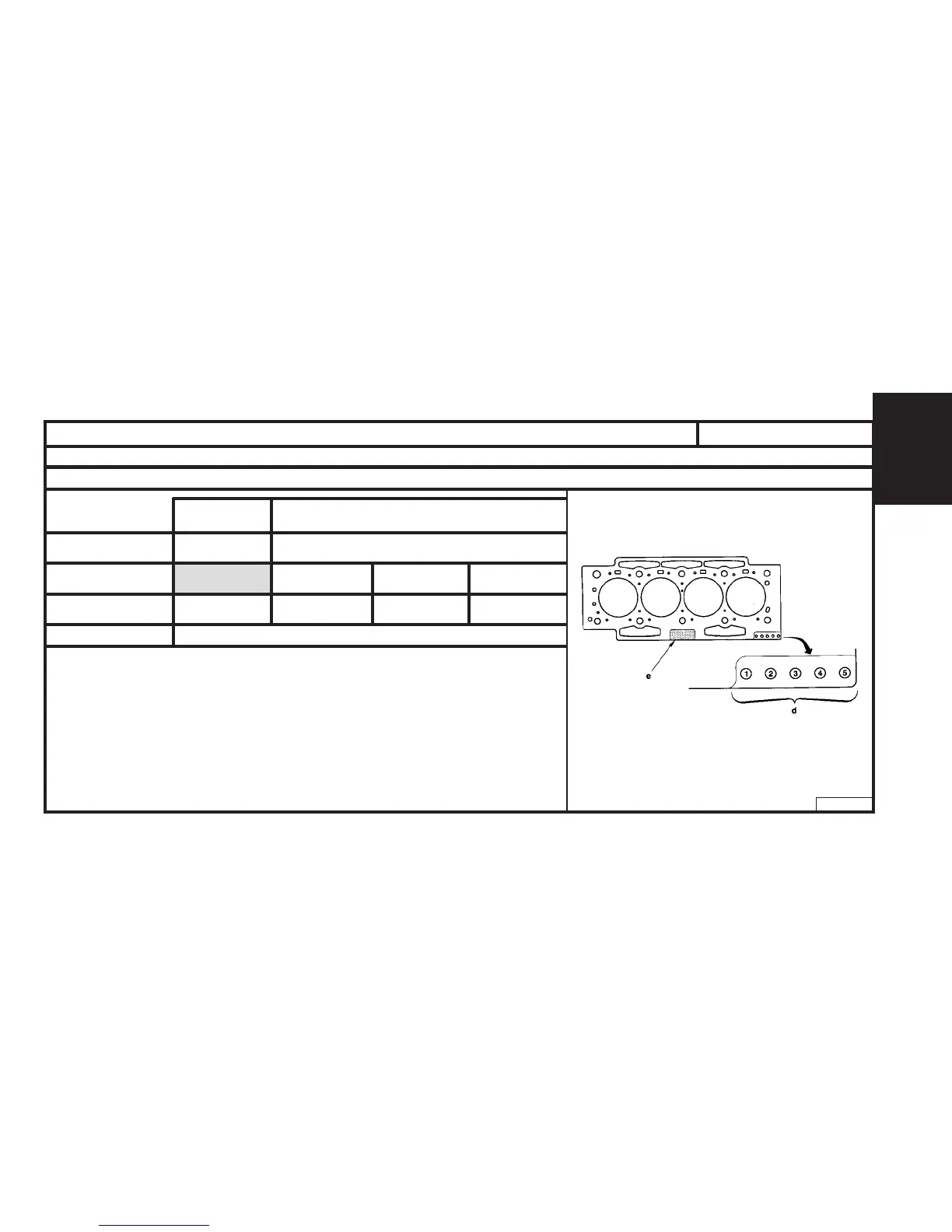

ENGINE
XSARA
PICASSO
CYLINDER HEAD
Engine : 6FZ
Identification of the cylinder head gasket
B1DP183D
Nominal
dimension
Repair dimension
2 – 4 – 5
4 – 5
R1
R2
R3
1
1.1
0.8
Gasket thickness
(mm)
Supplier
MEILLOR
Marking zone
«e»
Marking zone
«d»
1.3
Marking
« d »
Marking zone
« e »
Marking zone
NOTE :
3 layer metallic gasket.
