G
Interface specifications

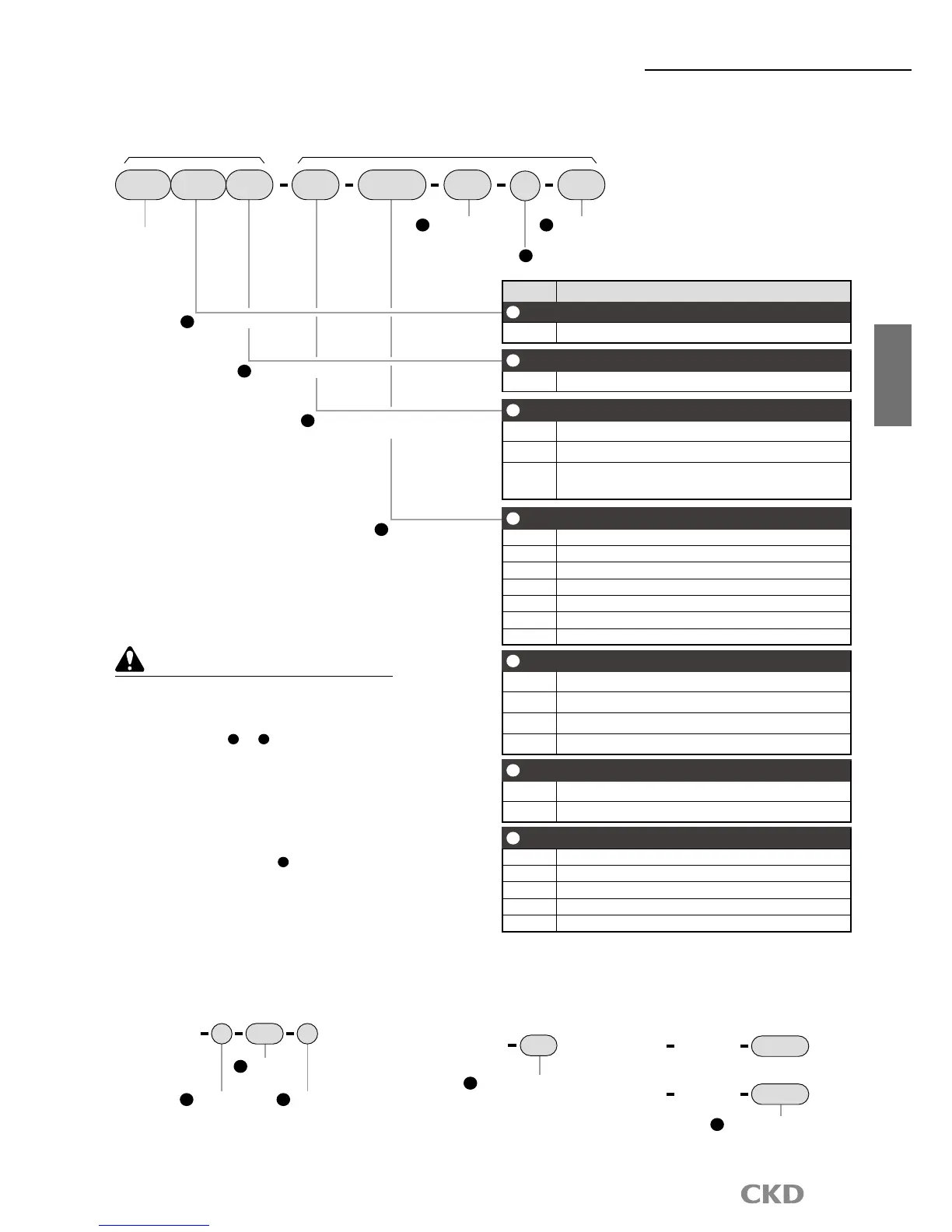

Set model no.
(actuator, driver, cable)
*Custom orders are not CE, UL/cUL, RoHS certified. Consult with CKD for details.
Discrete actuator body model no.
Discrete driver model no.
Symbol Descriptions
A
Size (max. torque)
10W 1000N•m
B
Driver type
TH TH type driver
C
Mounting base (can not be used with a dowel hole P2, P3.)
Blank Standard (without mounting base)
B With blackened mounting base
BS
Electroless nickel plating surface treatment mounting base
Use with body surface treatment S.
E
Dowel hole
Blank Standard (without dowel hole)
P1 1 on top
P2 1 on bottom
P3
1 each on both top and bottom
F
Body surface treatment
Blank
Standard (Rotating section-blackening fixed section outside circumference-paint)
S
Rotating section: electroless nickel plating, fixed section: nitrating
A
Size (max. torque)
B
Driver type
F
Body surface treatment
Note 2
Note 1:
The cable is a flexible cable. Refer to page 35 for
dimensions of a cable.
Note 2:
Select surface treatment and mounting base surface
treatment with
C
and
E
. By selecting the optional
electroless nickel plating treatment, you can expect
higher rust resistance compared to standard
specifications.
Note 3:
"P2" and "P3" cannot be selected if "B" with
blackened mounting base or "BS" electroless
nickel plating surface treatment mounting
base is designated for
C
Mounting base.
Note 4: The dowel hole section may not have a
surface treatment.
E
Dowel hole
Note 3, Note 4
( )
Discrete cable model no.
D
Cable length
DM02 2m
DM04 4m (standard length)
DM06 6m
DM08 8m
DM10 10m
DM15 15m
DM20 20m
G
Interface specifications
G
Interface specifications
U0 Parallel I/O (NPN specifications)
U1
Parallel I/O (PNP specications)(Coming soon)
U2 CC-Link
U3
PROFIBUS-DP
U4 DeviceNet
