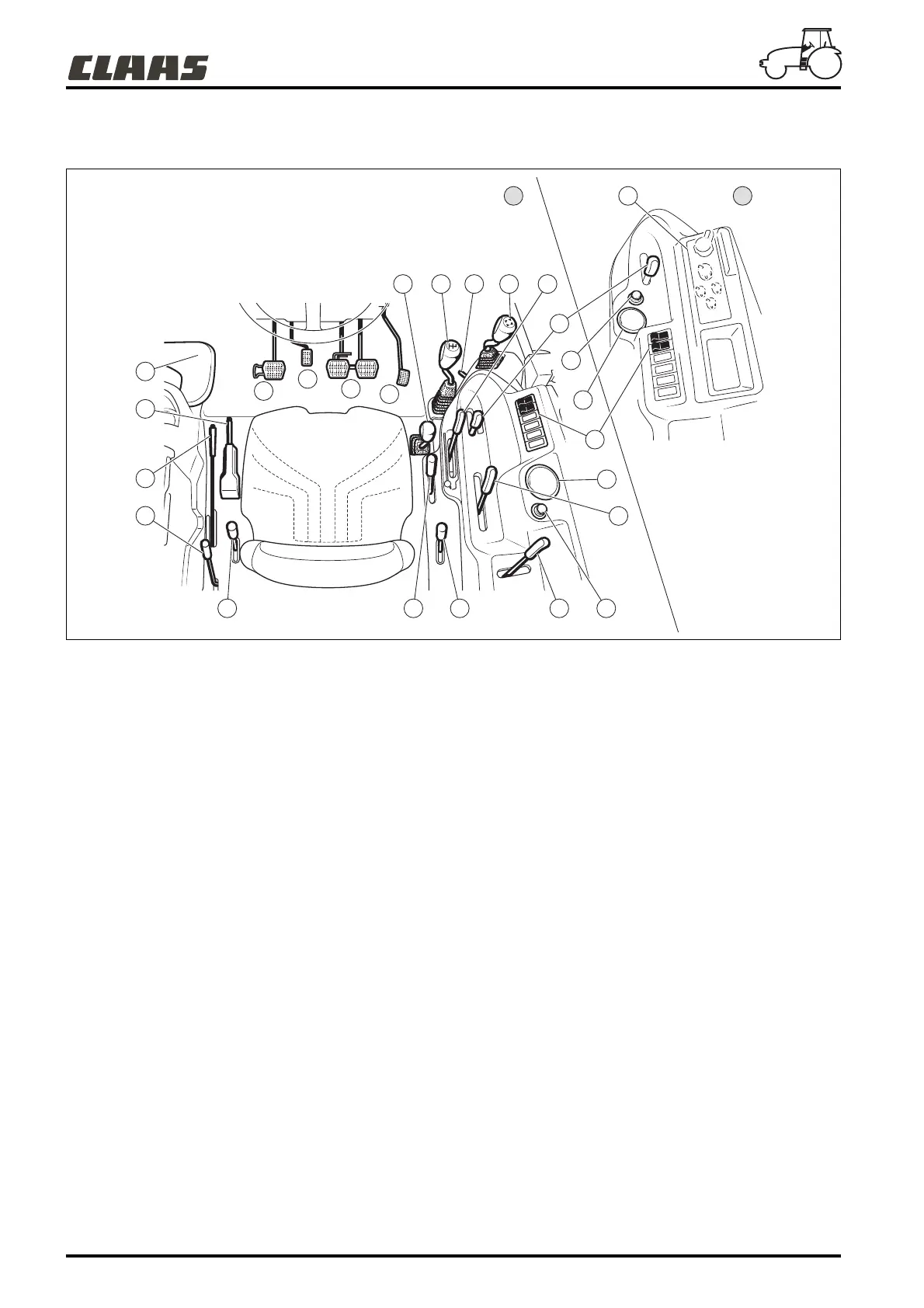

CONTROLS AND DRIVING POSITION
761bsn01
Installation A - With "Tracto Control" hydraulic lift.
Installation
B - With "TCE 9 " electrohydraulic lift.
1- Hand brake lever.
2- Passenger seat.
3- Range lever.
4- Gear lever/impulse contactor "hydraulic doubler"*.
5- Cross control lever locking control.
6- Auxiliary distributor cross control.
7- Lift control lever (position control).
8- Accelerator lever.
9- Contactor plate ( 4 driving wheels, front power take-
off...).
10 - Lift control lever (force control).
11 - Ashtray.
12 - Cigarette lighter.
13 - Hitch hook release lever.
14 - Power take-off clutch release lever (hydraulic
engagement version ).
15 - Auxiliary distributor control lever.
16 - Power take-off rate selection lever.
17 - Crawler range selection lever.
18 - Power take-off clutch release lever (mechanical
engagement version).
19 - TCE 9 Electronic tracto-control lift.
20 - Clutch pedal.
21 - Rear live axle differential claw pedal.
22 - Brake pedals.
23 - Accelerator pedal.
2
4 5 6
A B
3
1
18
17
16 15 14 13 12
11
11
19
10
9
8
12
7
20
21
22
23
* *Concerns the gearbox with "TWINSHIFT" hydraulic doubler.
