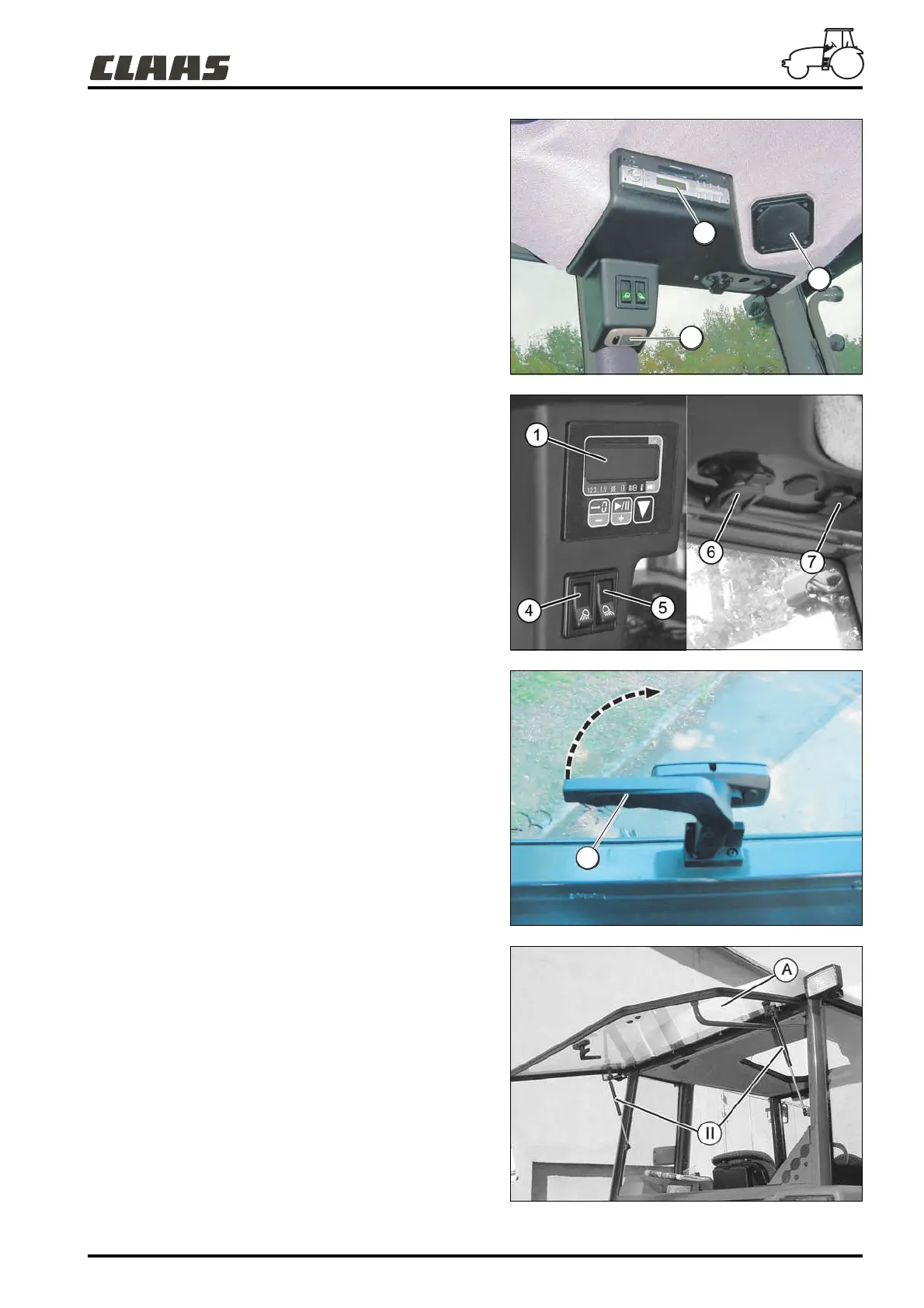

CONTROLS AND ACCESSORIES IN
THE CAB ROOF
RIGHT-HAND SIDE
1- On board computer (see chapter I "On board computer").
2- Radio.
3- Loudspeaker.
4- Front working lights switch.
5- Rear working lights switch.
6- ISO tool electrical connection, 25 amps.
7- Event counter connection for the on-board computer.
8- Overhead light.
RADIO
The radio (2) and loudspeakers (3) are fitted in the cab roof.
EQUIPMENT PROVISION
These models have provision for installing a radio (loudspeaker
wire, aerial wire and connection, power to the radio and roof
aerial).
Note: for the installation of a radio, consult an authorised
CLAAS agent.
CONTROLS AND ACCESSORIES
NATURAL VENTILATION
REAR OPENING WINDOW (A)
Opening
- Turn handle (I) 90 ° in the direction of the arrow to unlock it.
- Push the rear panel until it opens. The window is held in the
open position by the stabilisers
(II) .
Closure
Pull the rear panel down against the cab frame, and lock the
handle
(I) .
