Claas LEXION 540 C Repair Manual Supplement

00 0290 380 0 - ERG RHB LEXION 600-510 - 01/09 17
4 Drives
4.1 Drive belts / drive chains
82707
91458

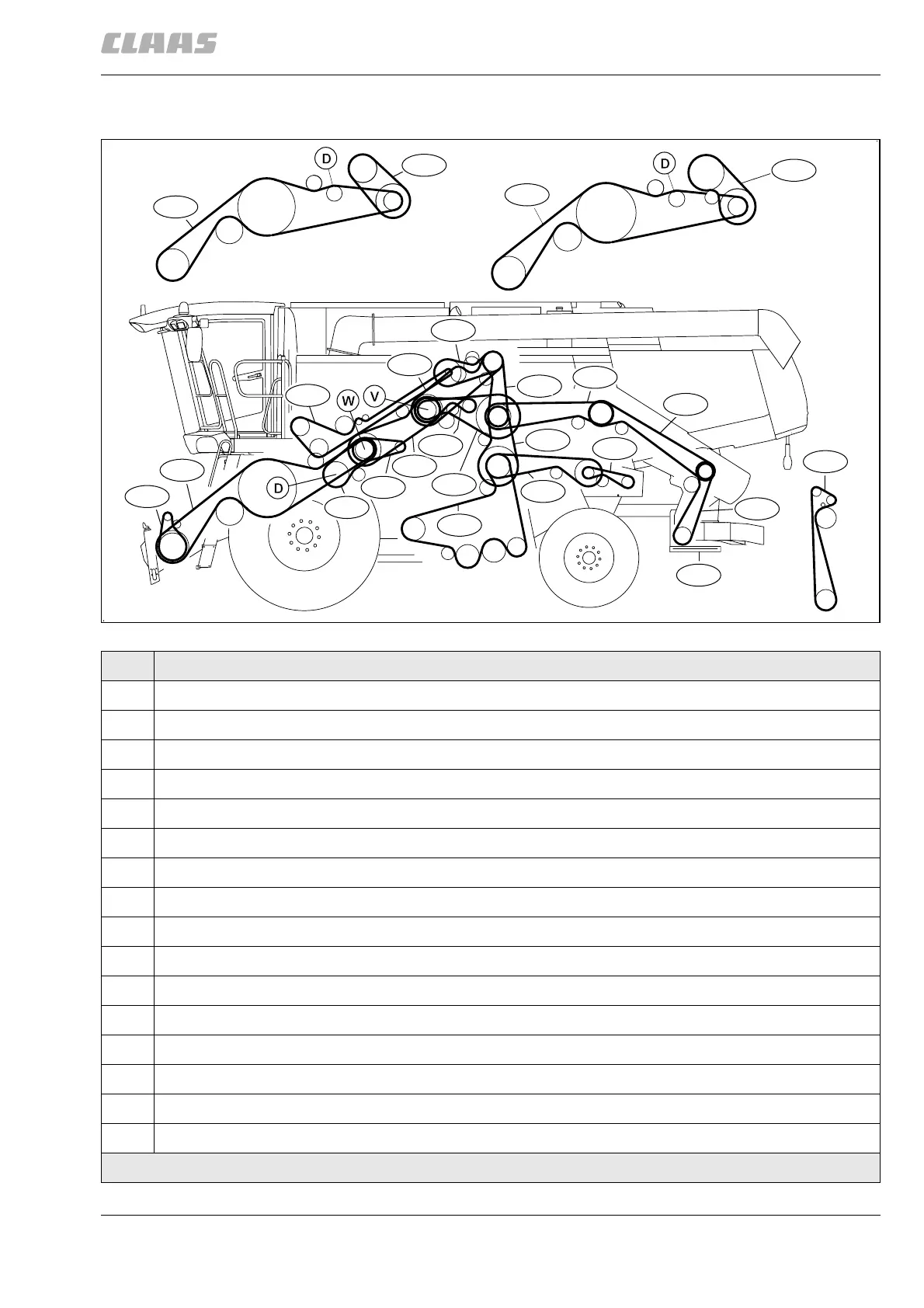

4.1.3 Drive diagram, left side (LEXION 580 with standard cleaning system)
3639
3
R3
R4
R1
R2
R10
R9
R17
R12
R13
R14
R6
R7
R8
R18
R5
R20
R19
R20R23
R24
R16
R15
K11
R26
R3
Designation
R1 Feed rake conveyor suction blower drive
R2 Front attachment drive, step 2 (without variable-speed drive)
R3 Front attachment drive, step 3 (with variable-speed drive or step drive)
R4 Front attachment variable-speed drive, step 2
R5 Impeller drive
R6 Reel hydraulic pump drive
R7 Front attachment drive, step 1
R8 Hydraulic pump drive for straw spreader, chaff spreader, radial spreader
R9 Threshing mechanism drive
R10 Grain tank unloading drive, step 1
K11 Grain tank unloading drive, step 2
R12 Straw chopper drive, step 1
R13 Straw chopper drive, step 2
R14 Straw chopper drive, step 3
R17 Straw spreader drive
R18 Sieve pan drive, step 1
D = Threshing drum, V = Accelerator, W = Impeller, R = Drive belt, K = Drive chains

Claas LEXION 540 C Specifications

General

Brand	Claas
Model	LEXION 540 C
Category	Farm Equipment
Language	English
